• Model NO.：CPCD75
• Fuel：Diesel
• Load center：600mm
• Lift height：3000~5000mm
• Condition：New
• Mast Height：4290mm
• Max. Lifting Height：3000mm
• Free Lift：200mm
• Fork Size：70*1220*150mm
• Wheel Number(Front/Rear))：4,2
• Max.Traveling Speed：26,30km,H
• Lifting Speed：450,480mm,S
• Max. Draw Bar：62kn
• Max. Gradeablity：25,20%
• Machine Weight：10100kg
• Transport Package：Nude Package
• Specification：3745*1995*2510mm
• Trademark：HELI
• Origin：China
• HS Code：8428909090
• Production Capacity：100units,Month

Basic Info.

Model NO. CPCD75 Fuel Diesel Load center 600mm Lift height 3000~5000mm Condition New Mast Height 4290mm Max. Lifting Height 3000mm Free Lift 200mm Fork Size 70*1220*150mm Wheel Number(Front/Rear)) 4/2 Max.Traveling Speed 26/30km/H Lifting Speed 450/480mm/S Max. Draw Bar 62kn Max. Gradeablity 25/20% Machine Weight 10100kg Transport Package Nude Package Specification 3745*1995*2510mm Trademark HELI Origin China HS Code 8428909090 Production Capacity 100units/Month

Product Description

HELI 7.5on Diesel Forklift CPCD75Product Features
HELI specialized transmission box and drive axle with more than 20 years market verification are Chinese top forklift truck transmission system.
Load sensing and dual pump confluence hydraulic system technology not only improves working efficiency but also effectively reduces truck energy consumption.
HELI forklift truck specialized electric control technology which is co-developed with engine manufacturer makes engine performance better.
Air cleaner with safety filter and electronic pressure alarm not only ensures engine air intake amount but also improve truck safety, reliability and durability.
Split type radiator improves cooling performance and truck reliability.
Standard powered braking system offers quick-respond brake and effective brake; high capacity bag type accumulator with good performance improves truck reliability.

Working place:
HELI 8-10t diesel counterbalanced truck is widely used for packed goods loading, unloading and handling in factory, warehouse, station, dock, port and so on. The truck can also be used for bulk goods and unpacked good loading, unloading and handing after assembled with other attachments.

Main Specifications

Model	Unit	CPCD50	CPCD60	CPCD70	CPCD75	CPCD85	CPCD100
Engine type		Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Operation model		Sit-on type	Sit-on type	Sit-on type	Sit-on type	Sit-on type	Sit-on type
Rated capacity	kg	5000	6000	7000	7500	8000	10000
Load center	mm	600	600	600	600	600	600
Lift height	mm	3000	3000	3000	3000	3000	3000
Fork size	mm	55*1220*150	60*1220*150	65*1220*150	70*1220*175	70*1220*175	80*1220*175

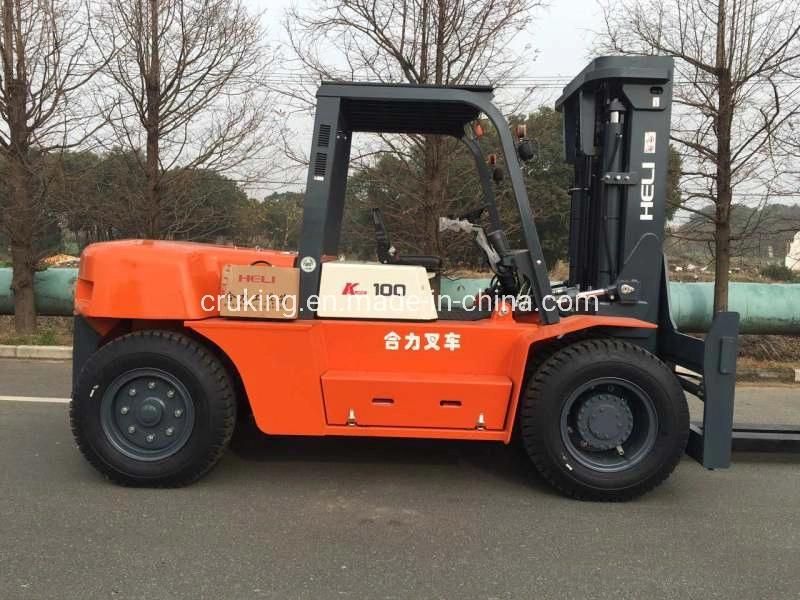

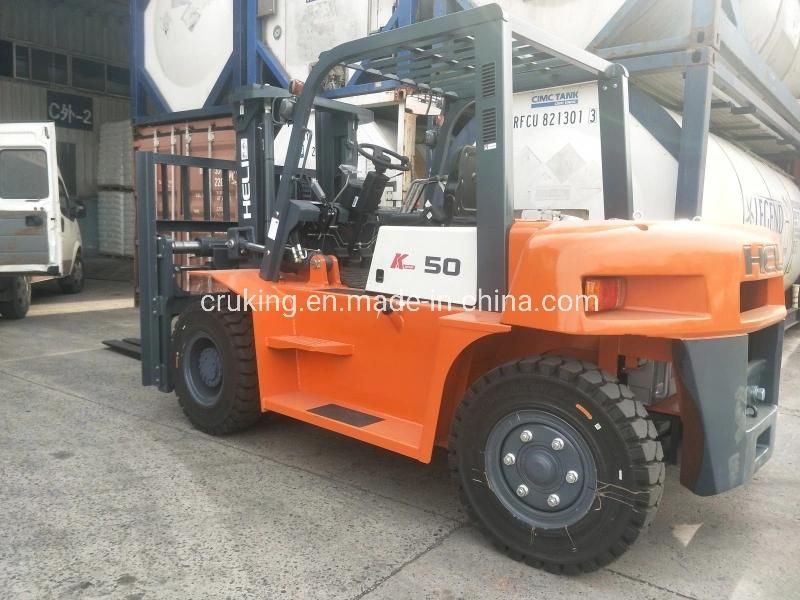

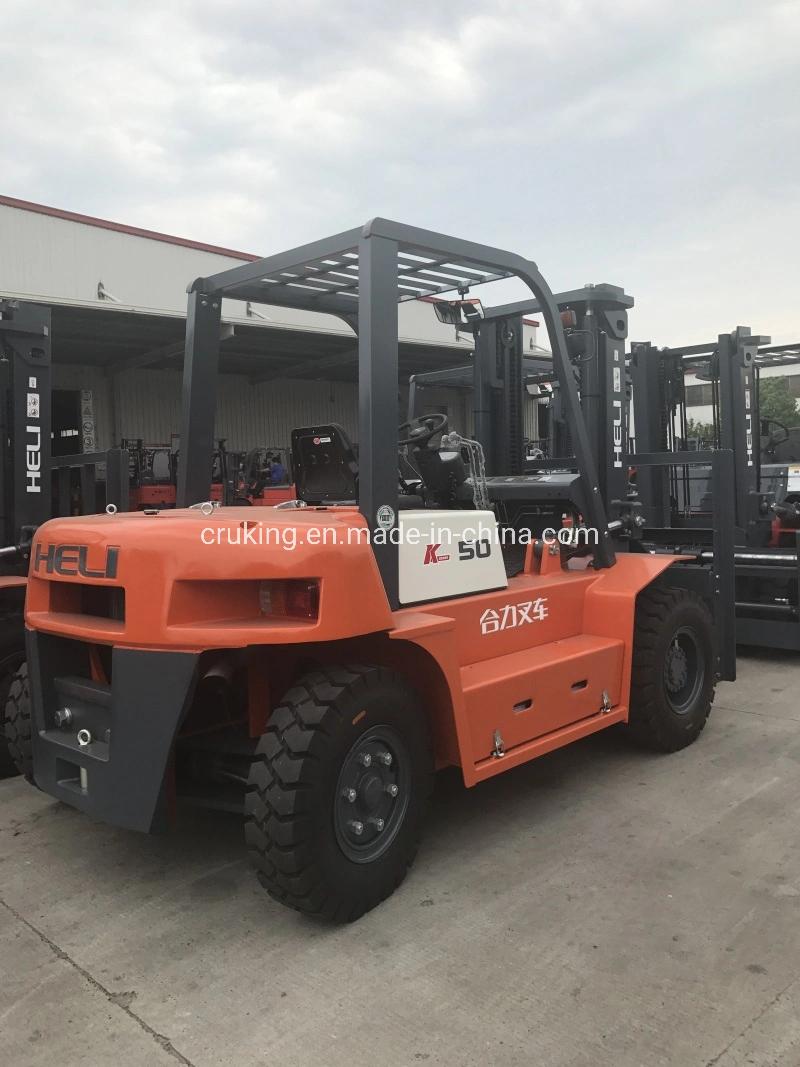

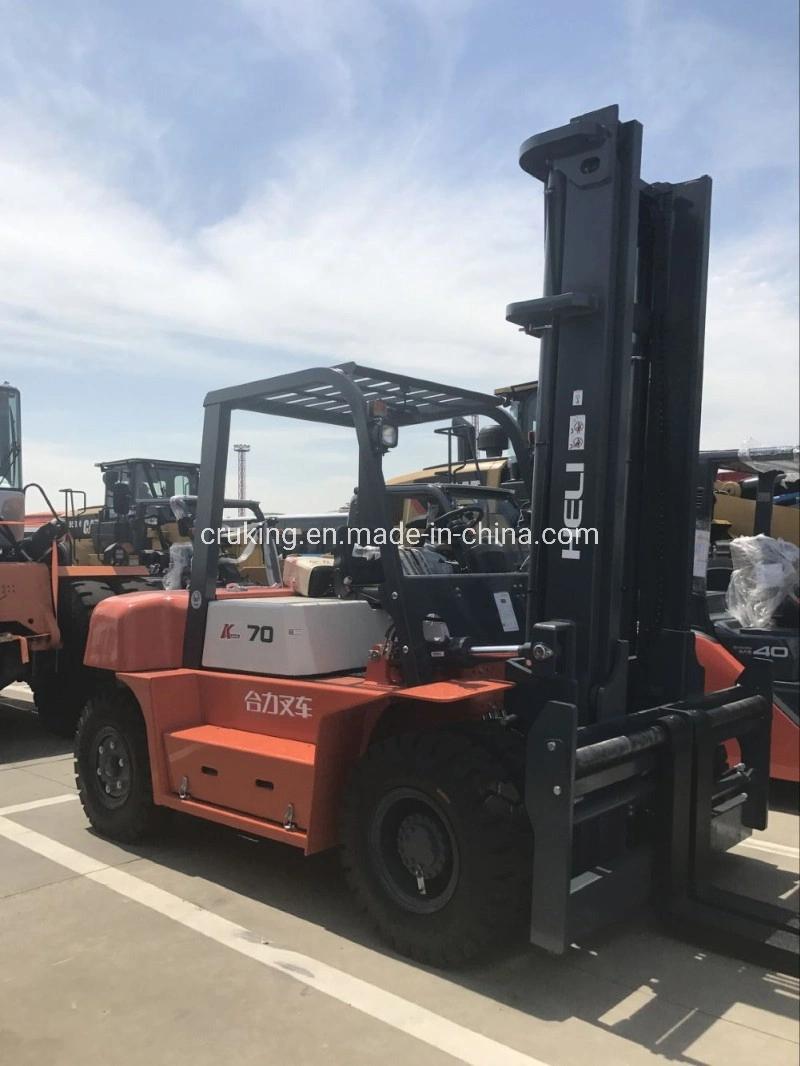

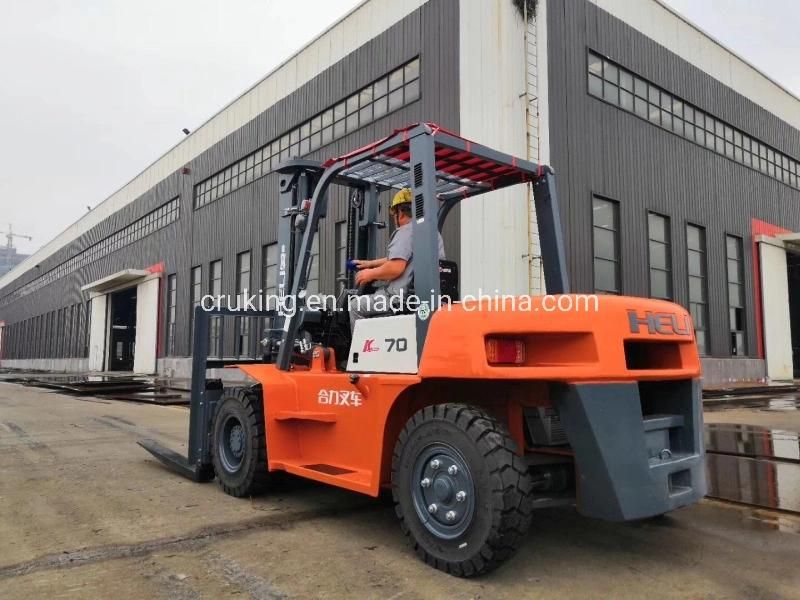

Detailed Photos
