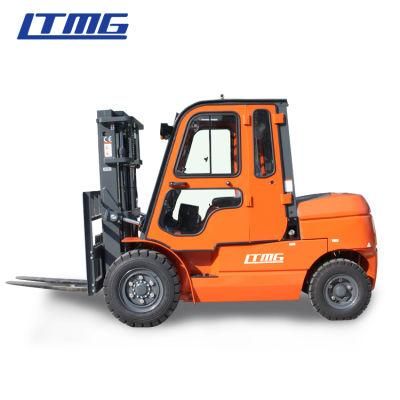

Ltmg Forklift Dealer 3ton 4ton 5ton 6ton Forklift Machine 6 Tons Forklift with Enclosed Cabin, AC and Heater
Xiamen LTMG Machinery Co., Ltd.- Cab Location：Not Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：5ton
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：FD50
- Lift height：3000~5000mm
- Condition：New
- Weight：6880
- Wheelbase：2100mm
- Mast Tilt Angle：6,12
- Ground Clearance(Bottom of Mast)：150
- Fork Overhang (Wheel Center to Fork Face：579
- Turning Radius (Outside)：2910
- Max.Gradeability：20
- Free Lift：205mm
- Optional：Solid Tires, Side Shift, Three Stage Mast, etc
- Overhead Guard Height：2340mm
- Transport Package：Nude Packing
- Specification：3245*1430*2270mm,3560*2010*2500mm
- Trademark：LTMG
- Origin：China
- HS Code：84272090
- Production Capacity：1000 Units,Year
Description
The specification of 5ton diesel forkliftModel FD50 Power Type Diesel Rated Capacity kg 5000 Load Centre mm 500 Lift Height mm 3000 Fork Size(L×W×T ) mm 1070×150×50 Mast Tilt Angle(F/R) Deg 6°/12° Front Overhang (Wheel center to fork face) mm 579 Ground Clearance(Bottom of mast) mm 150 Length to face of fork(Without fork) mm 3260 Overall Width mm 1460 Mast Lowered Height mm 2270 Mast Extended Height(With backrest) mm 4165 Overhead Guard Height mm 2340 Turning Radius (outside) mm 2910 Min. insecting aisle mm Travel Speed(Full load) km/h 25 Lifting Speed(Full load) mm/s 380 Max.Gradeability (No load/Full load) % 20 Front Tire mm 300-15-18PR Rear Tire mm 7.00-12-12PR Wheelbase mm 2100 Service weight kg 6700 Battery(Voltage/Capacity) V/Ah (12/80) x 2 Engine Model 6BG1-02 Manufacture ISUZU Rated output/r.p.m. kw 82.4/2000 Rated torque/r.p.m. N·m 416.8/1500 No.of Cylinder 6 Bore×Stroke mm 105×125 Displacement cc 6494 Fuel Tank Capacity L 130 Transmission Type Hydraulic Stage FWD/RVS 2/1
Product Features
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.
Optional Configuration
Blue light
Tool Kit

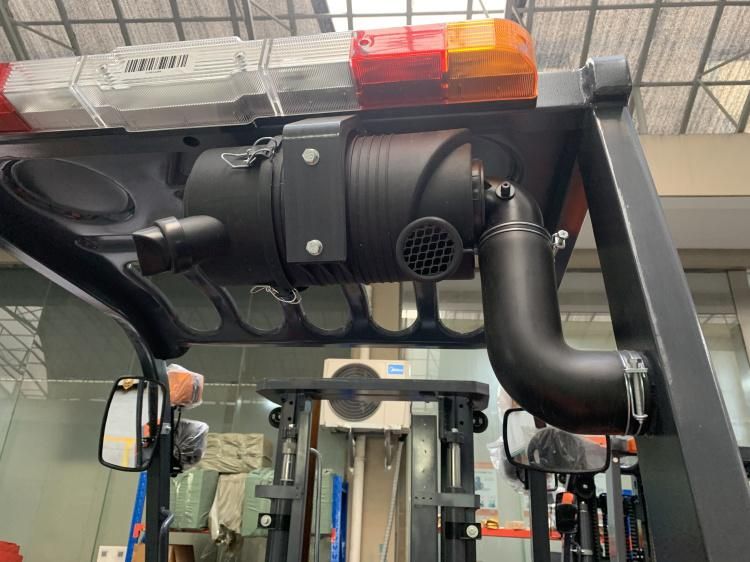

Double Air Filter(Special for the small tonnage forklift )
Packaging & Shipping
Our Factory
LTMG Customers
Product Features
1.Safe:

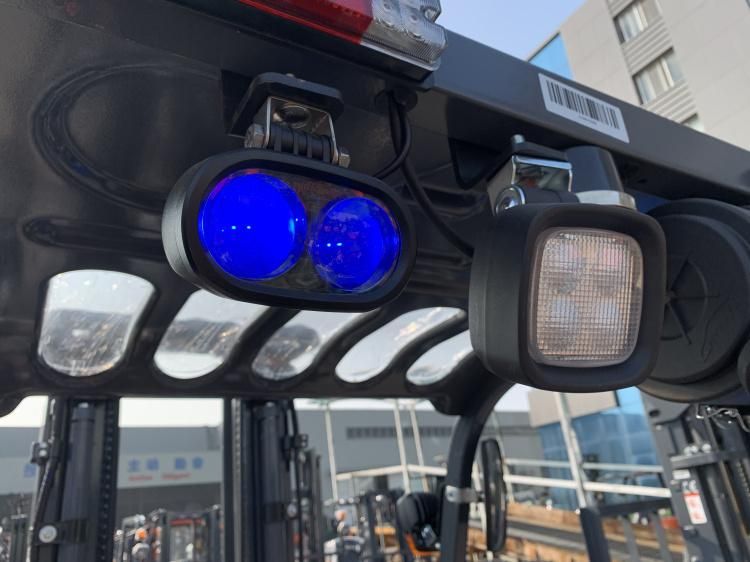

LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.
Optional Configuration
Blue light
Tool Kit
Double Air Filter(Special for the small tonnage forklift )
Packaging & Shipping
Our Factory
LTMG Customers
After-sale service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
