• Model NO.：ES16-16RA
• Condition：New

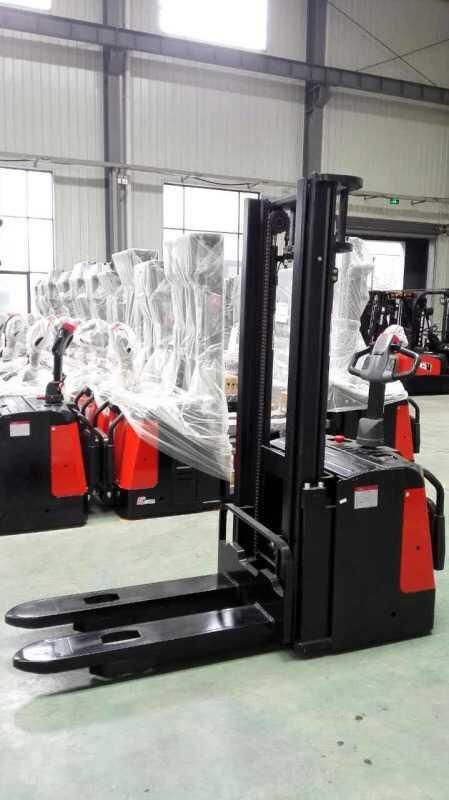

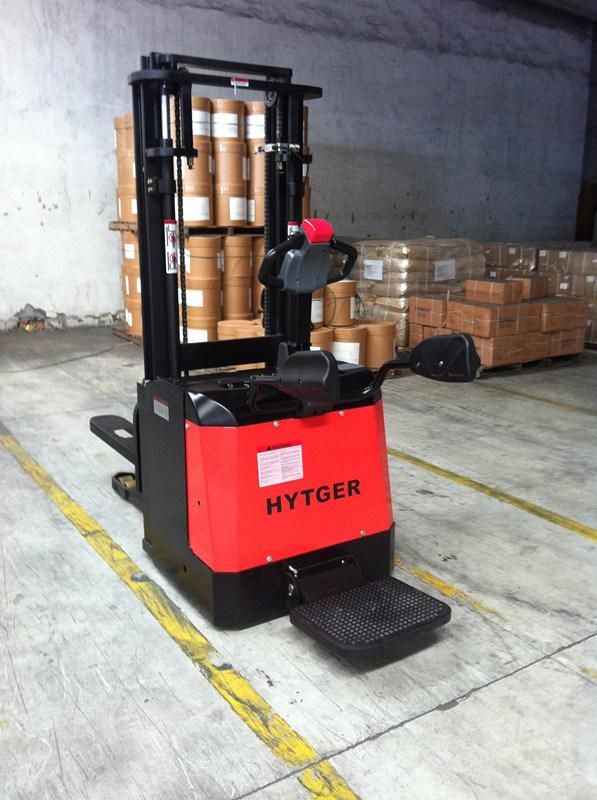

• Name：1-2 Ton Electric Stacker
• Loading Capacity：1600kg
• Control System：Curtis
• Battery Voltage：24V, 280ah
• Loading Center：600mm
• Forks Dimension：60, 190, 1150mm
• Overall Dimension：2525*860*2019mm
• Structure Weight：1400kg
• HS Code：84271090, 84272090
• Warrenty：1 Year
• Transport Package：Seaworthy Packing
• Specification：CE, SGS, ISO
• Trademark：HYTGER
• Origin：Shanghai, China
• Production Capacity：3000units,Year

Basic ParameterItem No:                       ES16-16RAPress capacity:            1600kgControl system:            CURTISBattery voltage:             24V/ 280AhLoad center:                  600mmOperate type:                Rider stand  Forks dimension:           60/ 190/ 1150                     Overall Dimension:         2525*860*2019mmStructure Weight:           1400kgHS Code:                       84271090Some spare parst free for you.Attention:1.Max lift height can be 5500mm available.2.Local voltage can be customized.2.Blue light can be added like forklift.3.Spare parts available.4,All colors are available.Remarks:1.Trade terms:FOB,CFR,CIF are available.2.Delivery time:within 25 received payment.3.Packing:Pallet packing,spare parts is packed in a box.4.Warranty:2000 working hours or 12month.  Characteristics1.1Manufacturer HYTGER1.2Model designation ES16-16RA1.3Drive unit Battery1.4Operator type Rider stand1.5Load capacityQ (kg)16001.6Load centerc (mm)6001.8Load distancex (mm)7131.9Wheelbasey (mm)1394 Weights2.1Service weight (Incl. battery)kg14002.2Axle loading, laden operator/load sidekg940/ 20602.3Axle loading, unladen operator/load sidekg890/ 510 Wheels, Chassis3.1Tyre type PU/ PU3.2Tyre size, operator sidemm230x753.3Tyre size, load sidemm85x703.4Balance wheels (dimensions) 130x603.5Wheels, number operator/load side (x=drive wheels) 1x+ 2/ 43.6Tread, operator sideb10 (mm)6343.7Tread, load sideb11 (mm)380 Dimensions4.2Height, mast loweredh1 (mm)20194.3Free lifth2 (mm)1004.4Lift heighth3 (mm)30004.5Height, mast extendedh4 (mm)35294.9Height of tiller arm in operating position, min/ maxh14 (mm)1007/ 14124.15Fork height, loweredh13 (mm)854.19Overall lengthl1 (mm)2003/ 25254.20Length to face of forksl2 (mm)8604.21Overall widthb1/ b2 (mm)8504.22Fork dimensionss/ e/ l (mm)60/ 190/ 11504.25Outside fork width, minimum/ maximumb5 (mm)5704.32Ground clearancem2 (mm)304.33Aisle width, 1000×1200 pallet crosswaysAst (mm)25214.34Aisle width, 800×1200 pallet lengthwaysAst (mm)24544.35Outer turning radiusWa (mm)1613 Performance5.1Travel speed, laden/ unladenkm/ h7.5/ 8.55.2Lifting speed, laden/ unladenm/ s0.15/ 0.185.3Lowering speed, laden/ unladenm/ s0.20/ 0.155.8Maximum gradeability, laden/ unladen S2 5 min.%8/ 165.10Service brake Electromagnetic Drive6.1Drive motor rating S2 60 min.kW1.56.2Lift motor rating at S3 15%kW36.4Battery voltage/ rated capacity (5h)V/ Ah24/ 2806.5Battery weight (with box)kg350 Battery compartment dimensions l/ w/ hmm815/ 222/ 630 Battery type Industry battery Others8.1Type of drive control AC Manufacturer CURTIS8.4Sound level at operator's eardB (A)74



T/T,L/C,Western Union,Paypal etc.
