• Model NO.：FD30T FD35T FD40T FD50T
• Lift height：3000~5000mm
• Condition：New
• Color：Customized
• Engine：Isuzu 4jg2
• Lifting Weight：4000 Kg
• Tire：Pneumatic Tire
• Battery Voltage：12 V
• Service  Brake：Hydraulic-Foot Pedal
• Parking Brake：Mechanical-Hand Lever
• OEM /ODM：Yes
• Transport Package：Nuded or as Customer′s Requirement
• Trademark：Thai-Sun
• Origin：China
• HS Code：8427209000
• Production Capacity：2000 Sets,Month

Overview Product Description

• Robust and Reliable Diesel Engine• Ergonomically design• Wide-view Mast and Container Mast for Choice

• Fully Integrated Frame and Suspension Chassis• Excellent Cooling System and Heat Releasing System

• Easy to maintain and repair• Lower Gravity• Emergency Stop Switch• Multiple Option Available for Choice

  • Counterbalanced Diesel Forklift provide you with multiple choice as per your real need,we have different reliable engines for choice.All these engine have been tested that they can be trusted through all kinds of tough working condition and get recognition from millions of client across the worldwide.

  • These engines are specifically designed for the forklift use,with low fuel consumption,less noise and vibration,all these features improve the whole performance of the forklift. High efficiency is also delivered through the performance of the axles,the excellent brake system make sure the forklift operate with safety,the steering axle provide prompt and precise feedback to the driver when steering.

  • The operator cabin is reasonable-designed considering its space,layout of the steering column and instrument displayer,file storage,suspension seat.The wide-view mast provide the operator with a wide visibility,improve the efficiency and guarantee the safety.

  • Because of the reasonable layout of engine,transmission,axle,counterbalance and chassis,the whole truck is with low gravity,this feature guarantee the stability and driving safety of the forklift.

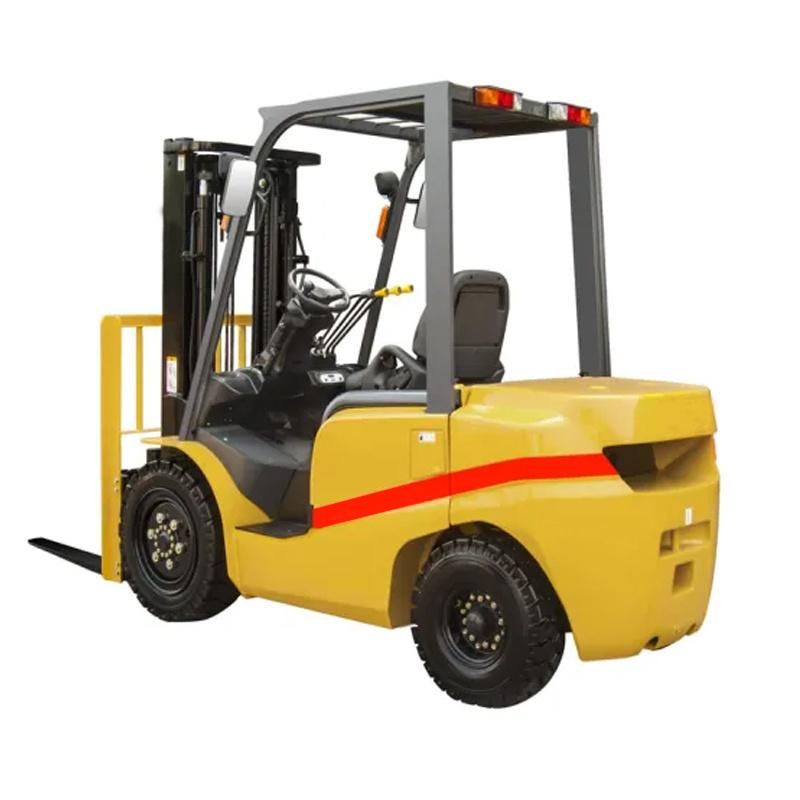

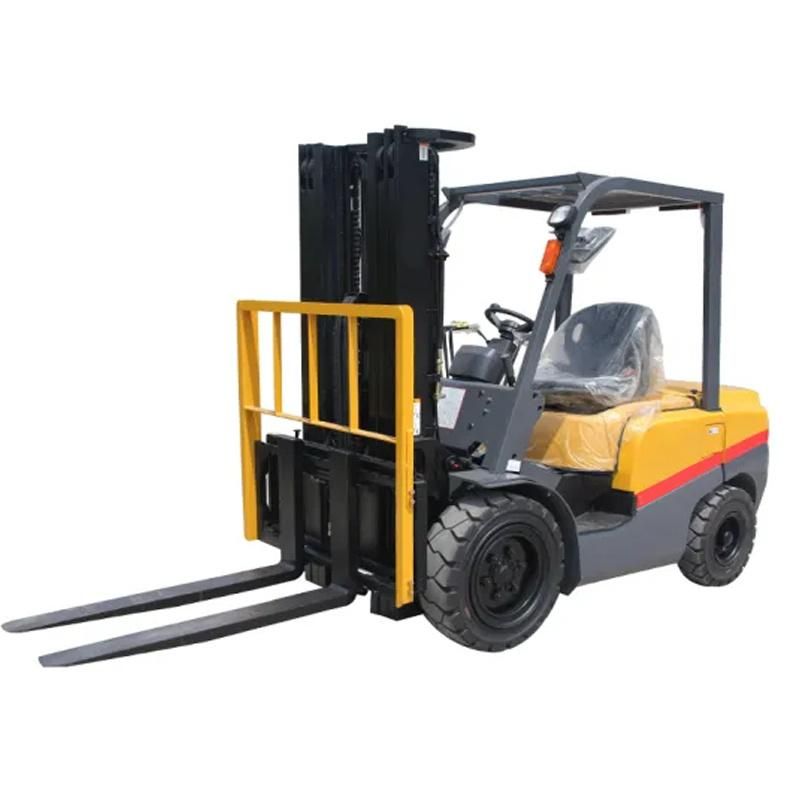

Detailed Photos

FD40 Technology SpecificationFeatures1Manufacturer  Thai-Sun2ModelPower shift T/MFD40TManual shift T/MFD40C3Load capacity kg40004Load center mm5005Power unit   Diesel   6Operator type  Driver/seat 7Tire type  Pneumatic  8WheelFront/rear 2/2Dimension9Max. lifting height mm300010Free lift mm15011Fork sizeL*W*Tmm1070*150*5012Tilt rangeMast forward/backward  deg6/1213Overall length(without fork) mm287014Total width mm136515Mast height (fork lowering) mm215016Overall height fork raisedWith backrest  mm425017Height to head guard mm214018Turning raduis(outside) mm253019Front face of fork to front axle mm48520Min. right angle stacking aisle
without load length&clearence mm2940Performance21SpeedMax Travelling
full/no loadkm/h16.5/1822Lifting
full/no loadmm/s380/48023Lowering                   full/no load       mm/s450/42024Max.drawbar pullPower shift T/M
full/no load          kg2200/1000Manual shift T/M
full/no load   kg2200/100025Gradeability at 1.6km/hPower shift T/M
full/no load    %18/20Manual shift T/M
full/no load  %18/20Weight26Truck weight kg505027Weight  distributionFull  load
front/rearkg7890/114028No  load
front/rearkg1810/3240Frame29TiresNumber front/rear2/230Modelfront axle  250-15-16PR31rear axle 6.50-10-10PR32Wheelbase mm180033Tread     Front/rearmm1120/97034Ground clearenceAt lowest point(mast)mm120Frame mm13535BrakeService  brake Hydraulic-foot pedalParking brake  Mechanical-hand leverEngine36BatteryVoltage/capacityV/AH12/8037EngineModel  ISUZU 4JG2Rated power kw/rpm44.8/2450Rated torque N.m/rpm186/1800Number of cylinders  4Placement L3.059Fuel tank capacity L7038Transmission     Speed forward/backwardPower shift T/M
Manual shift T/M  1-1 power shift T/M
2-2 manual shift T/M39Operating pressure Hydraulic system pressurekg/cm²180Company Profile

Our Advantages

Packaging & Shipping

FAQ



1. What kind of forklift do you have?
We have diesel engine forklift, electric forklift, LPG forklift and Gasoline forklift.

2. What payment terms do you accept?
We can accept the TT, LC, Western Union & PayPal

3. Do you have the stock forklift?
Surely we have the standard configuration forklift on stock.

4. Which port will you ship the goods from?
Shanghai Port
