• Model NO.：FD200
• Lift height：3000~5000mm
• Condition：New
• Engine：Shangchai
• Min. Ground Clearance：250mm
• Weight：28000kg
• Wheel Base：4000mm
• Fork Size (L*W*H)：2000mm*260mm*100mm
• Rated Power：132kw,2000rpm
• Max.Lifting Height：3500mm
• Ground Clearance：250mm
• Rated Power/Rotate Speed：132,2000kw,R.Pm
• Truck Weight：28000kg
• Transport Package：by Bulk
• Specification：8790mm*3020mm*3600mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

ModelUnitFD200TRated load 20000Load center 900Free liftmm180Mast tilt angle (front/rear)º6/12Overall dimensionsLengthmm8790Widthmm3020Heightmm3600Mast lifting heightmm3500Fork size (L*W*H)mm2000X260X100Min. turning radiusmm6250Max. travel speed (with load)Km/h25Lifting speed (with load)mm/s180Gradeability (with load)%20WeightKg28000Front 4X14.00-24/24PRRear 2X14.00-24/24PRWheel treadFrontmm2200Rearmm2390Wheelbasemm4000Min. ground clearancemm250Model SC8D180Rated power/rotate speedKW/r.pm132/2000Max. torque/rotate speedN.m/r.pm810/1600

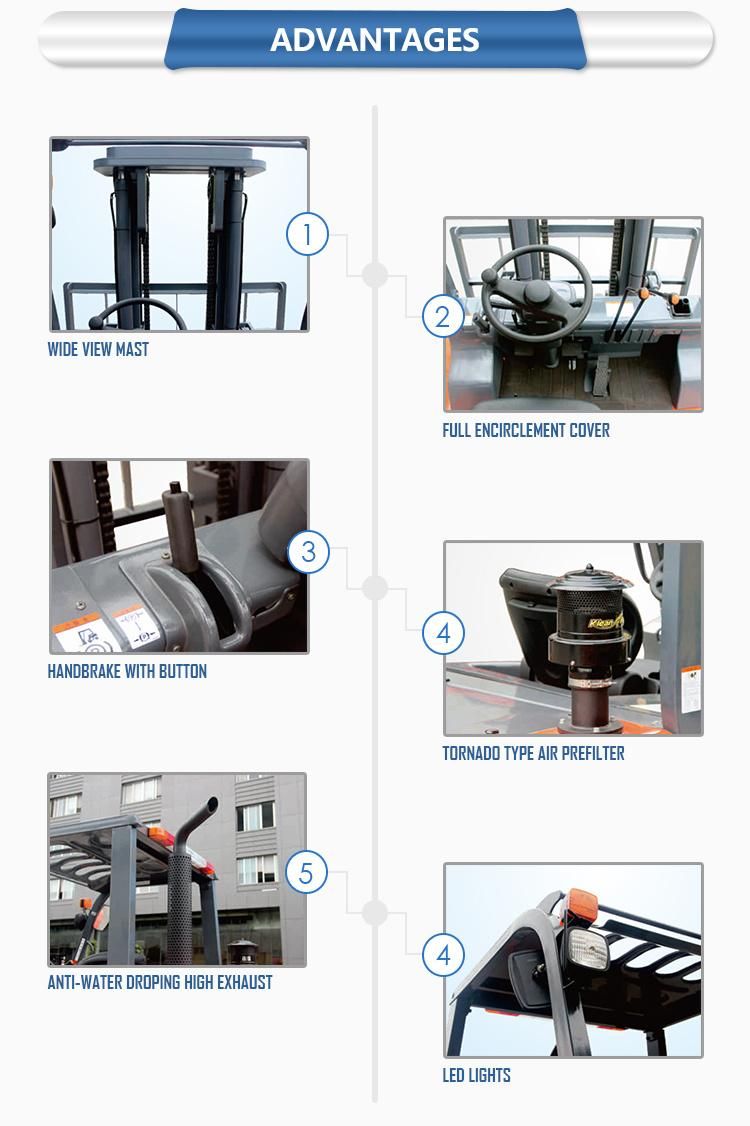

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

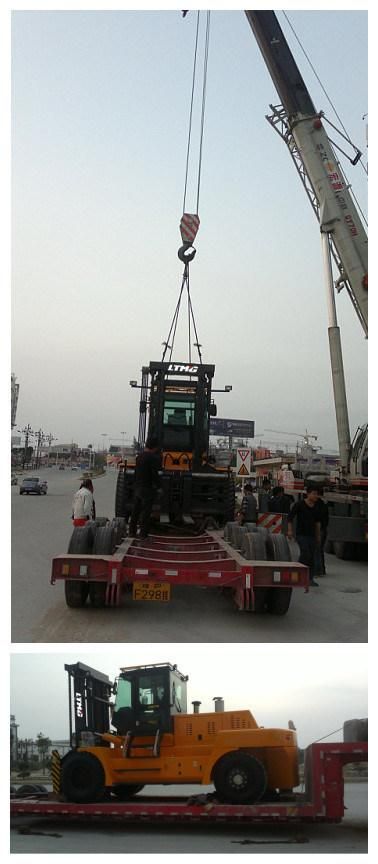

Packing & Shipping


Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors
If you are interested in our product,you could visit our website.
Website:
Ltmg.group
http://ltmamachine.en.made-in-china.com (Group)
http://ltmamachine.en.made-in-china.com  (Forklift)
http://ltmamachine.en.made-in-china.com  (Loader)
http://ltmamachine.en.made-in-china.com (Airport GSE)

Customers Show/Application Show
Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.



After sales service

Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
