• Model NO.：FB20
• Fuel：Battery
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*122mm*40mm
• Weight：3440kg
• Wheelbase：1400mm
• Free Lift：160mm
• Color：Could Be Designed by Buyer
• Gradeability：12.5
• Battery：48V-450ah
• Certificate：CE,ISO
• Brand：Ltmg

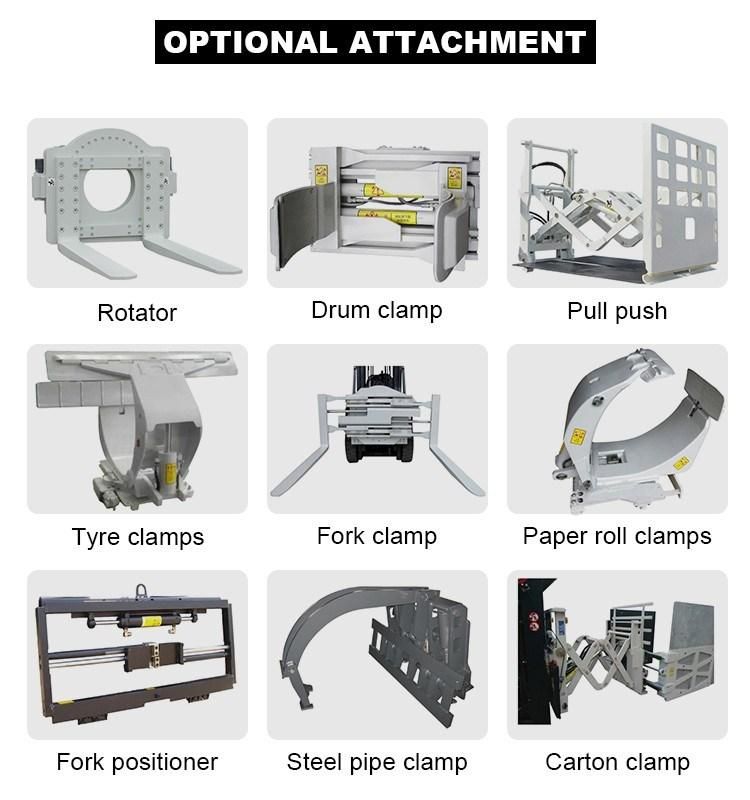

• Optional：White Solid Tyres, Side Shift, Triplex Mast, Cabin
• Transport Package：Nude Packing, Fixed in Container
• Specification：2245mm*1150mm*2145mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

Manufacturer  LTMGModel   FB20Load capacity   kg2000Load center     mm500Power unit   BatteryOperator type  Driver/seatTire type  pneumaticWheel(x=driving)Front/rear        2X/2Max. lifting height   mm3000Free lift  mm160Fork size   L*W*Tmm1070*122*40Tilt range Mast forward/backwarddeg6/12Overall length(without fork)  mm2245Total width  mm1150Mast height (fork lowering)  mm1995Overall height fork raised With backrestmm4030Height to head guard mm2145Turning radius(outside) mm1980Front overhang ( face of fork to front axle) mm445Min. right angle stacking aislenot add load length&clearancemm2425Speed Max Travellingfull loadkm/h13.5Max Travellingno load km/h15Liftingfull loadmm/s240Liftingno load mm/s450Gradeability full load %12.5Truck weight(with standard battery) kg3440Weight  distribution  Fullloadfront/rearkg4565/875Noloadfront/rearkg1445/1995Tires  Number  front/rear2/2Model    front axle21*8-9-16PRrear axle18*7-8-14PRWheelbase  mm1400Tread Front/rear  mm955/950Ground clearanceAt lowest point(mast)  mm110Frame  mm115BrakeServicebrake  Hydraulic-foot pedal                                 Parking brake Mechanical-hand lever                               Battery  Voltage/capacity  V/AH/5hr48V-450Weight with box(standard) kg 825Electric motor AC Driving motor kw11DC Hydraulic driving motor  kw8.6 AC Hydraulic driving motor (as option)kw13Control type  Driving AC , lifting DC
Driving AC , lifting AC (as option ) Operating pressure    kg/cm²175
