Custom Colour 5ton Forklift Counterbalance Diesel Forklift for Sale
XIAMEN LTMG CO., LTD.- After-sales Service：Free Spare Parts
- Warranty：1 Year
- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
Base Info
- Model NO.：FD50
- Fuel：Diesel
- Load center：>500mm
- Lift height：>5000mm
- Condition：New
- Color：Customize
- Tire：Pneumatic Standard or Solid Tire
- Certification：Ce&ISO9001
- Transmission：Hydraulic Transmission
- Max. Lifting Height：6 Meter
- Wheel Base：2100mm
- Transport Package：Nude Packing
- Specification：3260*1460*2270MM
- Trademark：LTMG
- Origin：China
- HS Code：8427209000
Description
Model FD45 FD50 Power Type Diesel Diesel Rated Capacity kg 4500 5000 Load Centre mm 500 500 Lift Height mm 3000 3000 Fork Size L×W×T mm 1070×150×50 1070×150×50 Mast Tilt Angle F/R Deg 6°/12° 6°/12° Front Overhang (Wheel center to fork face) mm 579 579 Ground Clearance(Bottom of mast) mm 150 150 Overall Dimension Length to face of fork(Without fork) mm 3260 3260 Overall Width mm 1460 1460 Mast Lowered Height mm 2270 2270 Mast Extended Height(With backrest) mm 4165 4165 Overhead Guard Height mm 2340 2340 Turning Radius (outside) mm 2910 2310 Speed Travel (Full load) km/h 25 25 Lifting (Full load) mm/s 400 380 Max.Gradeability (No load/Full load) % 20 20 Tire Front mm 300-15-18PR 300-15-18PR Rear mm 7.00-12-12PR 7.00-12-12PR Wheelbase mm 2100 2100 Service weight kg 6680 6680 Battery Voltage/Capacity V/Ah <12/80>*2 <12/80>*2 Engine Model 6BG1-05 Manufacture ISUZU Rated output/r.p.m. kw 68.4/2500 Rated torque/r.p.m. N·m 333/1500 No.of Cylinder 6 Bore×Stroke mm 105×125 Displacement cc 6494 Fuel Tank Capacity L 105 Transmission Type Hydraulic Stage FWD/RVS 2/1

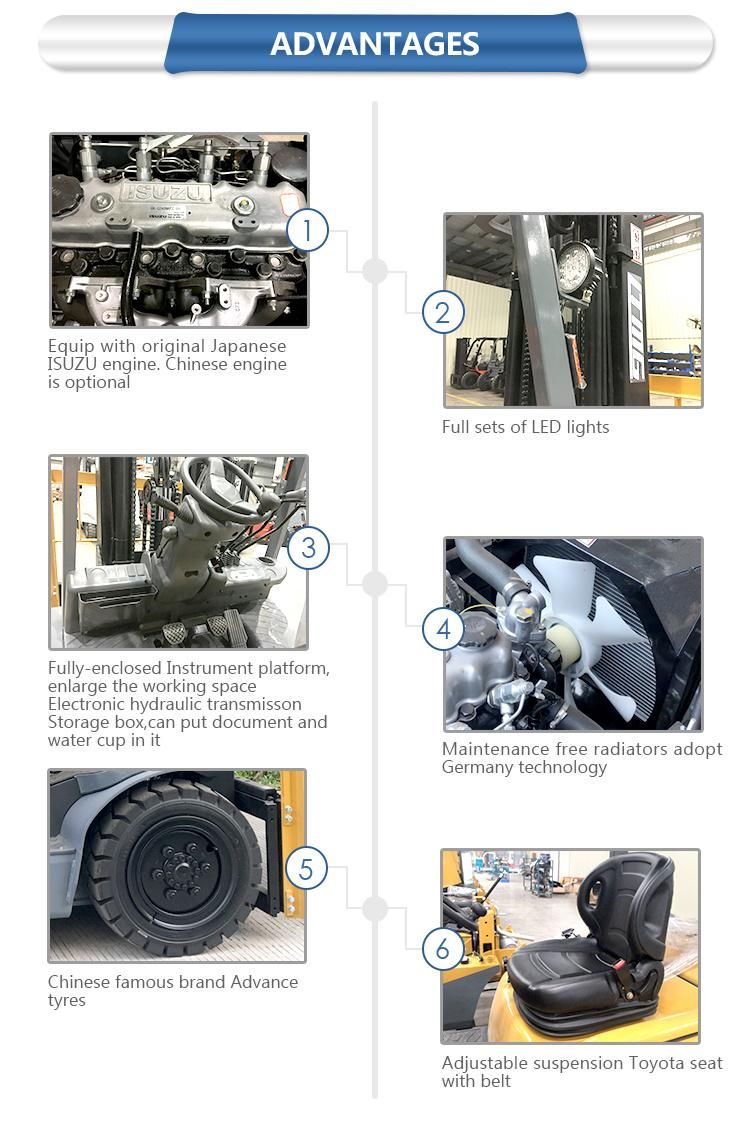

1- Auto electric hydraulic transmission by TCM technology, just use your finger can achieve the forklift's forward and backward;
2- Japan hydraulic system, by using Shimadzu brand Valve and Pump;
3- USA Eaton steering gear;
4- LED light& Protection , with long durability time;
5- Copper Radiator, with better heat radiation;
6- Red/yellow/green and all kinds of customized colors for your reference;
7- Standard duplex mast, optional 3M-7M duplex / triplex mast;
8 - Standard China XC490 engine, optional Japan Isuzu/Mitsubishi / Yanmar engine
Packing&shipping:
Customer:

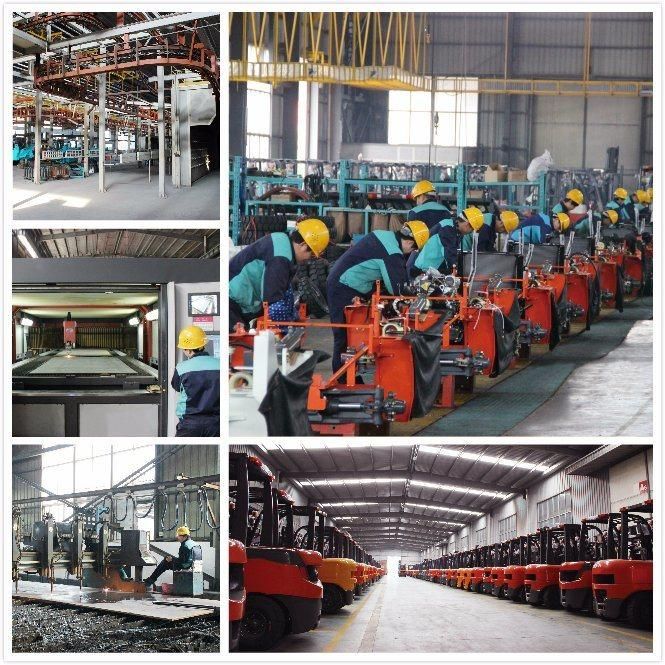

Company&factory:
After-Sales Service:
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
1- Auto electric hydraulic transmission by TCM technology, just use your finger can achieve the forklift's forward and backward;
2- Japan hydraulic system, by using Shimadzu brand Valve and Pump;
3- USA Eaton steering gear;
4- LED light& Protection , with long durability time;
5- Copper Radiator, with better heat radiation;
6- Red/yellow/green and all kinds of customized colors for your reference;
7- Standard duplex mast, optional 3M-7M duplex / triplex mast;
8 - Standard China XC490 engine, optional Japan Isuzu/Mitsubishi / Yanmar engine
Packing&shipping:
Customer:
Company&factory:
After-Sales Service:
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
