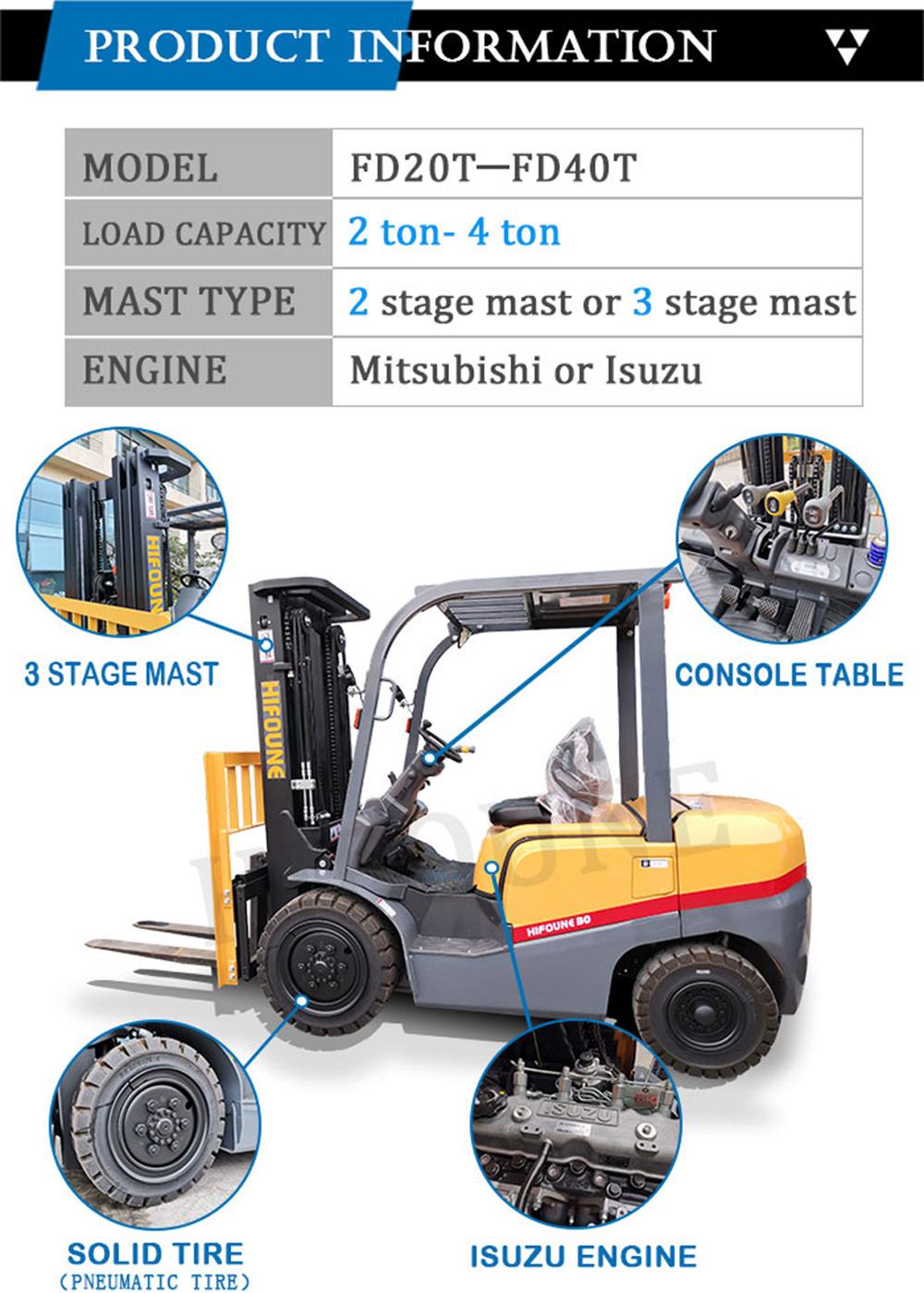

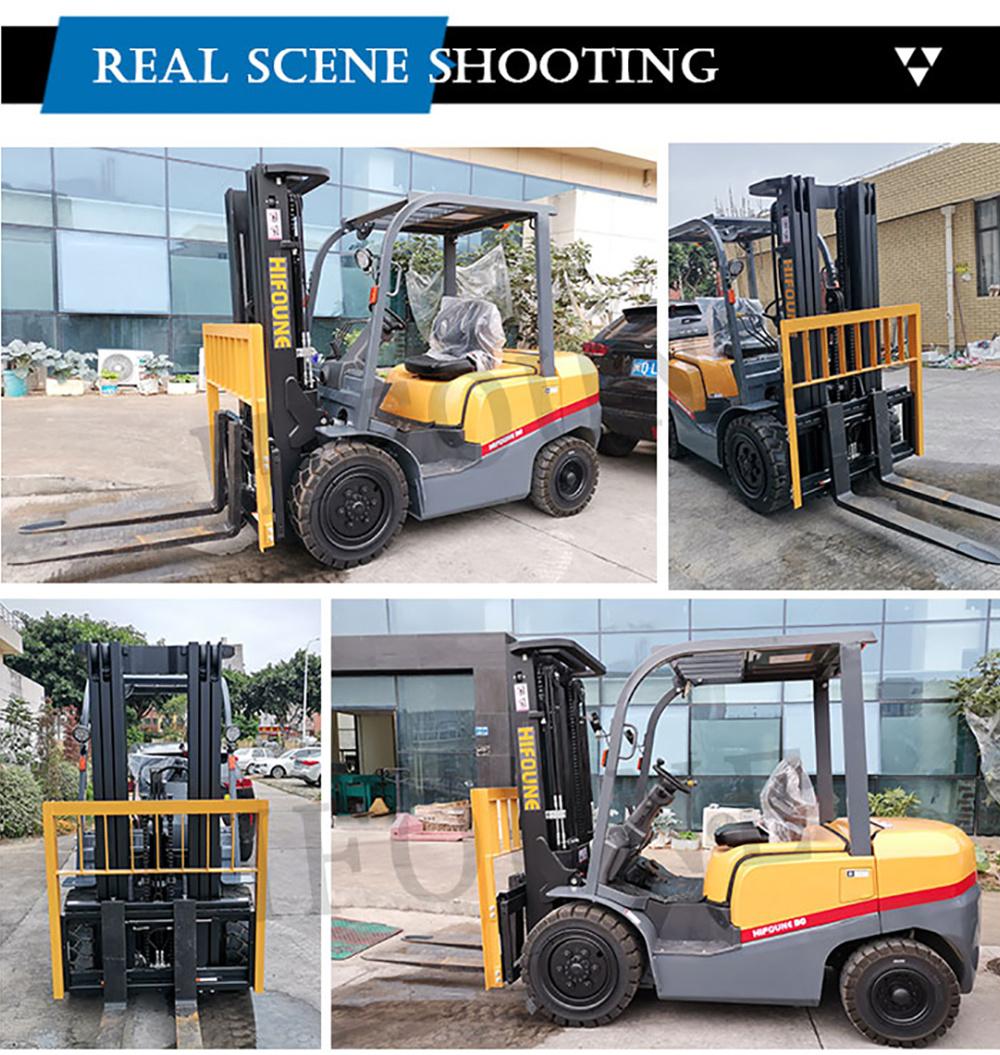

Hight Class Optional Engines 3.5 Ton Diesel Forklift Truck
Xiamen Hifoune Technology Co., Ltd.- After-sales Service：Video Technical Support
- Warranty：One Year or 2000hours
- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
Base Info
- Model NO.：FD35
- Fuel：Diesel
- Load center：500mm
- Lift height：>5000mm
- Condition：New
- Engine：Xinchai,Mitsubishi
- Weight：3380kg
- Rated Capacity：2500kg
- Fork Size：1220X122X40mm
- Transmission Box Type：Automatic Transmission
- Tire Type：Pneumatic Tire
- Transmission：Hydraulic
- Optional：Attachment, Side Shifter, Sealed Cab, Mast, etc
- Mast：Duplex Mast (Triplex Mast Optional)
- Color：Customized
- Certification：CE,ISO
- Transport Package：Container
- Specification：2605x1150x2090mm(LXWXH)
- Trademark：Hifoune
- Origin：Xiamen, China
- HS Code：8427109000
- Production Capacity：4500sets,Year
Description
Forklift truck are industrial vehicles, which refer to various wheeled handling vehicles for loading, unloading, stacking and short-distance transportation of palletized goods. The International Organization for Standardization ISO/TC110 is called an industrial vehicle. It is often used for the transportation of large objects in storage, and is usually driven by fuel engines or batteries.
The technical parameters of the forklift are used to indicate the structural characteristics and working performance of the forklift. The main technical parameters are: rated lifting capacity, load center distance, maximum lifting height, mast angle, maximum travel speed, minimum turning radius, minimum ground clearance, wheelbase, wheelbase, etc.
SpecificationModel UNIT FD20T FD25T FD30T FD35T FD40T Power Unit Diesel Diesel Diesel Diesel Diesel Transmission Type Electronic hydraulic Electronic hydraulic Electronic hydraulic Electronic hydraulic Electronic hydraulic Rated Capacity kg 2000 2500 3000 3500 4000 Load Center mm 500 500 500 500 500 MaX.Lifting Height mm 3000 3000 3000 3000 3000 Turning Radius mm 2170 2240 2400 2460 2560 Overall Length (without fork) mm 2605 2605 2705 2760 2820 Overall Width mm 1150 1150 1240 1240 1300 Overhead Guard Height mm 2090 2090 2130 2130 2130 Fork Size (L×W×T) mm 1220×122×40 1220×122×40 1220×125×45 1220×125×50 1220×150×50 Mast Height (Fork lowered) mm 2090 2090 2140 2140 2140
The technical parameters of the forklift are used to indicate the structural characteristics and working performance of the forklift. The main technical parameters are: rated lifting capacity, load center distance, maximum lifting height, mast angle, maximum travel speed, minimum turning radius, minimum ground clearance, wheelbase, wheelbase, etc.
Specification
