• Model NO.：FT4*4F
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Engine Model：Yunnei 490-4105
• Loading Capacity：2500-10000kg
• Mast Type：2 Stage or 3 Stage
• Lifting Height：3000-7000mm
• Machine Weight：3500-13000kg
• Transmission：Automatic Gearbox
• Tires：Pneumatic Tires , Solid Tires
• Speed：25-30km,H
• Fork Size：1070*125*50mm
• Transport Package：Container
• Specification：3680*1750*2550mm
• Trademark：HUAYA
• Origin：China
• Production Capacity：5000,Year

Basic Info.

Model NO. FT4*4F Fuel Diesel Load center 500mm Lift height 3000~5000mm Condition New Engine Model Yunnei 490-4105 Loading Capacity 2500-10000kg Mast Type 2 Stage or 3 Stage Lifting Height 3000-7000mm Machine Weight 3500-13000kg Transmission Automatic Gearbox Tires Pneumatic Tires / Solid Tires Speed 25-30km/H Fork Size 1070*125*50mm Transport Package Container Specification 3680*1750*2550mm Trademark HUAYA Origin China Production Capacity 5000/Year

Product Description

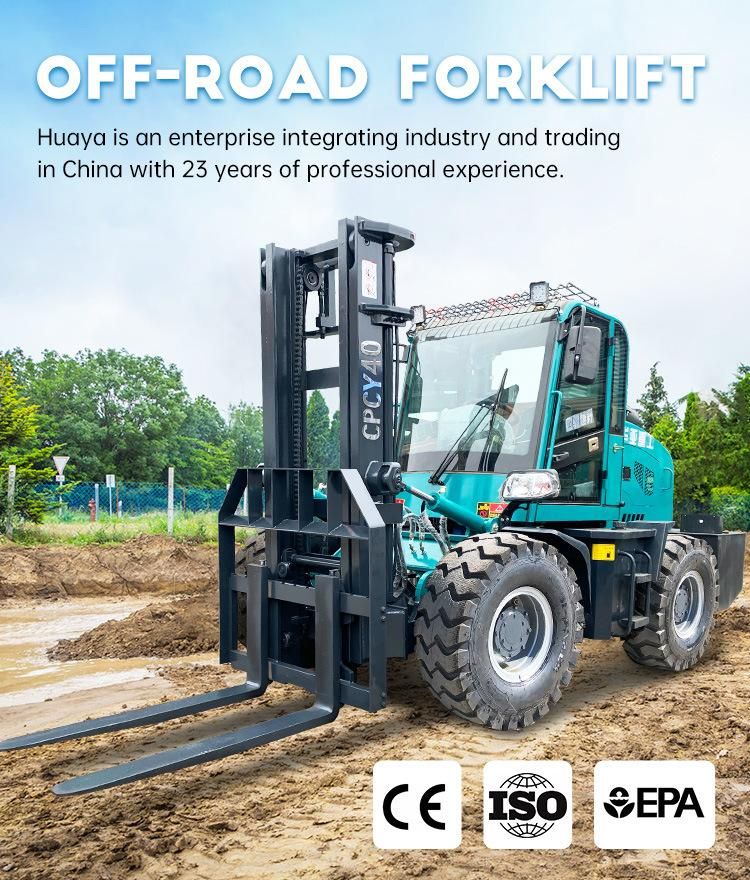

Description of off-road forklift:
Rated load 3 3.5 4 4.5 5 6 7 10 ton off-road forklift

Advantage:

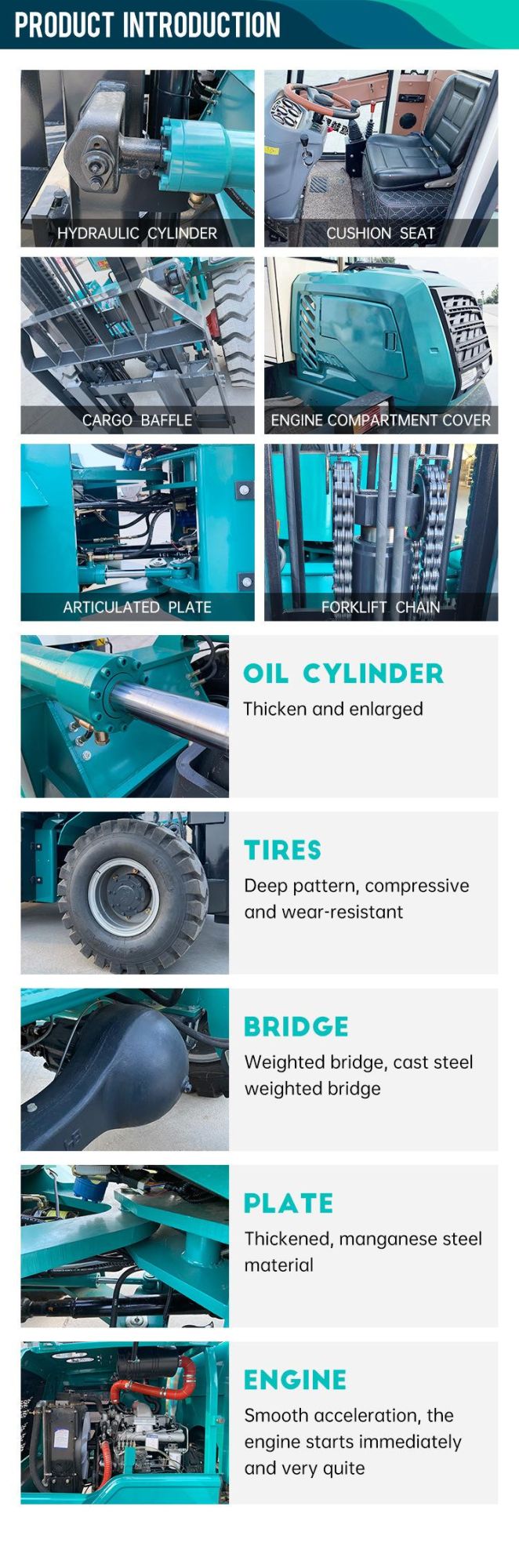

1. Engine: Equipped with Yunnei engine, strong power, energy saving and environmental protection, easy to maintain
2. Cab: closed cab, high safety and wide field of vision.
3. Gearbox: The automatic transmission is easy to operate and has high safety. Made in China, the gear shift is smooth
4. Axle: Large wheel side reduction axle, stronger bearing capacity.

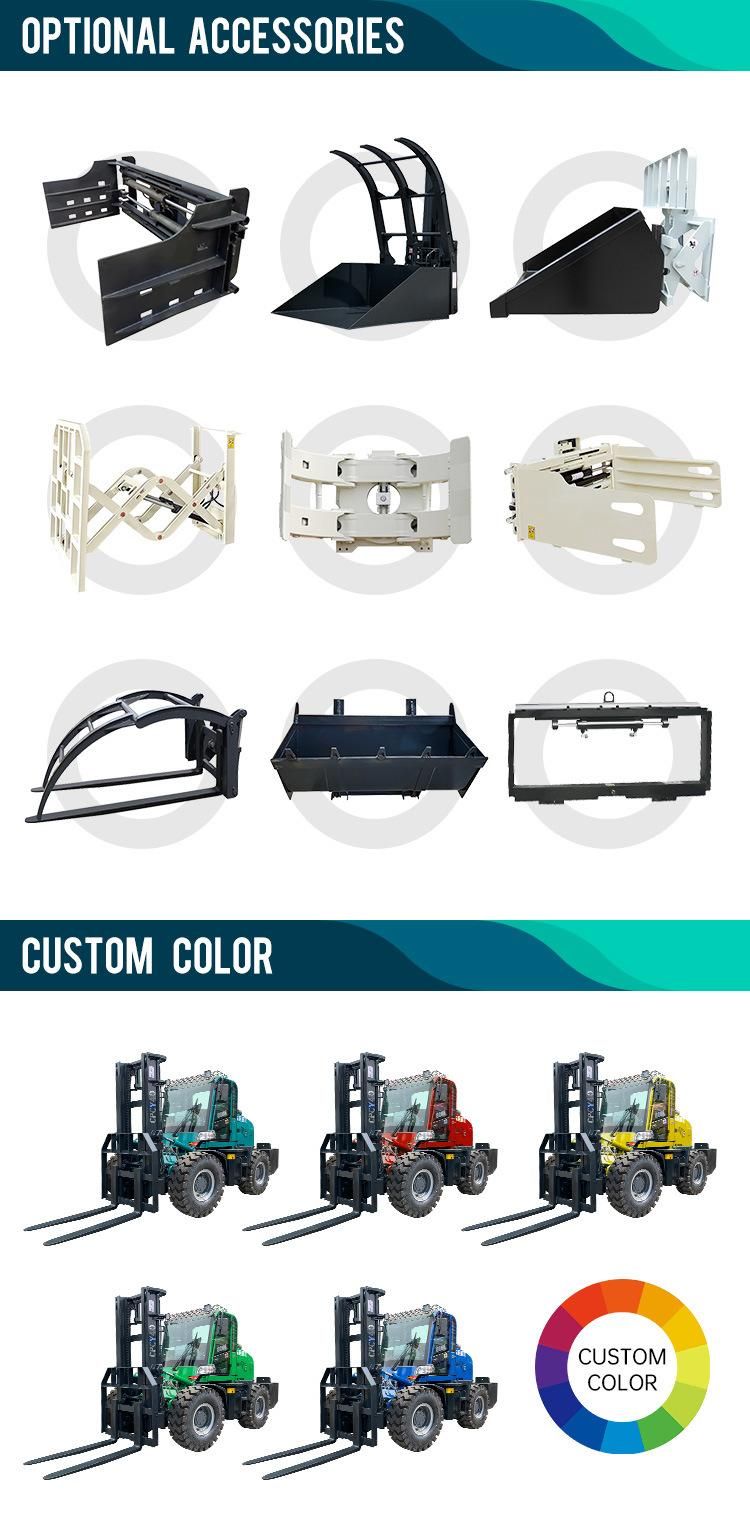

High configuration, high performance, low fuel consumption, beautiful appearance, wide application range, etc., can provide supporting tools.

Brand: HUAYA
Rated load: 3000kg
Ground clearance: 25
Engine power: 42
Minimum turning radius: 3500mm
Engine model: YUNNEI490
Fuel Type: Diesel
Color: Customer Demand

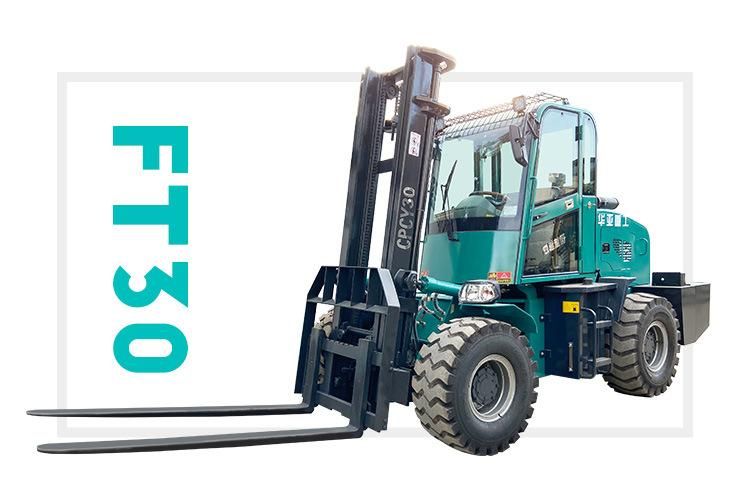

4*4 Articulated Off-road Forklift


Model	FT30	FT35	FT40	FT50
Rated load	3000kg	3500kg	4000kg	5000kg
Vehicle weight	4200kg	4500kg	5800kg	6200kg
Ground clearance	25km/h	25km/h	30km/h	30km/h
full speed	25km/h	25km/h	30km/h	30km/h
Minimum turning radius	3500mm	3500mm	3800mm	3800mm
engine model	Yunnei490	Yunnei 490	Yunnei4102	Yunnei4105
engine power	42kw	58kw	65kw	76kw
lift height(mm)	3000-6000	3000-6000	3000-6000	3000-6000
load center	500mm	500mm	500mm	500mm
Dimensions(mm)	3950*1750*2550	4000*1800*2550	4100*1800*2550	4850*2150*2850

4*4 four-wheel drive integrated off-road forklift


Model	FT30	FT35	FT40	FT50
Rated load	3000kg	3500kg	4000kg	5000kg
Vehicle weight	5200kg	5700kg	6200kg	8100kg
Ground clearance	280mm	280mm	300mm	320mm
full speed	25km/h	25km/h	25km/h	25km/h
Minimum turning radius	3500mm	3500mm	3500mm	3250mm
engine model	YUNNEI490	YUNNEI490	YUNNEI4100	YUNNEI4102
engine power	37kw	55kw	60kw	76kw
lift height(mm)	3000-6000	3000-6000	3000-6000	3000-6000
load center	500mm	500mm	500mm	500mm
Dimensions(mm)	3350*1700*2300	3350*1700*2300	3500*1850*2500	3600*1880*2600

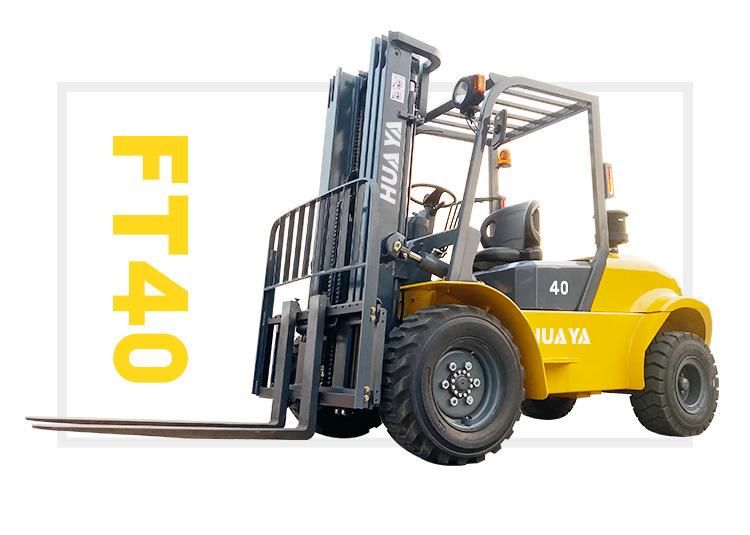

4*2 two-wheel drive off-road forklift


Model	FT25	FT30	FT35	FT40
Rated load	2500kg	3000kg	3500kg	4000kg
Vehicle weight	4650kg	4850kg	5000kg	5300kg
Ground clearance	25mm	25mm	25mm	30mm
full speed	25km/h	25km/h	25km/h	30km/h
Minimum turning radius	3500mm	3500mm	3500mm	3800mm
engine model	YUNNEI490	YUNNEI490	YUNNEI490	YUNNEI4102
engine power	42kw	42kw	58kw	65kw
lift height(mm)	3000-6000	3000-6000	3000-6000	3000-6000
load center	500mm	500mm	500mm	500mm
Dimensions(mm)	3680*1750*2550	3980*1750*2550	4100*1800*2550	4100*1800*2550
