• Model NO.：FD50T
• Load center：600mm
• Lift height：>5000mm
• Condition：New
• Engine：Xinchai,Mitsubish
• Weight：6900kg
• Rated Capacity：5000kg
• Fork Size：1220X150X55mm
• Transmission Box Type：Automatic Transmission
• Tire Type：Pneumatic Tire
• Transmission：Hydraulic
• Optional：Attachment, Side Shifter, Sealed Cab, Mast, etc
• Mast：Duplex Mast (Triplex Mast Optional)
• Color：Customized
• Certification：CE,ISO
• Transport Package：Container
• Specification：4300x1490x2255mm(LXWXH)
• Trademark：UNITCM
• Origin：Cn
• HS Code：8427109000
• Production Capacity：4500sets,Year

ModelUNITFD50TCSpecificationsPower Unit DieselOperator Type Driver/seatTransimission Box Type Electronic hydraulic transmissonRated Capacitykg5000Load Centermm600Max.Lifting Heightmm3000Tire Type Pneumatic TyreTire Number Front 2Rear2Tire Size Front 300-15-18PRRear 7.00-12-12PRPerformanceLifting SpeedLoadedmm/s480Unloaded520Lowering Speed Loadedmm/s480Unloaded450Travelling Speed Loadedkm/h19Unloaded20Max.Gradeability (Loaded)%20Mast Tilting Angle (Fwd/Bwd)deg6/12Free Lifting Heightmm150Turning Radiusmm2850DimensionsOverall Length (with fork)mm4300Overall Widthmm1490Overhead Guard Height 2255Fork Size (LxWxT)mm1220x150x55Mast Height (Fork lowered)mm2245Battery (Voltage/Capacity)V/Ah2×12/90Truck Weightkg6900Fuel Tank CapacityL140EngineBrand  XichaiMITSUBISHModel 4D32S6SRated Powerkw/rpm60/220052/2300Rated torquen-m/rpm320/1400~1700248/1700Number Of Cylinder 46Displacement  4.996

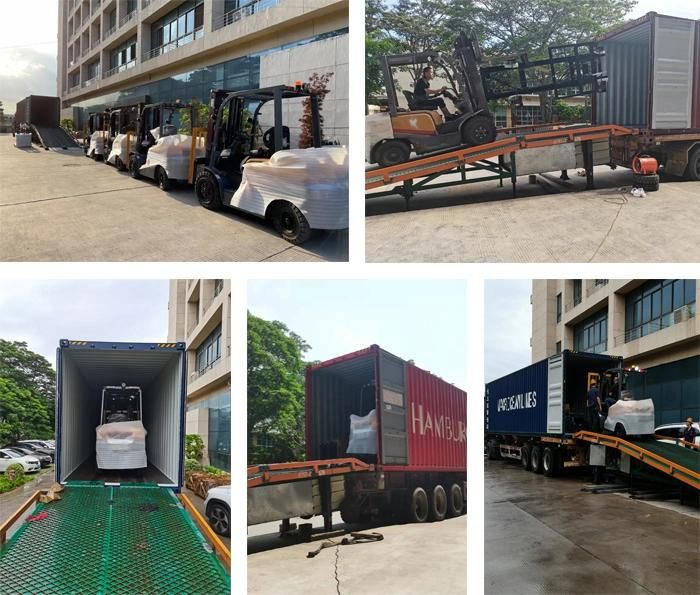

Shipping & Packing

About us
Xiamen Hifoune Machinery Co., Ltd. is located in the Xiangan industrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. Our main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipment. We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links

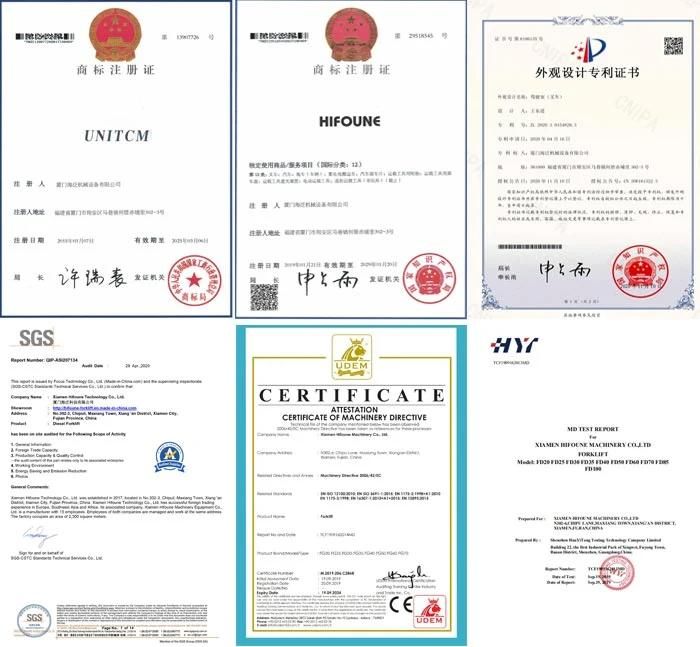

Certificate
Our company has a variety of patents and our factory has also applied for many certificates. In the future, we will also develop and apply for more patents and certificates in this industry.

FAQ

Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.

Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compitible with TCM forklift, but have cheaper price.

Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
