• Model NO.：EST152
• Fuel：Electric
• Load center：600mm
• Lift height：3000~5000mm
• Condition：New
• Rated Loading Capacity：1500kg
• Max. Lifting Height：3600mm
• Min. Lifting Height：85mm
• Fork Length：1150mm
• Fork Width：170mm
• Service Weight：605kg
• Tyre Type：PU,PU
• Travel Speed：3.6,3.8 Km,H
• Battery Voltage：24V,85ah
• Turning Radius：1390 mm
• Lifting Speed：0.098,0.14 M,S
• Lowering Speed：0.1,0.094 M,S
• Wheelbase：1212 mm
• Service Brake Type：Electromagnetic
• Steering Type：Mechanical
• Transport Package：Standard Export Packing

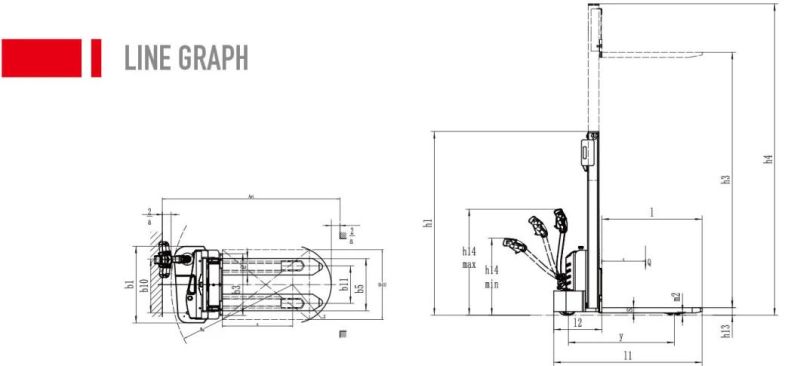

• Specification：1717mm*796mm*2090mm
• Trademark：iMOW
• Origin：Zhejiang
• HS Code：8427109000
• Production Capacity：50000,Year

Basic Info.

Model NO. EST152 Fuel Electric Load center 600mm Lift height 3000~5000mm Condition New Rated Loading Capacity 1500kg Max. Lifting Height 3600mm Min. Lifting Height 85mm Fork Length 1150mm Fork Width 170mm Service Weight 605kg Tyre Type PU/PU Travel Speed 3.6/3.8 Km/H Battery Voltage 24V/85ah Turning Radius 1390 mm Lifting Speed 0.098/0.14 M/S Lowering Speed 0.1/0.094 M/S Wheelbase 1212 mm Service Brake Type Electromagnetic Steering Type Mechanical Transport Package Standard Export Packing Specification 1717mm*796mm*2090mm Trademark iMOW Origin Zhejiang HS Code 8427109000 Production Capacity 50000/Year

Product Description

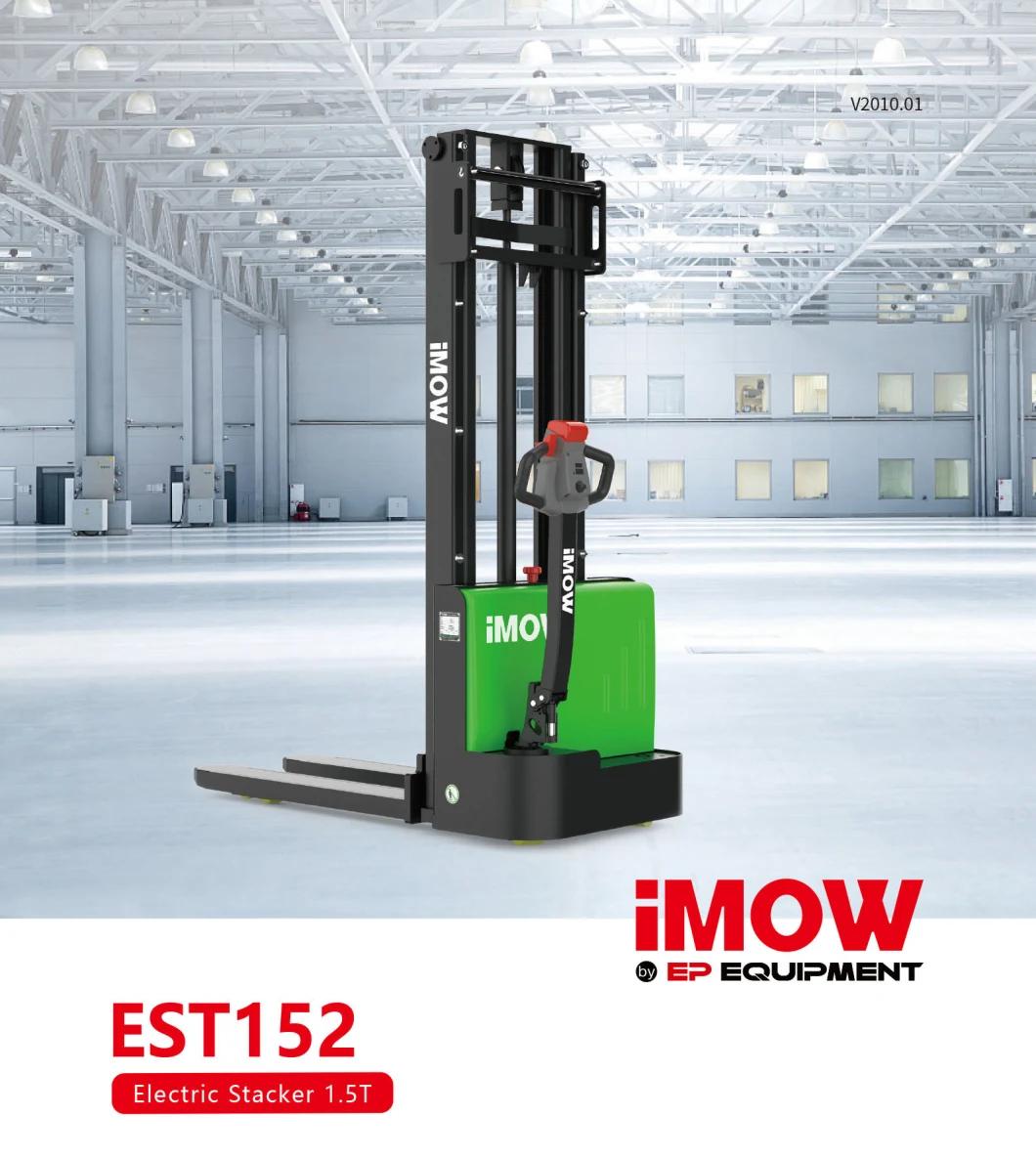

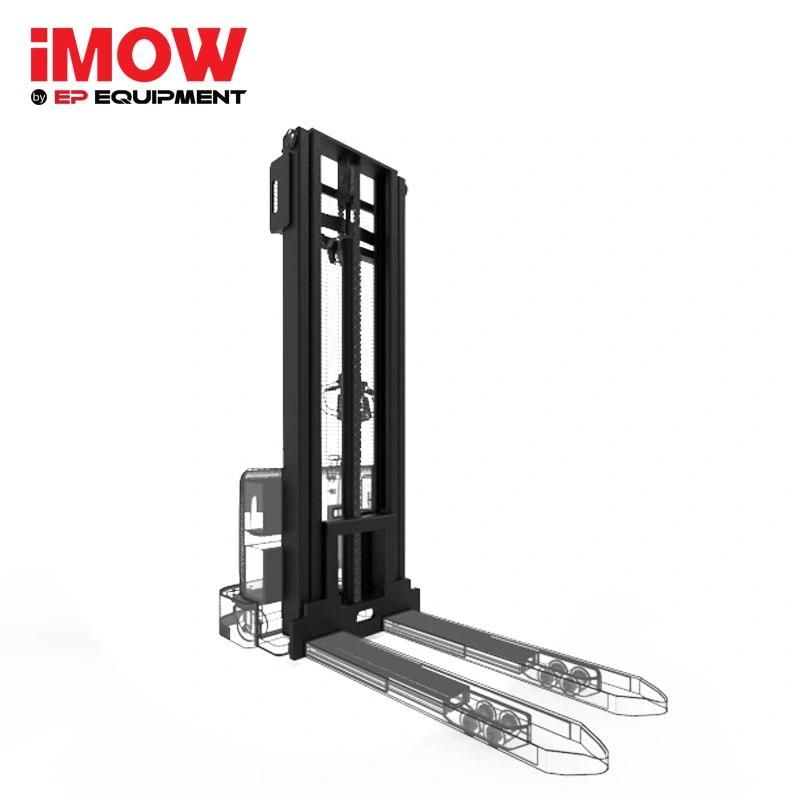

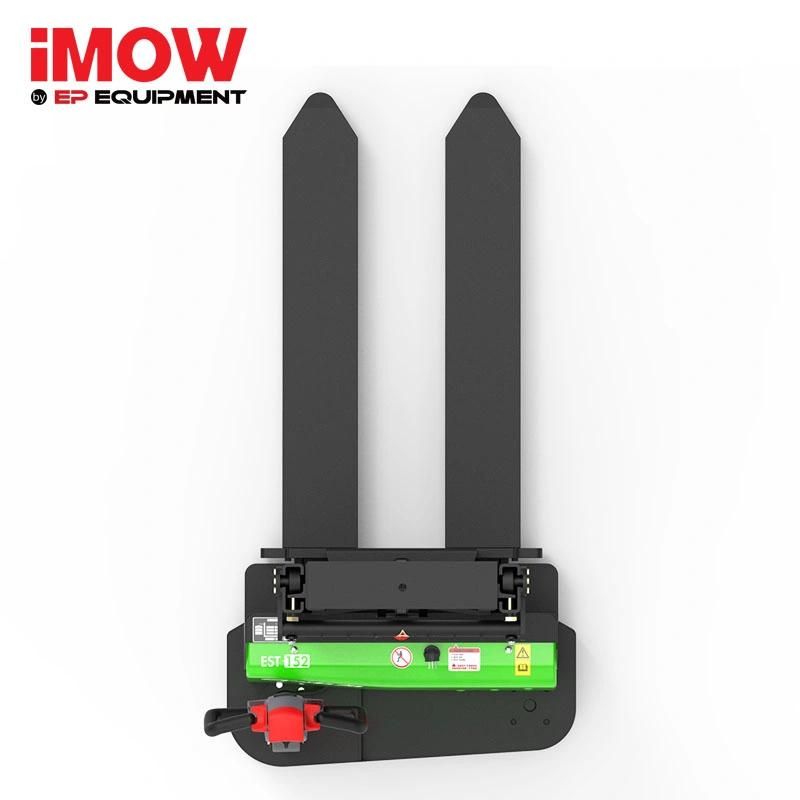

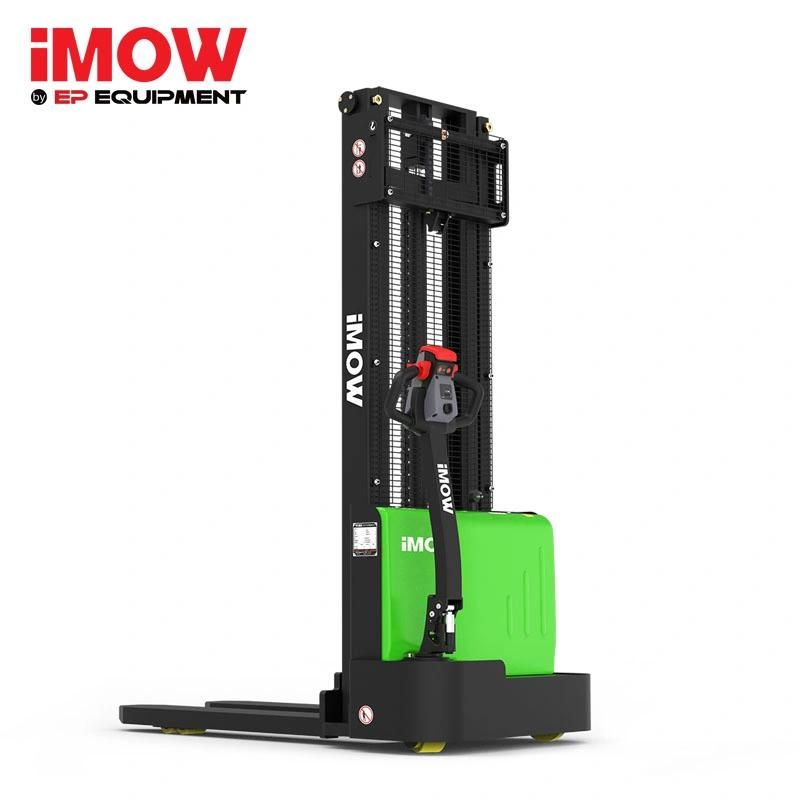

EP 1.5 Ton Fully Automatic Electric Power Stacker with USA Curtis Controller


Main features:

• Capacity 1500KG,lifting height 2400MM OR 3000MM.
• DC motor, internal charger
• Acid battery:2x12V/85AH
• Economical choice, better price, high performance
• Mini type for narrow aisle
• Anti-burst hydraulic oil tube

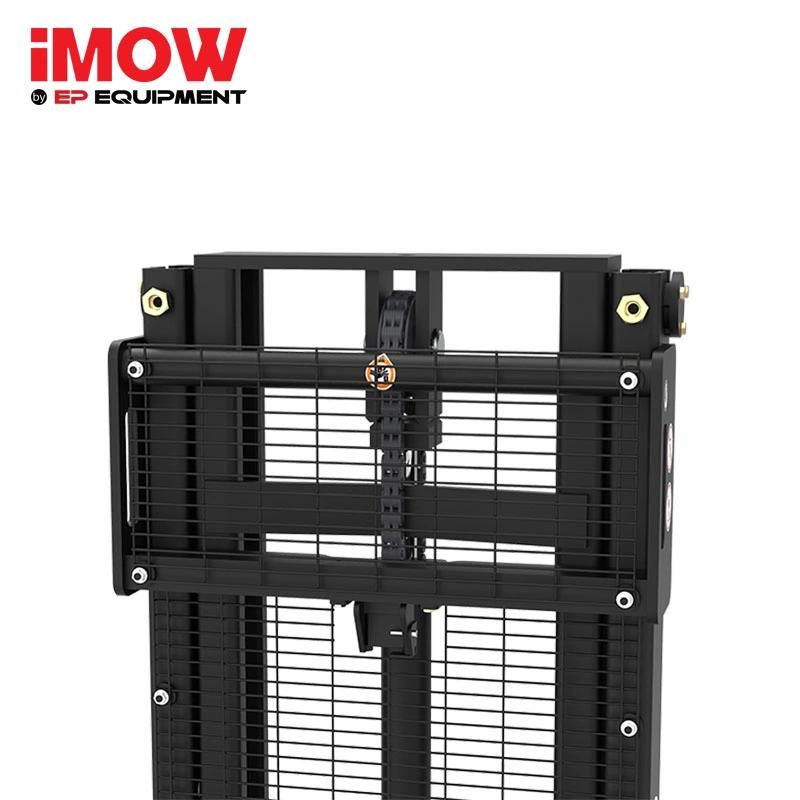

• Single chain design, providing wider view
• Robot cables with excellent twist resistance offers longer life span.
• Handy emergency discount button&durable driving unit ensure safety under any situation.
• Charger with temperature indicator protects battery.
• Compact design and small dimensions(the turning radius is only 1342mm),offering excellent visivility.
• Convenient control handle with all function on it.
• The comfortable and ergonomic handles enables easy maneuvering.
• The plastic shell is formed by injection moulding.
• The fork is formed by injection moulding and made of thickness steel plate reinforcement.
• Fix forks for standard configuration.

Product specifications:

No	Item	Data
1	Capacity	1500kg

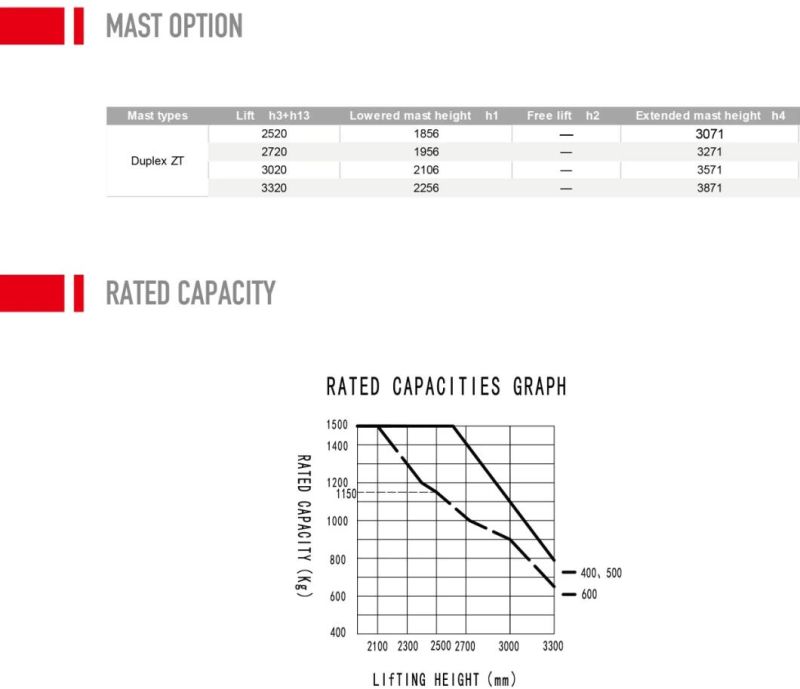

2	Max lifting height	2500/3000/3300/3500mm
3	Service weight	605kg
4	Tires type	PU
5	Travel speed(laden/unladen)	3.6/3.8km/h
6	Type of drive motor	DC
7	Steering type	mechanic
8	Battery	24V/85Ah

More details:
