• Model NO.：CPCD35
• Lift height：3000~5000mm
• Condition：New
• Condition.：New
• Fork Length：1070 mm
• Warranty：1 Year
• Marketing Type：New Product 2020
• Max.Grade Ability：15%
• Service Weight：5000kg
• Total Weight (Oil Included)：4700kg
• Place of Origin：Anhui, China
• Fork Width：125mm
• Certification：ISO,Ce
• Max.Lifting Height：3000mm
• Min. Turning Radius：2420mm
• Max. Travel Speed：19km,H
• Engine：Xinchang C490bpg 200
• Power Souce：Diesel Engine
• Transport Package：Nude
• Specification：3760*2090*1225 mm
• Trademark：HELI
• Origin：China
• HS Code：8401200000
• Production Capacity：10000000piece,Month

Basic Info.

Model NO. CPCD35 Lift height 3000~5000mm Condition New Condition. New Fork Length 1070 mm Warranty 1 Year Marketing Type New Product 2020 Max.Grade Ability 15% Service Weight 5000kg Total Weight (Oil Included) 4700kg Place of Origin Anhui, China Fork Width 125mm Certification ISO/Ce Max.Lifting Height 3000mm Min. Turning Radius 2420mm Max. Travel Speed 19km/H Engine Xinchang C490bpg 200 Power Souce Diesel Engine Transport Package Nude Specification 3760*2090*1225 mm Trademark HELI Origin China HS Code 8401200000 Production Capacity 10000000piece/Month

Product Description

Good Quality HELI 3.5 ton Diesel Forklift CPCD35 for Sale

product description

1. Transmission box, drive axle and other core parts are self-made by HELI, their box manufacturing and assembly equipment has reached international advanced level. The key parts of the box are imported , and box assembly failure rate is low, and has the best quality of domestic box.
2. With attachment of various types of the masts, all use double built-in hose pulley block, and have compact structure, beautiful appearance, good passage capacity , are first adopted in our country (Patent technology).
3. All lifting mast pipeline have equipped with explosion proof safety valve to ensure the safety of the lifting process.
4. Exhaust system use corrugated pipe to realize flexible connection with frame , and reduce the vibration and noise of the whole vehicle.
5. The steering axle and the frame connection place has done the shock absorption processing, and the shock of whole vehicle has reduced by 30 %.
6. Using intake muffler can suppress the intake pulse, so can reduce the intake noise.
7. Hose joint and transition joint in pipeline are sealed with cone form, which has good sealing effect.
8. Seal for the key parts of the cylinder are imported by NOK , which contribute to sealing reliable and quality stable.
9. Steering trapezium use optimal program, and the maximum error is less than 1°, can reduce tire wear and improve service life.

Applications: As lifting and transporting machineries, H2000 Series 2-3.5T Diesel / Gasoline / LPG IC Counterbalanced Forklift Trucks are widely used for loading, unloading and transporting the packaged goods in factories, warehouses, stations, wharves, ports and so on. With other attachments of fork lift trucks., they can be used for the handling of the bulk goods and unpackaged goods.


Technical Features

Model		CPCD35
Power type		Gasoline/LPG
Load capacity	kg	3500
Load center	mm	500
Max. lifting height	mm	3000
Overall length(without forks)	mm	2770
Overall width	mm	1285
Overall height(overhead guard)	mm	2170
Min. turning radius	mm	2420
Max. travel speed (with/without load)	Km/h	19/19
Service weight	kg	5000

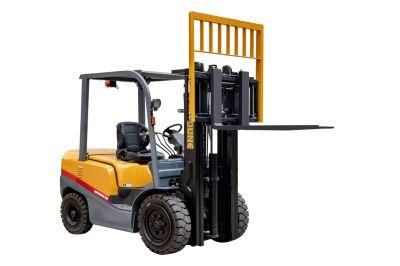

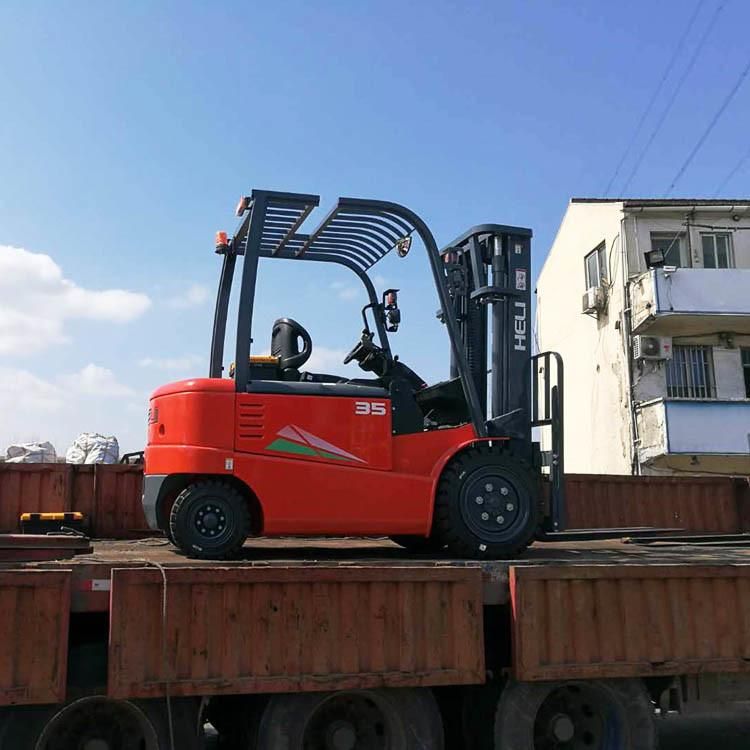

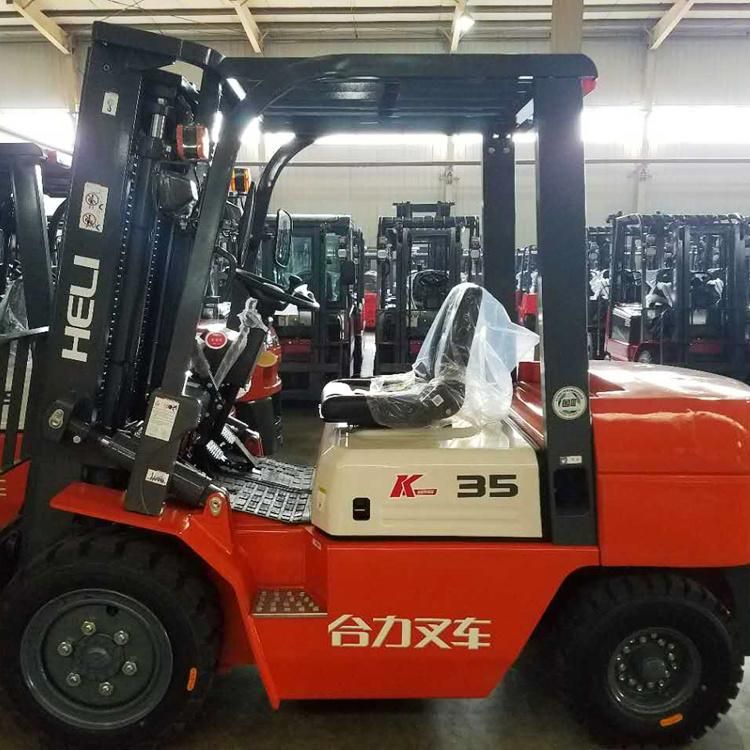

product image
