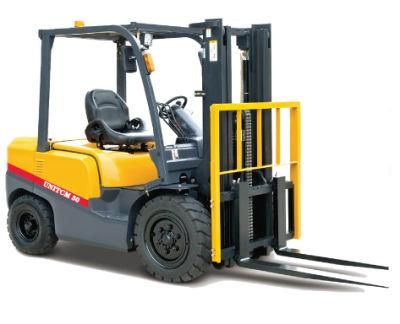

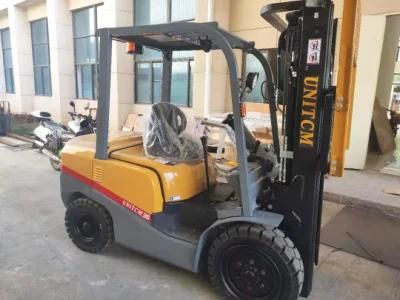

• Model NO.：FD40T
• Load center：500mm
• Lift height：>5000mm
• Condition：New
• Engine：Xinchai,Isuzu,Mitsubish
• Weight：5100kg
• Rated Capacity：4000kg
• Fork Size：1220X150X50mm
• Transmission Box Type：Automatic Transmission
• Tire Type：Pneumatic Tire
• Transmission：Hydraulic
• Optional：Attachment, Side Shifter, Sealed Cab, Mast, etc
• Mast：Duplex Mast (Triplex Mast Optional)
• Color：Customized
• Certification：CE,ISO
• Transport Package：Container
• Specification：2820x1300x2130mm(LXWXH)
• Trademark：UNITCM
• Origin：Cn
• HS Code：8427109000
• Production Capacity：4500sets,Year

Model  UNITFD40TSpecificationsPower Unit DieselOperator Type Driver/seatTransimission Box Type Electronic hydraulic transmissonRated Capacitykg4000Load Centermm500Max.Lifting Heightmm3000Tire Type Solid TyreTire Number 2Rear2Tire Size250-15-16PRRear 6.5-10-10PRPerformanceLifting SpeedLoadedmm/s480Unloaded520Lowering Speedmm/s480Unloaded450Travelling Speedkm/h19Unloaded20Max.Gradeability (Loaded)%21Max.Drawbar Pull (Loaded) kg18Mast Tilting Angle (Fwd/Bwd) deg6/12Free Lifting Heightmm150Turning Radius mm2560DimensionsOverall Length (with fork)mm2820Overall Widthmm1300Overhead Guard Heightmm2130Fork Size (LxWxT)mm1220×150×50Mast Height (Fork lowered)mm2140Battery (Voltage/Capacity)V/Ah12/90Truck Weightkg5100Fuel Tank CapacityL70EngineBrandModel C4954JG2Rated Powerkw/rpm42/265044.8/2450Rated torquen-m/rpm174/1600186/1800Number Of Cylinder 44Displacement 2.83





Shipping & Packing

About us
Xiamen Hifoune Machinery Co., Ltd. is located in the Xiangan industrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. Our main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipment. We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links
