• Model NO.：FD30
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*125mm*45mm
• Weight：4300kg
• Engine：Isuzu
• Wheelbase：1700mm
• Color：Decided by Buyer
• Max.Lifting Height：3000mm
• Rated Power：35.4kw,2500rpm
• Tire Type：Pneumatic
• Transport Package：Container
• Specification：2705mm*1225mm*2140mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

The specification of LTMG Diesel Forklift Truck 3 Ton ModelUNITFD30PerformancePower Unit DieselOperator Type Driver/seatRated CapacityKg3000Load Centermm500Max. Lifting Heightmm3000Mast Tilting Angle (Fwd/Bwd)Deg6/12Free Lift Heightmm145Turning Radiusmm2395Lifting Speed (Loaded/Unloaded)mm/s480/500Lowering Speed (Loaded/Unloaded)mm/s420/400Travelling Speed (Loaded/Unloaded)Km/h20/21Max. Gradeability (Loaded)%21Max. Drawbar Pull (Loaded)N17DimensionsOverall length (without fork)mm2730Overall Widthmm1220Overhead Guard Heightmm2145Fork Size (LxWxT)mm1070X125X45Mast Height (Fork lowered)mm2095Truck WeightKg4250Tyre Size (Front/Rear)  28×9-15-14PR/6.5-10-10PREngineBrand  ISUZUXINCHAIModel  C240C490Rated PowerKw/rpm35.4/250035.4/2500Rated torqueN-m/rpm137.7/1800160/1600Number of cylinder  4

 4Displacement  2.362.67
Product Features:

-Adopt TCM type transmission, steering axle

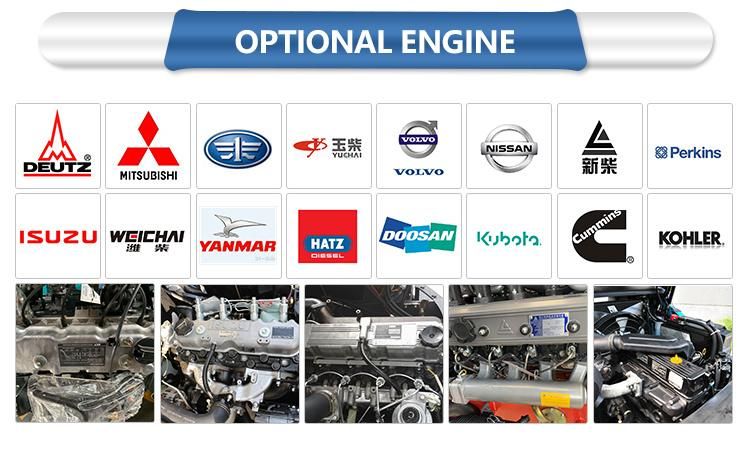

- Isuze engine and Mitsubishi engine are optional

-Equipped with famous brand parts, like Shimadzu pump and valve, Eaton pipe, Nok hydraulic cylinder seals, Toyota seat with safety belt, cooper tank and so on

-Attachments can be equipped as customer's requirements, such as paper roll, forklift rotator, clamp etc.
The most reasonable system matching after repeated verification
After 400 hours of continuous enhancement test
Adopt gradeability improving style transmission, compare with other models
Load sensing priority steering hydraulic system is adopted to reduce pressure loss of hydraulic system

FAQ

1.What Certificate do you have?

LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.

2.Can you customize and design as the clients' requirement?

LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.

3.How long is the warranty of your products?

Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4.Can you produce the products labeled with the client's brand?

With the authorization of the brand, we can OEM for our clients.

5.What payment terms do you accept?

On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment

6.What logistics waysd we can work for shipment ?

We can ship construction machinery by various transportation tools.

1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.

2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.

3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.

7.Delivery time:

Standard configuration products are always in stock. The production period of Customizing products is 30 days.



Welcome to contact us for further questions!
