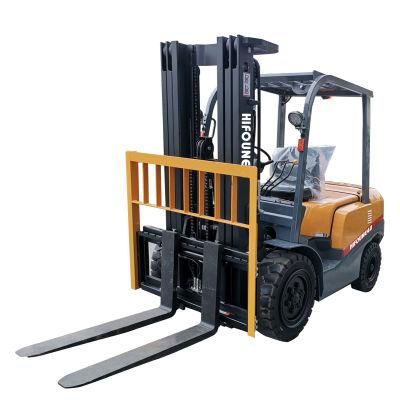

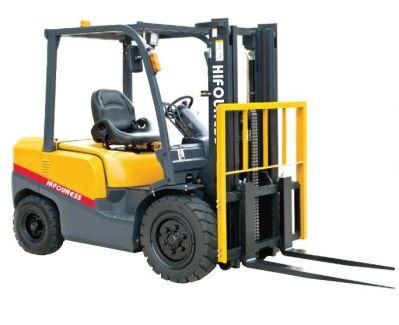

Higed Broke Handler Diesel Forklift

Xiamen Hifoune Technology Co., Ltd.
  • After-sales Service：Video Technical Support
  • Warranty：One Year or 2000hours
  • Cab Location：Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T

Base Info

  • Model NO.：FD35
  • Fuel：Diesel
  • Load center：500mm
  • Lift height：>5000mm
  • Condition：New
  • Engine：Xinchai,Mitsubishi
  • Weight：3380kg
  • Rated Capacity：2500kg
  • Fork Size：1220X122X40mm
  • Transmission Box Type：Automatic Transmission
  • Tire Type：Pneumatic Tire
  • Transmission：Hydraulic
  • Optional：Attachment, Side Shifter, Sealed Cab, Mast, etc
  • Mast：Duplex Mast (Triplex Mast Optional)
  • Color：Customized
  • Certification：CE,ISO
  • Transport Package：Container
  • Specification：2605x1150x2090mm(LXWXH)
  • Trademark：Hifoune
  • Origin：Xiamen, China
  • HS Code：8427109000
  • Production Capacity：4500sets,Year

Description

ModelUNITFD20TFD25TFD30TFD35TFD40TPower Unit DieselDieselDieselDieselDieselTransmission Type Electronic hydraulicElectronic hydraulicElectronic hydraulicElectronic hydraulicElectronic hydraulicRated Capacitykg20002500300035004000Load Centermm500500500500500MaX.Lifting Heightmm30003000300030003000Turning Radiusmm21702240240024602560Overall Length (without fork)mm26052605270527602820Overall Widthmm11501150124012401300Overhead Guard Heightmm20902090213021302130Fork Size (L×W×T)mm1220×122×401220×122×401220×125×451220×125×501220×150×50Mast Height (Fork lowered)mm20902090214021402140Higed Broke Handler Diesel Forklift
