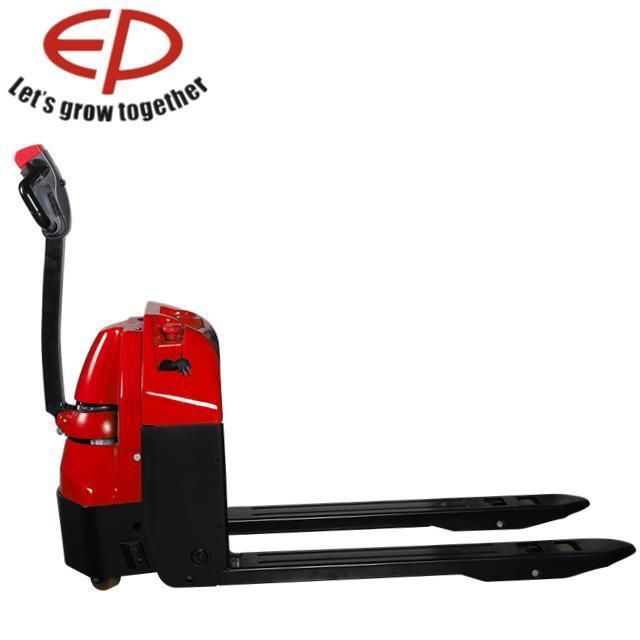

• Model NO.：EPT20-18EA
• Lift height：115mm
• Condition：New
• Rated Loading Capacity：1800kg
• Fork Length：1150mm
• Fork Width：150mm
• Fork Height,Lowered：85,(75)mm
• Overall Width：540,645,685mm
• Service Weight：285kg
• Battery Voltage：85ah,24V
• Certification：Ce,ISO9001
• Transport Package：Standard
• Specification：1625*645*715mm
• Trademark：EP
• Origin：Zhengjiang, China
• HS Code：8427109000
• Production Capacity：50000,Year

Basic Info.

Model NO. EPT20-18EA Lift height 115mm Condition New Rated Loading Capacity 1800kg Fork Length 1150mm Fork Width 150mm Fork Height,Lowered 85/(75)mm Overall Width 540/645/685mm Service Weight 285kg Battery Voltage 85ah/24V Certification Ce/ISO9001 Transport Package Standard Specification 1625*645*715mm Trademark EP Origin Zhengjiang, China HS Code 8427109000 Production Capacity 50000/Year

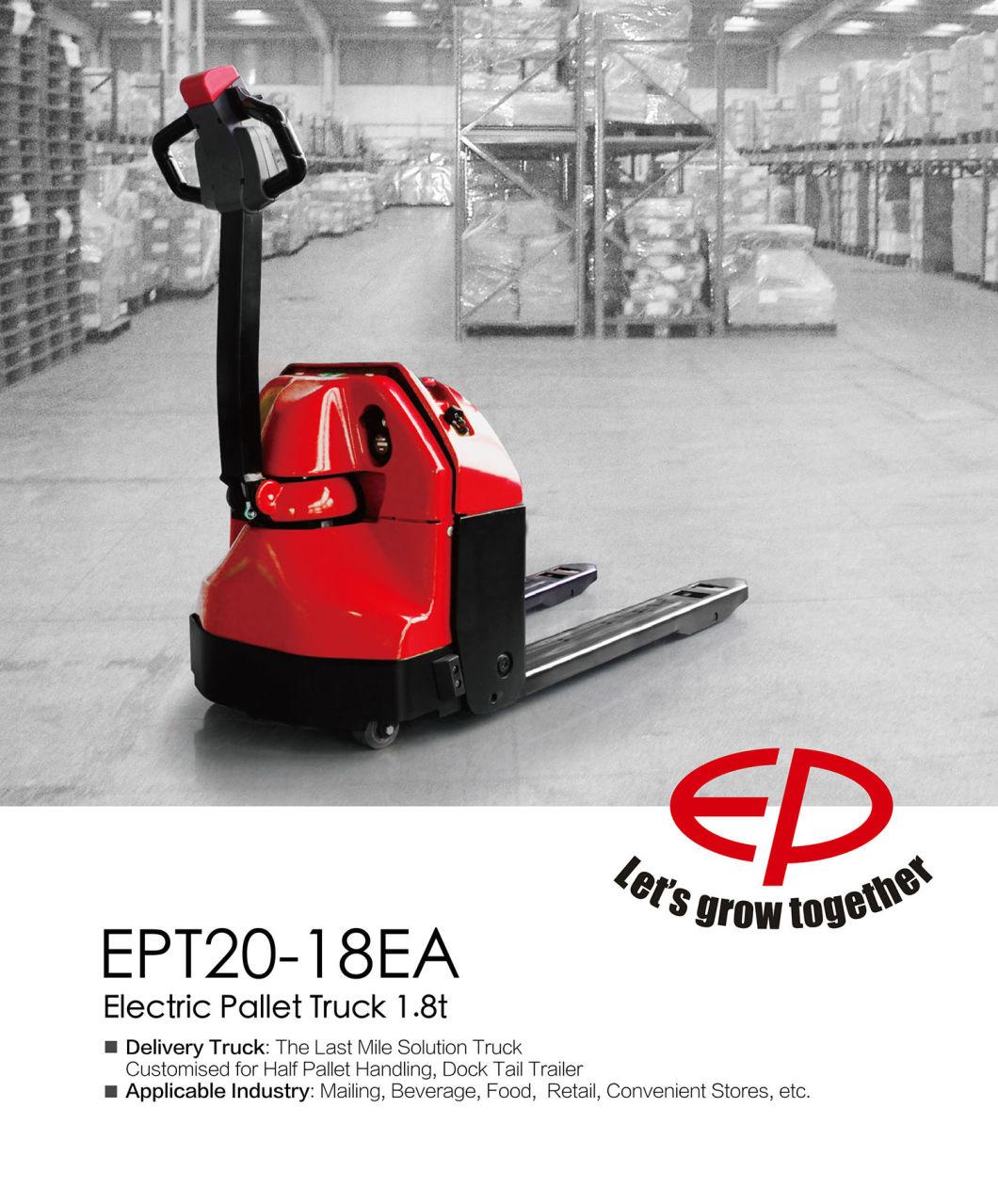

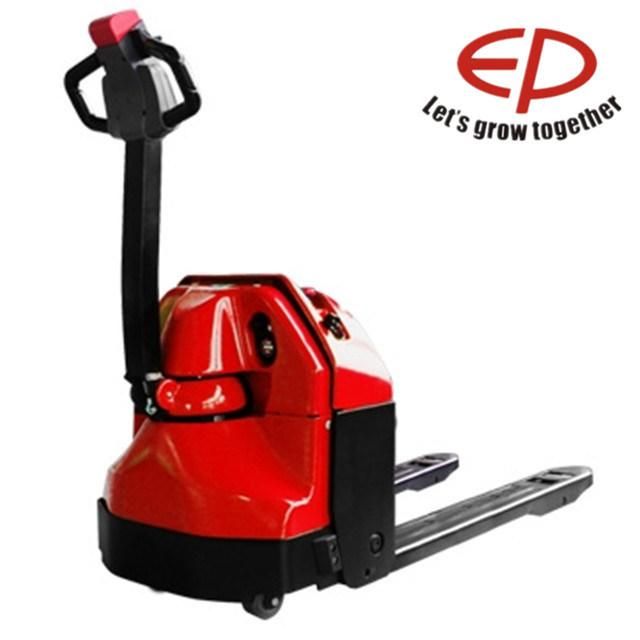

Product Description



Distinguishing mark
1.1	Manufacturer			EP
1.2	Model designation			EPT20-18EA
1.3	Drive unit			Electrics
1.4	Operator type			pedestrian
1.5	rated capacity	Q	kg	1800
1.6	Load center distance	c	mm	600
1.7	Load distance	x	mm	945
1.9	Wheelbase	y	mm	1270
Weight
2.1	Service weight (include battery)		kg	285
2.2	Axle loading, laden driving side/loading side		kg	770/1315
2.3	Axle loading, unladen  driving side/loading side		kg	230/55
Types,Chassis
3.1	Tyre type driving wheels/loading wheels			polyurethane/ polyurethane
3.2	Tyre size, driving wheels(diameter×width)		mm	Ф230x75
3.3	Tyre size, loading wheels(diameter×width)		mm	Ф74x88 / Ф80x60
3.4	Tyre size, caster wheels(diameter×width)		mm	Ф85x48
3.5	Wheels, number driving,caster/loading (x=drive wheels)		mm	1x+2/2 / 1x+2/4
3.6	Track width, front,driving side	b10	mm	435
3.7	Track width,rear,loading side	b11	mm	390/495/535

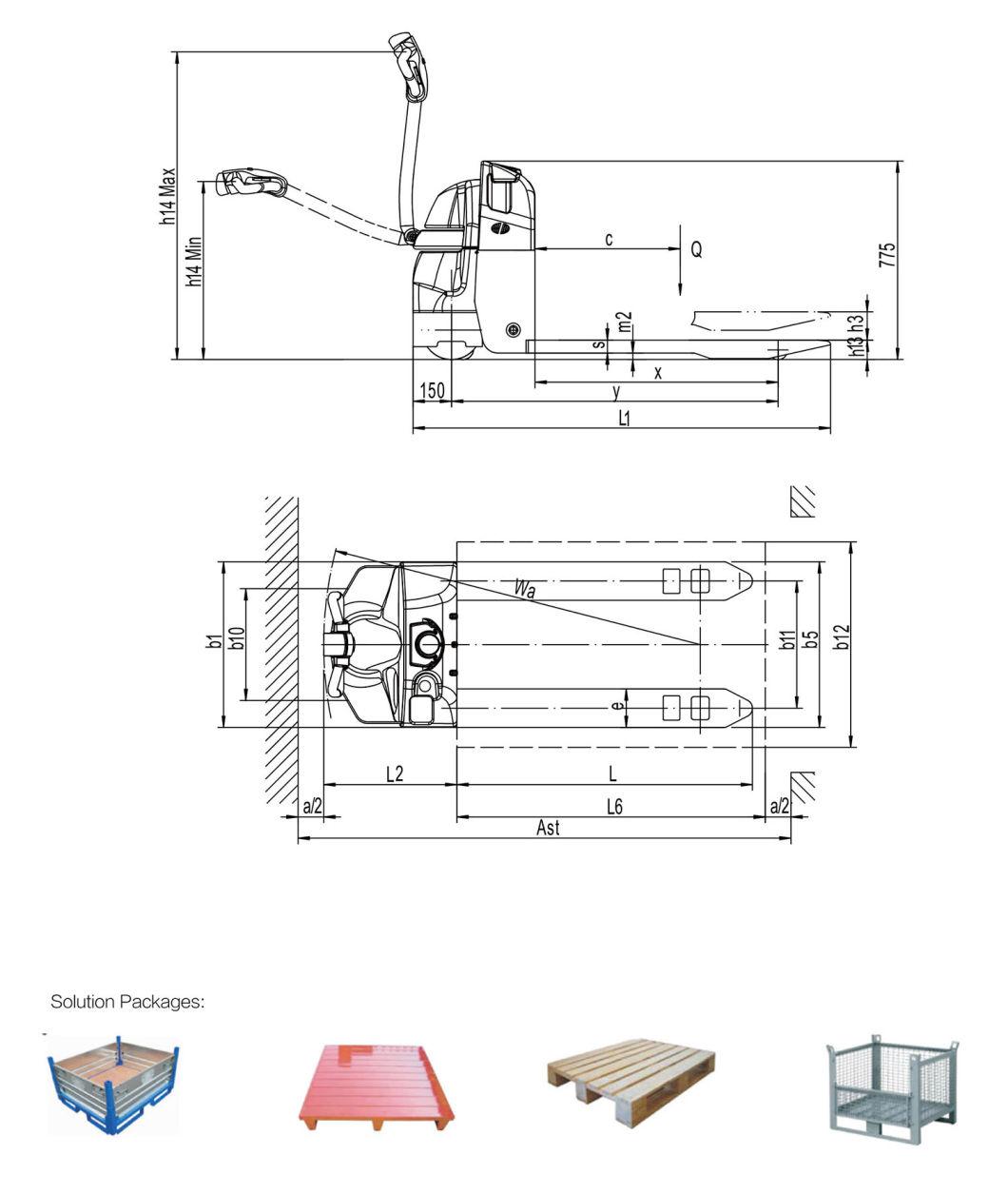

Dimensions
4.4	Lift height	h3	mm	108
4.9	Height drawbar in driving position min./max.	h14	mm	715 / 1200
4.15	Lowered height	h13	mm	85
4.19	Overall length	l1	mm	1625
4.20	Length to face of forks	l2	mm	475
4.21	Overall width	b1/ b2	mm	645
4.22	Fork dimensions	s/ e/ l	mm	50x150x1150
4.25	Distance between fork-arms	b5	mm	540/645/685
4.32	Ground clearance, center of wheelbase	m2	mm	35
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	1720
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	1920
4.35	Turning radius	Wa	mm	1465
Performance data
5.1	Travel speed, laden/ unladen	km/ h	km/h	5.5/6
5.2	Lifting speed, laden/ unladen		m/ s	0.051/ 0.060
5.3	Lowering speed, laden/ unladen		m/ s	0.032/ 0.039
5.8	Max. gradeability, laden/unladen		%	6/16
5.10	Service brake type			Electromagnetic
Electric-engine
6.1	Drive motor rating S2 60 min		kW	1.1
6.2	Lift motor rating at S3 15%		kW	0.84
6.3	The maximum allowed size battery		mm	269x182x300
6.4	Battery voltage/nominal capacity K20		V/ Ah	2x 12/85
6.5	Battery weight		kg	25 x2
Addition data
8.1	Type of drive control			AC
10.5	Steering type			Mechanical
10.7	Sound pressure level at the driver's ear		dB(A)	74
