• Model NO.：YL600B
• Lift height：>5000mm
• Condition：New
• Rated Load Kg：600
• Clamping Method of Oil Drum：Babble Type
• Net Weight (Kg)：650
• Transport Package：Pallet
• Trademark：CHEESON
• Origin：China
• HS Code：8427109000
• Production Capacity：5000sets,Year

Basic Info.

Model NO. YL600B Lift height >5000mm Condition New Rated Load Kg 600 Clamping Method of Oil Drum Babble Type Net Weight (Kg) 650 Transport Package Pallet Trademark CHEESON Origin China HS Code 8427109000 Production Capacity 5000sets/Year

Product Description

Product Description

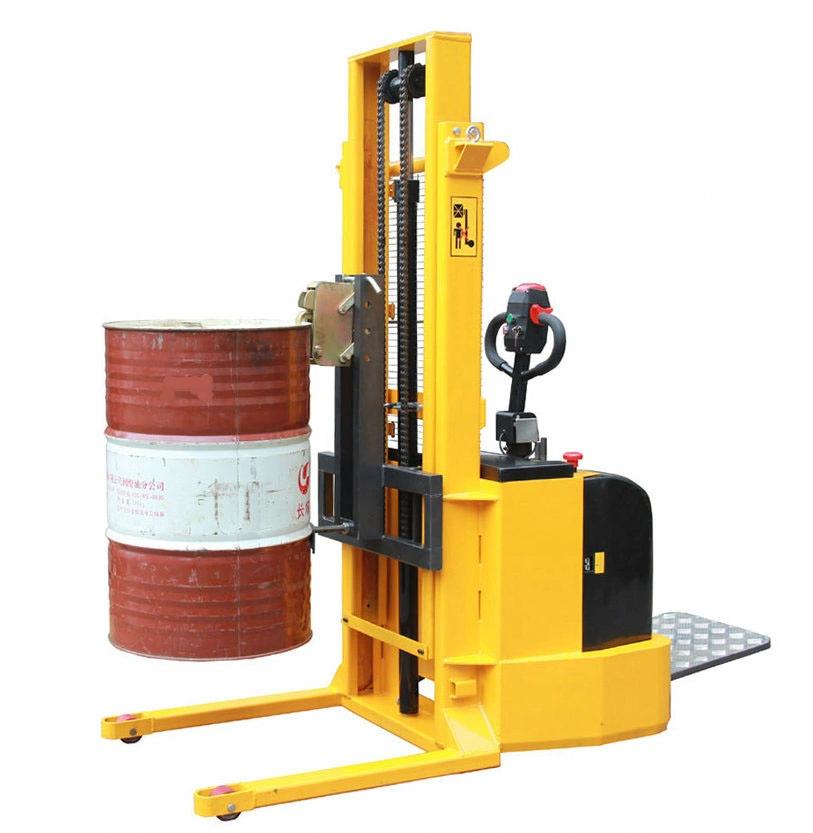

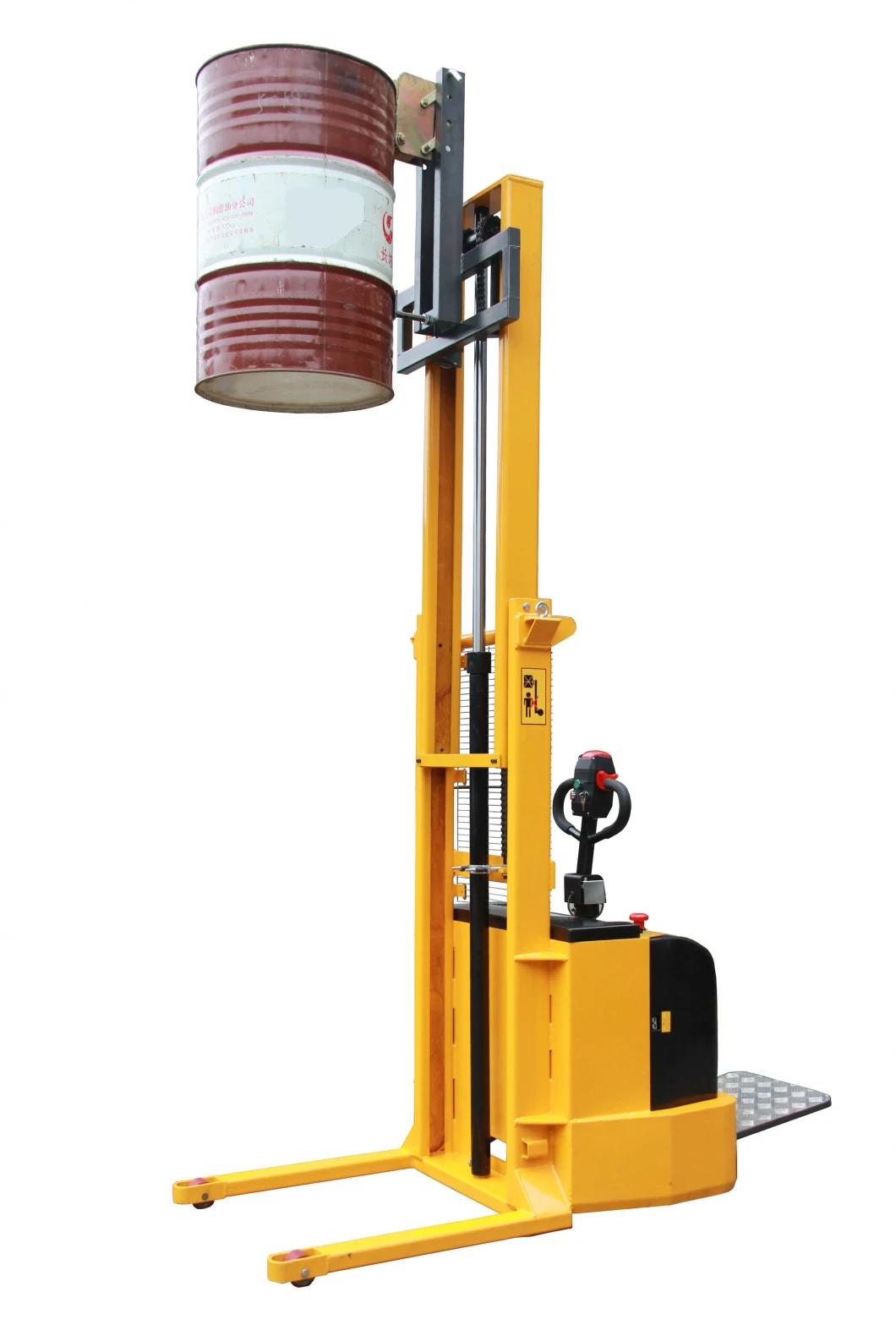

★Using a counterbalanced structure, rear-mounted pedals, stand-on driving mode, man-machine integrated multi-function control handle operation, has the characteristics of lightness and flexibility.
★The car adopts the special walking control system for imported electric vehicles, and the stepless speed governor controls the walking speed, which ensures stable walking and reliable braking.
★The all-electric oil drum stacker adopts electric drive, mouth-type olecranon clamping, and electric lifting.
★Suitable for handling, loading and unloading, and dumping of open or closed iron drums and closed plastic drums, open plastic drums (please specify when ordering).
technical parameter
Type number :YL600B
Rated load (KG) 600
Driving style: stand-on driving
Clamping method of oil drum
Drive form electric
Braking method: electromagnetic brake
Drive motor power (kw) 1.2
Drive wheel specification (PU wheel) (mm) ¢250×80
Increase motor power (kw) 2.2
Lifting height (mm) 2400
Flip angle 360°
Battery parameters (V/AH) 24/210
Battery voltage/capacity (V/A) 24/30
Vehicle noise db(A) <70
Vehicle length (mm) 2050
Vehicle width (mm) 980
Vehicle height (mm) 1870
Minimum turning radius (mm) 1700
Net weight (KG) 650
