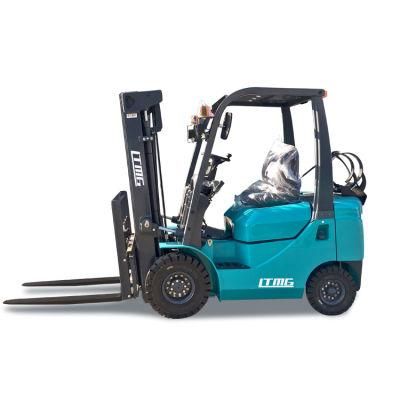

• Model NO.：FG15
• Fuel：Gasoline
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Power Type：LPG&Gasoline
• Fork Size：920*120*35mm
• Weight：2820kg
• Wheelbase：1400mm
• Tire Type：Pneumatic
• No. of Cylinder：4
• Transmission：Hydraulic
• Color：Customize
• Transport Package：Container
• Specification：2245mm*1070mm*2060mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

SpeedMax Travelling   full/no loadkm/h14/14.5Lifting     full/no load        mm/s440/500Lowering     full/no loadmm/s370/530Max.drawbar pull                  Power shift T/M   full/no loadkg1130/690Gradeability at 1.6km/h         Power shift T/M full/no load%21/18Truck weight  kg2550Weight  distributionFull  load              front/rear        kg3580/470No  load               front/rear      kg1110/1440Tires                                      Numberfront/rear2/2Modelfront axle 6.50-10-10PRrear axle5.00-8-10PRWheelbase                              mm1425Tread    Front/rearmm890/900Ground clearance                 At lowest point(mast)                 mm115Framemm105Brake                                           Service  brake Hydraulic-foot pedal  Parking brake Mechanical-hand leverBattery                                         Voltage/capacityV/AH12/80Engine                                         Model Nissan K21Rated powerPS(kw/rpm)47/2250(34.6/2250)Rated torquekg-m    max.(N.m)15.7/1600(153/1600)Number of cylinders 4PlacementL2.065Fuel tank capacityL50Transmission    Speed forward/backwardPower shift T/M 1-1 power shift T/M
  Operating pressure                   Hydraulic system pressure         kg/cm²180
