Forklifts & Parts

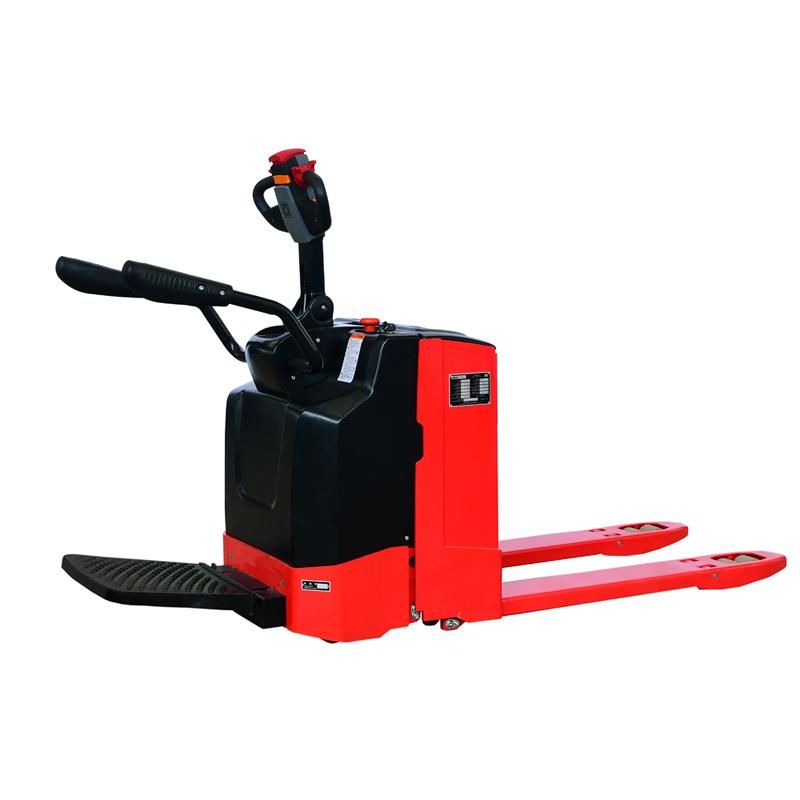

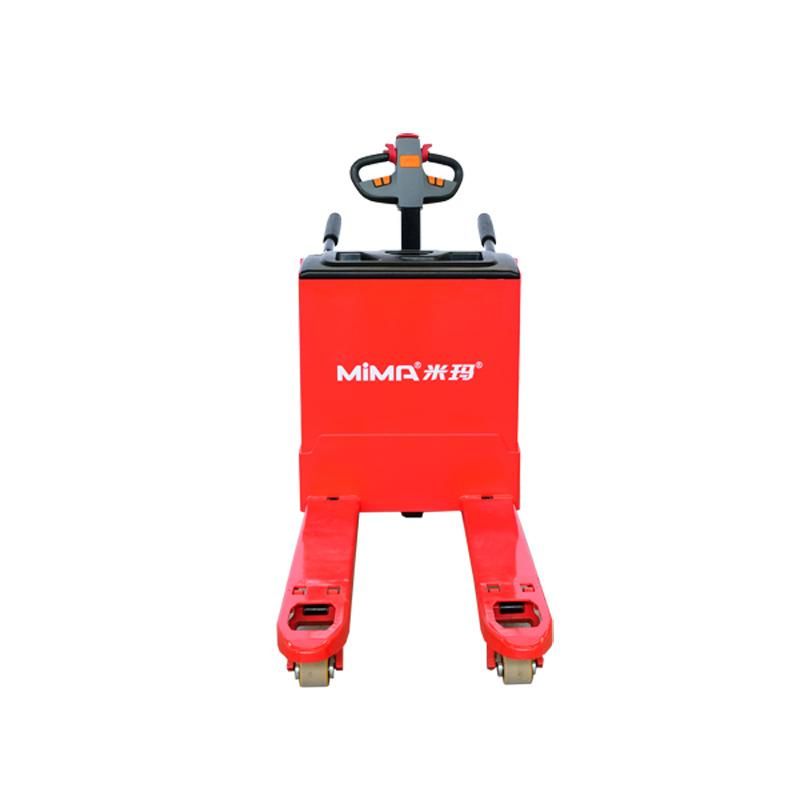

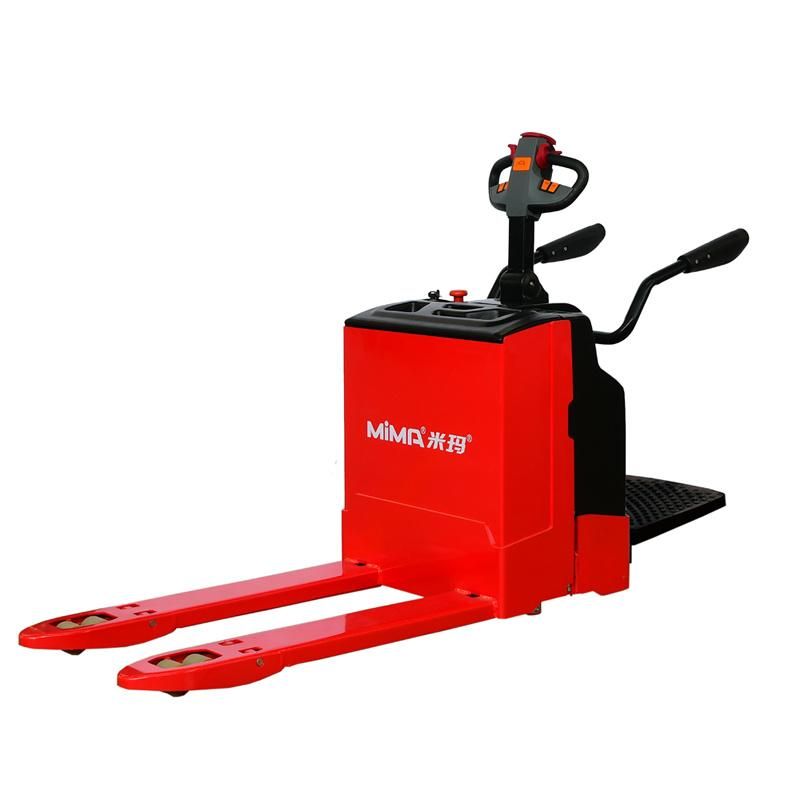

AC Driving Motor Electric Pallet Truck with Arm Rest

Banyitong Science & Technology Developing Co., Ltd.
  • Type:Powered Pallet Truck
  • Power:AC Motor
  • Load Capacity:1T - 5T
  • Fuel:Electric
  • Load center:500mm
  • Lift height:3000~5000mm

Base Info

  • Model NO.:ME
  • Condition:New
  • Controller:Curtis
  • Drive Motor:AC Motor
  • Lift Motor:DC Motor
  • Color:Customized
  • Operation Type:Stand-on
  • Working Time:5-6 Hours
  • Charging Time:7 Hours
  • Max. Lifting Height:2000mm
  • Power Type:Battery
  • Brand:Mima
  • Transport Package:NUDE PACKAGE
  • Specification:SGS, ISO
  • Trademark:MiMA
  • Origin:Hefei
  • HS Code:8427102000
  • Production Capacity:1000PCS,YEAR

Description

Basic Info.

Model NO. ME Condition New Controller Curtis Drive Motor AC Motor Lift Motor DC Motor Color Customized Operation Type Stand-on Working Time 5-6 Hours Charging Time 7 Hours Max. Lifting Height 2000mm Power Type Battery Brand Mima Transport Package NUDE PACKAGE Specification SGS, ISO Trademark MiMA Origin Hefei HS Code 8427102000 Production Capacity 1000PCS/YEAR

Product Description

           AC Driving Motor Electric Pallet Truck with Arm Rest


Product details


Main features
1.EPS make operation easy and safe.

2.Arm rest safety function: when the arm rest is put down, the traveling  speed will decrease 30-40%. It increase operator safety.

3.The dismountable pedal make it convenient to change the driving wheel.

4.The turnning speed limit protect forklift from turnning over.

5. Pull Rod lifting provides a long working life.

6.The AC motor is maintenance free.


AC Driving Motor Electric Pallet Truck with Arm Rest
AC Driving Motor Electric Pallet Truck with Arm Rest
AC Driving Motor Electric Pallet Truck with Arm Rest

Brand MIMAMIMAMIMAMIMA
Model ME20ME25ME30 ME40
Power type ElectricElectricElectricElectric
Operation type Stand onStand onStand onStand on
Service weight(incl. battery)kg676676860900
Rated capacitykg2000250030004000
Load centremm500500500500
Lift heightmm120120110110
Fork sizemm1150/170/561150/170/561150/175/751150/205/75
Fork outside widthmm680680685685
Turning radius, pedal on/offmm2065/17302065/17302220/18002170/1750
Aisle width for pallet 800×1200mm, pedal on/offmm2550/21002550/21002200/36402200/2640
Aisle width for pallet 1000×1200mm, pedal on/offmm2500/20502500/20502150/25902150/2590
Driving speedkm/h6/66/65/65/6
Lifting speedmm/s40/5540/5529/3323/33
Lowering speedmm/s35/3535/3523/1825/18
Brake type ElectromagneticElectromagneticElectromagneticElectromagnetic


Company introduction
AC Driving Motor Electric Pallet Truck with Arm Rest

BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO., LTD.

Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service. We are looking forward to better cooperation all over the world.


Our workshop and warehouse
AC Driving Motor Electric Pallet Truck with Arm Rest
AC Driving Motor Electric Pallet Truck with Arm Rest
AC Driving Motor Electric Pallet Truck with Arm Rest



Many of our models are in stock, for more details please feel free to contact us.

Exhibition
AC Driving Motor Electric Pallet Truck with Arm Rest
