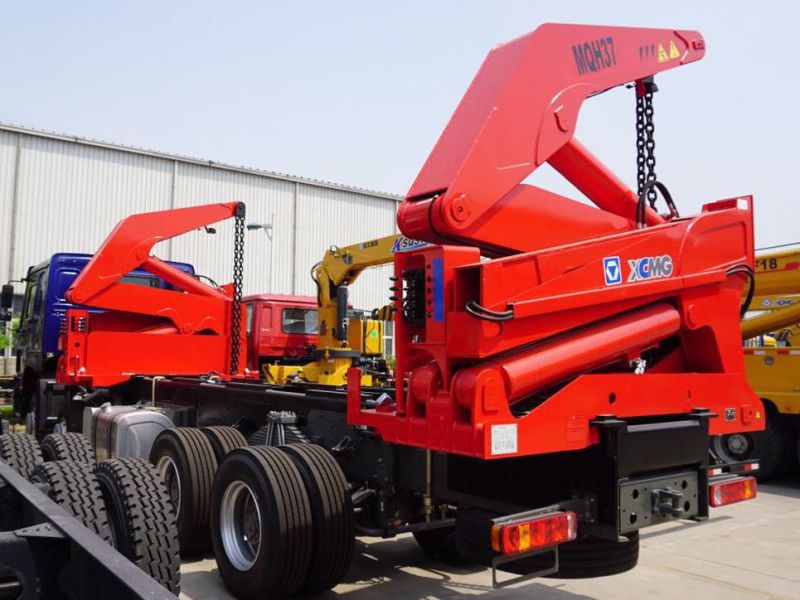

• Model NO.：MQH37A
• Specification：14650*2800*2880mm
• Origin：China
• Production Capacity：300 Units,Month

Basic Info.

Model NO. MQH37A Specification 14650*2800*2880mm Origin China Production Capacity 300 Units/Month

Product Description

Product Feature
With strong power and rich attachments, the    skid steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.
Main Parameters

Item	Unit	Parameters
Max. lifting capacity	kg	37000
Max. working range	mm	4000
Max. stabilizer outreach	mm	3200
Curb mass	kg	14500
Mass of sidelifter	kg	7250
Maximum gross mass	kg	40000
Outline dimension of semi-trailer(L×W×H)	mm	14100×2500×4000
Outline dimension of sidelifter(L×W×H)	mm	1020×2500×2490
Wheel base	mm	8000+1350+1350
Track(front axle/rear axle)	mm	1820/1820/1820
Front overhang / Rear overhang	mm	-/2370
Approach angle/Departure angle	°	-/13
Model	--	V2403-M-DI-E3B-CSL-1 Kubota V2403-M-DI-E3B-CSL-1
Power/rotation speed	kW/r/min	36.5/2600
Emission standard	--	Off-road, Euro III



Type	Side Lifting RH Std, LH Option
Lift capacity	37 tonne
Design Standard	GB/T 3811-2008
Container type	20 foot, 40foot
Material	High Tensile Steel
Optimum Gap Trailer to Container	400 mm
Maximum Gap Trailer to Container	1.5m
Maximum Crane Reach	4 m center to center
Maximum Stabiliser Extension	3.2 m center to center

Trailer

Length	14100 mm
Width	2480 mm
Height Cranes Lowered(no container)	4000 m
Maximum Gross Vehicle Mass	40,000 kg
Unladen Kerb Mass	7250 kg
Maximum Kingpin Mass	16,000 kg
Axle Make	Fuwa
Maximum Rear Axle Group Mass	24,000 kg
Tyres	11.00R20 12PR
Spring Suspension	-/8/8/8
ABS Make	WABCO Vehicle Control Systems
ABS Type	WABCO  4S/2M
Landing Legs	2 Speed, 28 tonne Static
Kingpin Size	90mm

Electrical Control System

Remote Control	NBB ,Germany
Voltage	12V

Others

Cable carrier

IGUS
