• Model NO.：LG20B
• Fuel：Electric
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Transport Package：Naked or Wooden Case
• Specification：2100*1100*2055mm
• Trademark：cruking
• Origin：China
• HS Code：8427109000
• Production Capacity：100sets,Month

ModelLG20BPowertypeBatteryRatedcapacity(Kg)2000JLoadcentre(mm)500h1STDMax.liftingheight(mm)3000h3Freeliftingheight(mm)160L3*W*TForksize(mm)1070×120×40Masttiltangle(deg)6/12XFrontoverhang(mm)460R1Min.turningradius(mm)2150Min.width for pallets 1,000×1,200 crossways (L×W)(mm)3810Min.width for pallets 800×1,200 lengthways (L×W)(mm)4010Max.travelingspeed(km/h)14Max.liftingspeed(mm/s)(load/unload)280/440Max.gradient(%)12/15STD Dead weight(kg)3900S/PTread(front/rear)(mm)950/930L2Axledistance(mm)1500Min.groundclearance, m1Frame(mm)173TireFront7.00-12-12PRRear18×7-8-14PRMotorTravel(AC)(kW)11Lift(AC)(kW)12Battery(V/Ah)48/600Workingpressure(Mpa)17.5CONTACT INFORMATION

Esain Tan
Sales Manager
008617750658531

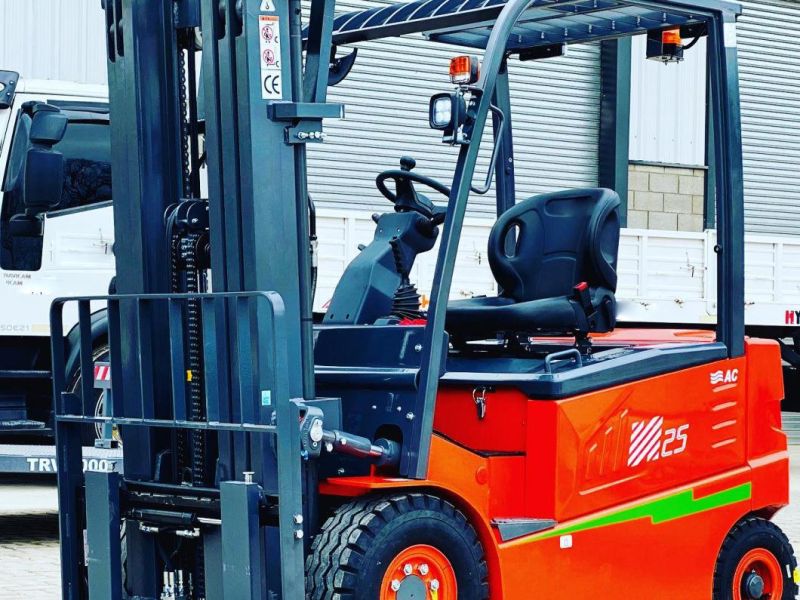

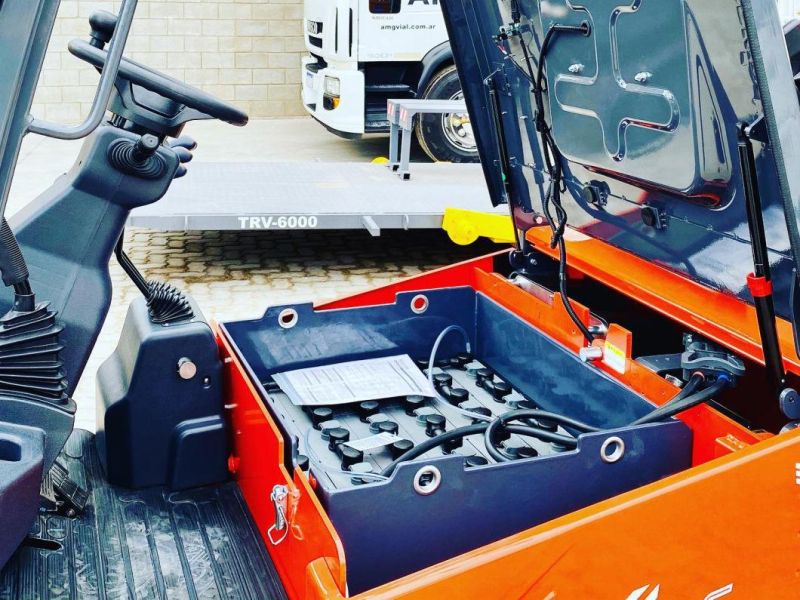

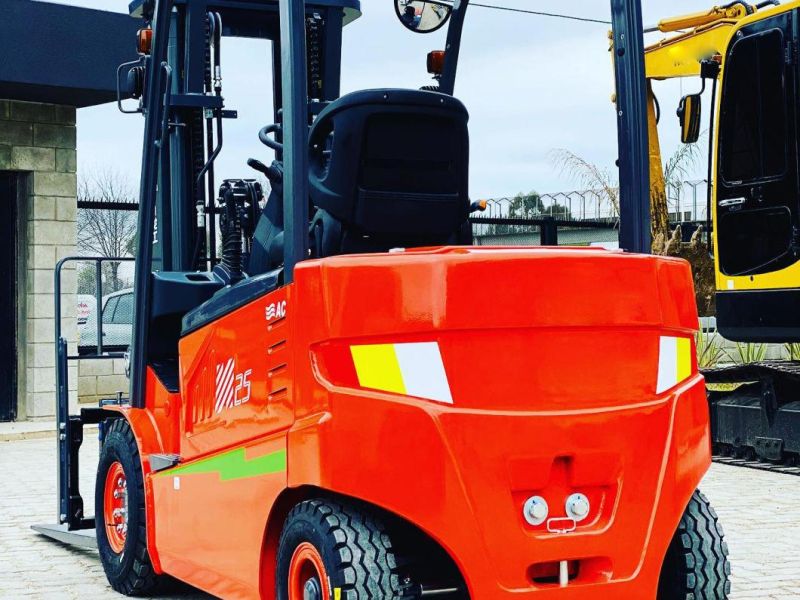

DETAIL PHOTOS

COMPANY PROFILE
