• Model NO.：ES10M , ES15M
• Lift height：1600~3300mm
• Condition：New
• Model：Esm
• Operate Type：Walkie
• Wheelbase：1208mm
• Wheels Number,Front/Back(X=Driven)：1+1,4
• Fork Size：1150*160*50mm
• Turning Radius：1378mm
• Travel Speeds：5.0km,5.5h
• Lift Speeds：0.12mm,0.22s
• Lowering Speeds：0.12mm,0.11s
• Battery Voltage/Rated Capacity：24V,80ah
• Controller：Curtis
• Service Brake：Regenerating
• Parking Brake：Electrimagnetic
• Tyre Type：PU
• Max. Gradeability：3.0,10.0%
• Transport Package：International Packing Way with Thick Plastic Film.
• Specification：1716*800*3805mm
• Trademark：NOELIFT
• Origin：China
• HS Code：84271020
• Production Capacity：500 Pieces,Month

Basic Info.

Model NO. ES10M / ES15M Lift height 1600~3300mm Condition New Model Esm Operate Type Walkie Wheelbase 1208mm Wheels Number,Front/Back(X=Driven) 1+1/4 Fork Size 1150*160*50mm Turning Radius 1378mm Travel Speeds 5.0km/5.5h Lift Speeds 0.12mm/0.22s Lowering Speeds 0.12mm/0.11s Battery Voltage/Rated Capacity 24V/80ah Controller Curtis Service Brake Regenerating Parking Brake Electrimagnetic Tyre Type PU Max. Gradeability 3.0/10.0% Transport Package International Packing Way with Thick Plastic Film. Specification 1716*800*3805mm Trademark NOELIFT Origin China HS Code 84271020 Production Capacity 500 Pieces/Month

Product Description

1 ton 1.5 ton economic type electric stacker

Features

1: Smart body, with attractive appearance. High-strength frame designed for tough pallet handling tasks.
2: Lower consumption, Lower service cost, while higher performance.
3: 24V/65AH(80AH optional) maintenance free battery contributes to strong power and easier operation.
4: Compact structure and reasonable layouts provides steadiness and durability during operation.

Performance

1: Ergonomically designed and built Handle is increasing your comfort during operation. Dustproof and sealing structure prevent it from dust pollution damages and improve service life.
2: Intelligent and modular controlling system ensures the steadiness and safety for walking, lifting, lowering and braking.
3: Handle is utilized for easier operation and less turing radius, suitable for confined space and narrow aisle.

Safety

1: The Anti-Reverse safety button mounted at the top of the handle reverses the truck direction to prevent the operator from being caught between the truck and the obstacle on unexpected occasions.
2: Intelligent controller takes protection measures in case of over voltage, low voltage, over current, over temperature and short circuit occasions.
3: Especially innovated speed deceleration system automatically reduces the travel speed when turning and greatlyimproved the loading stability, avoiding possibility of load tipping over and making operate safer.(Optional)

Serviceability

1: Self-Diagnostics provided direct fault code readout during operation and start up, which is ease of service andmaintenance.
2: 24V/65AH(80AH optional) maintenance free battery contributes to strong power and easier operation, meeting most requirements for light and medium duty applications
3: Built-in charger practically eliminates contamination entry, which can result in failure.

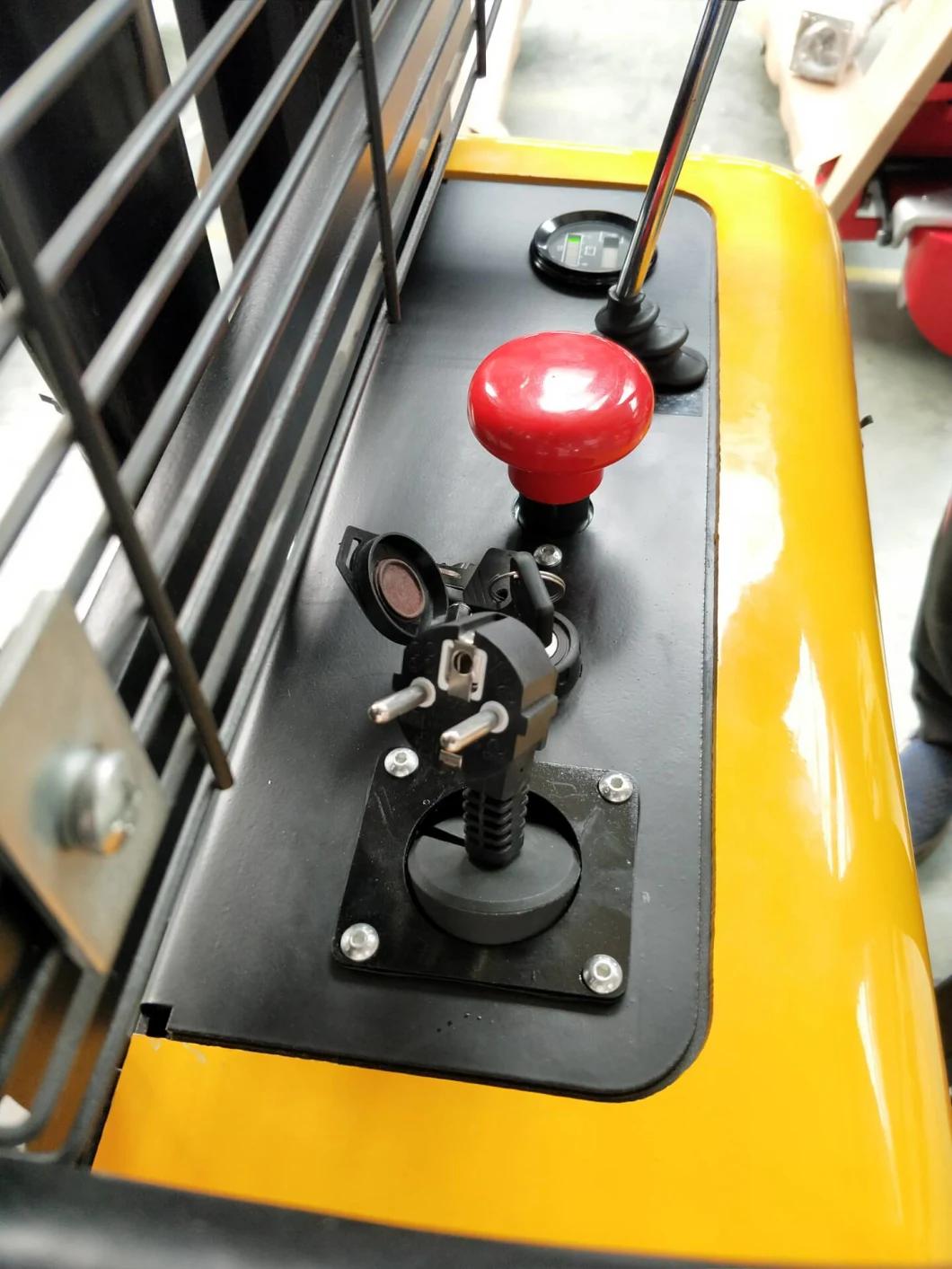

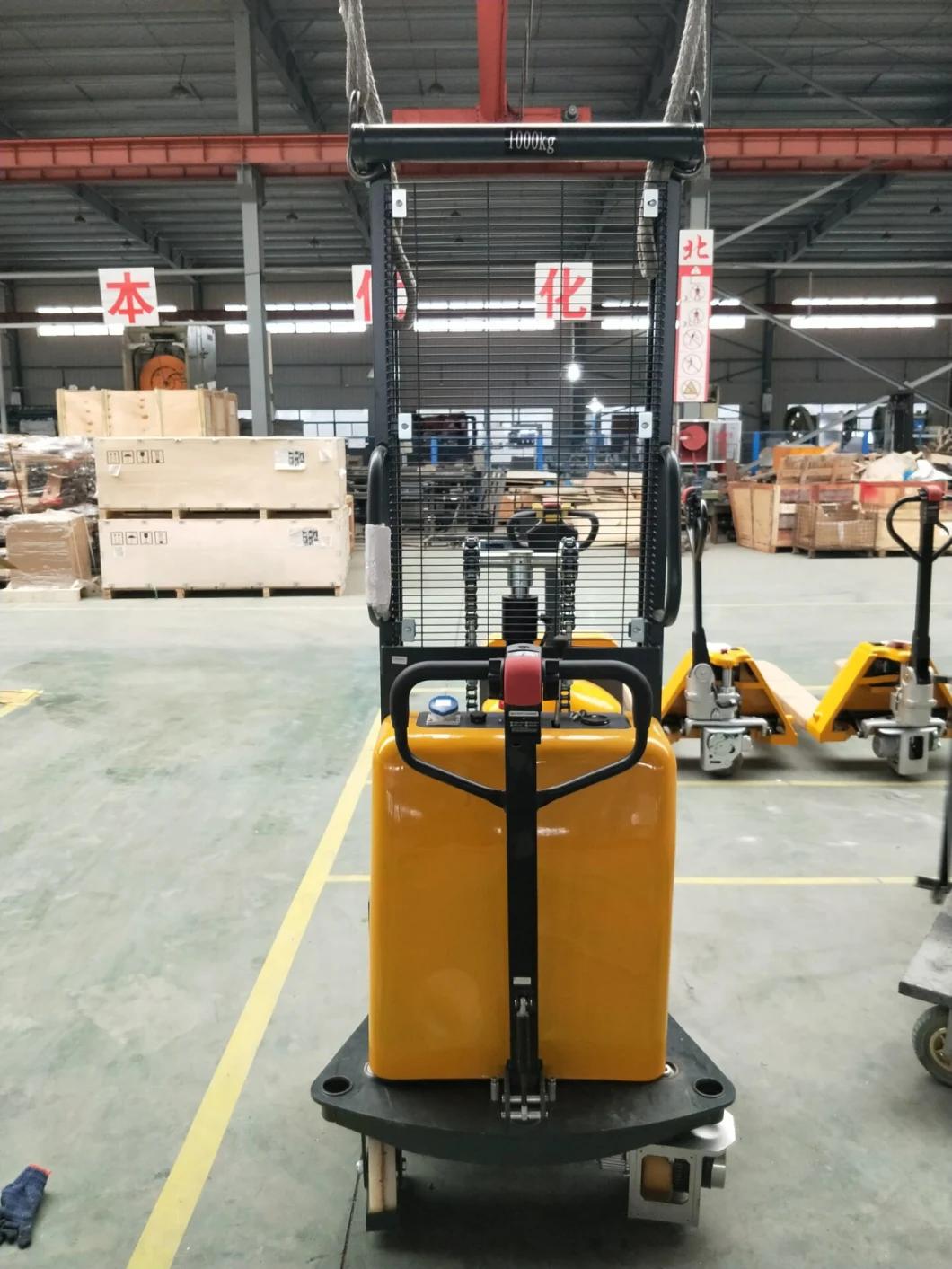

details











our company

NOELIFT EQUIPMENT CO.,LTD, as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1ton to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompassess close to 100 different models.







contact

Ms. NOE WANG
Web: noelift.en.made-in-china.com
Hangzhou noelift equipment co.,ltd

1 ton 1.5 ton economic type electric stacker

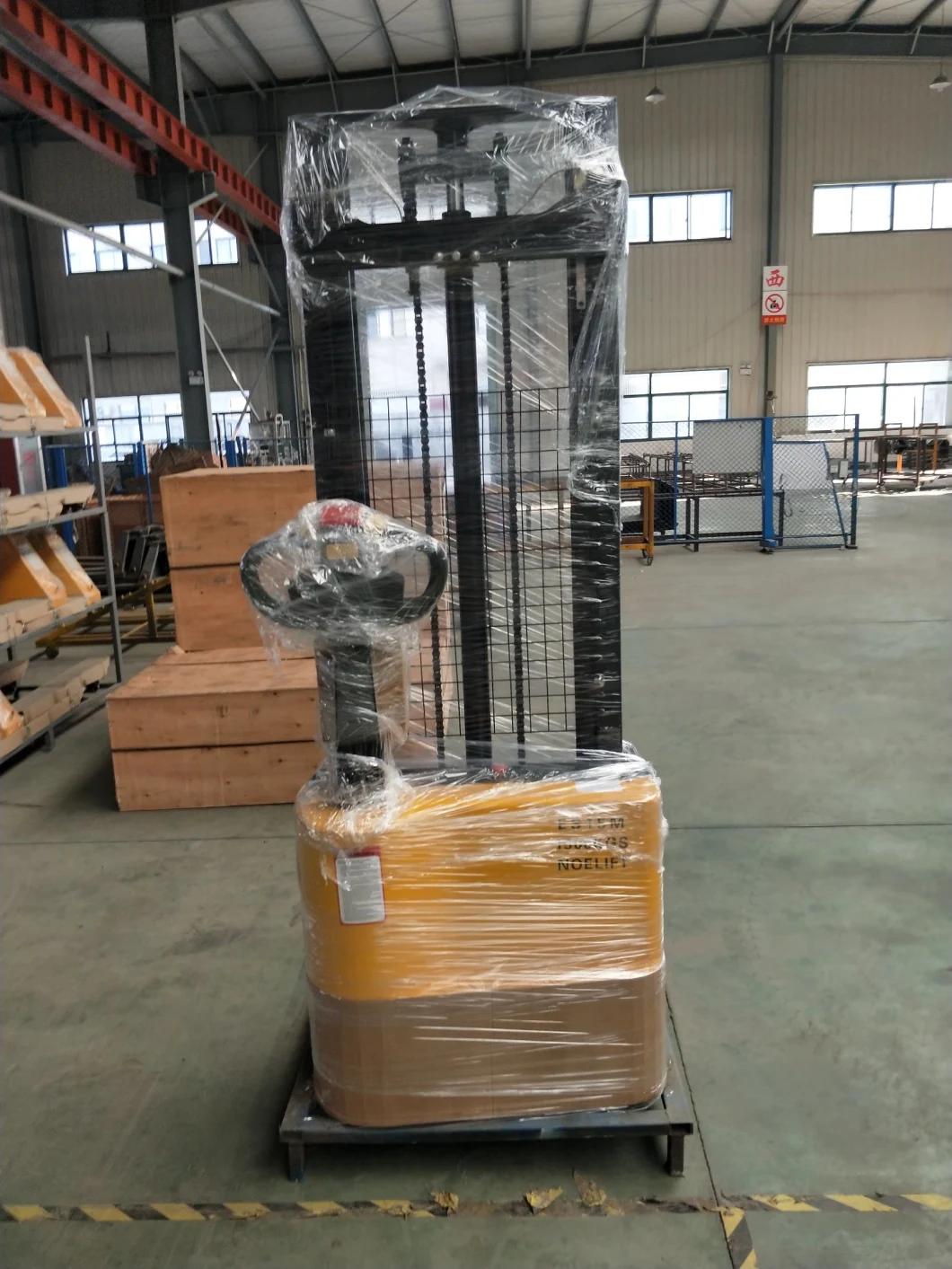

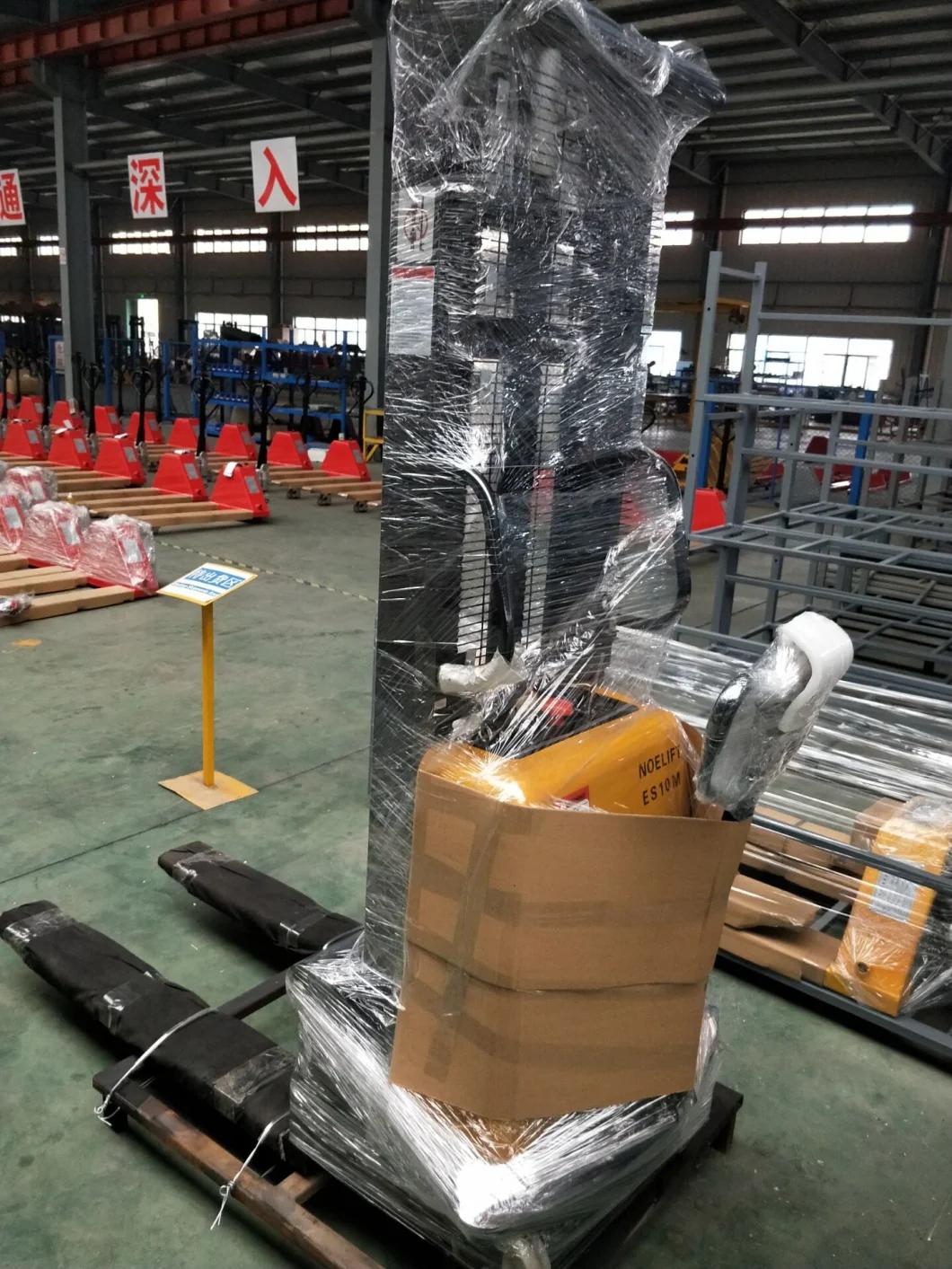

International packing way with thick plastic film.

Thanks for coming to our Noelift company. if you need more information or technical assistance or any comment or questions, please feel free to contact with me.
