2020 Heli New Forklift 2.5 Ton Cpcd25 with Best Price
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Cab Location：Not Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：2.5 Ton
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：CPCD25
- Lift height：3m
- Condition：New
- Power Type：Diesel
- Min. Turning Radius：2940mm
- Max. Travel Speed (with/Without Load)：18,23km,H
- Service Weight：4750kg
- Tyre Type：Pneumatic
- Gradeability：17,20%
- Engine：Chinese or Japanese Isuzu Engine
- Fork：45X125X1070mm
- Ground Clearance：115mm
- Transport Package：Nude Package
- Specification：2910x1480x2515 mm
- Trademark：Heli
- Origin：China
- HS Code：84272090
- Production Capacity：10000
Description
Model /Modelo
Unit/ unidad
CPCD20
CPCD25
Power type/tipo de alimentación
Diesel
Diesel
Rated capacity/ La capacidad nominal
kg
2000
2500
Load center/ centro de carga
mm
500
500
Lift height/ altura de elevación
mm
3300
3300
Free lift height/ Altura de elevación libre
mm
120
120
Mast tilt angle (Forward/Backward)/Ángulo de inclinación del mástil (adelante / atrás)
Deg
5°/15°
5°/15°
Travel speed (with/without load) /Velocidad de desplazamiento (con / sin carga)
km/h
18/23
18/23
Max. gradeability (with load)/ Max. Pendiente máxima (con carga)
%
20/20
17/20
Min. turning radius/ Min. radio de giro
mm
2900
2940
Fork/ tenedor
Length/ longitud
mm
1070
1070
Width/ ancho
mm
125
125
Thickness/ espesor
mm
45
45
Overall dimensions(without forks)/Dimensiones generales (sin horquillas)
mm
2845×1480×2515
2910×1480×2515
Self.weihgt/ Auto. weihgt
kg
4500
4750
Engine/ motor
Model/ modelo
A495BPG
A495BPG
Manufacturer/ fabricante
Xingchang
Xingchang
Rated output/ nominal de salida
kw
42/2650
42/2650
Rated torque/ par nominal
N.m/r/min
168/1800
168/1800
Displacement/ desplazamiento
L
2.97
2.97
Contact Me: Mia Zhu

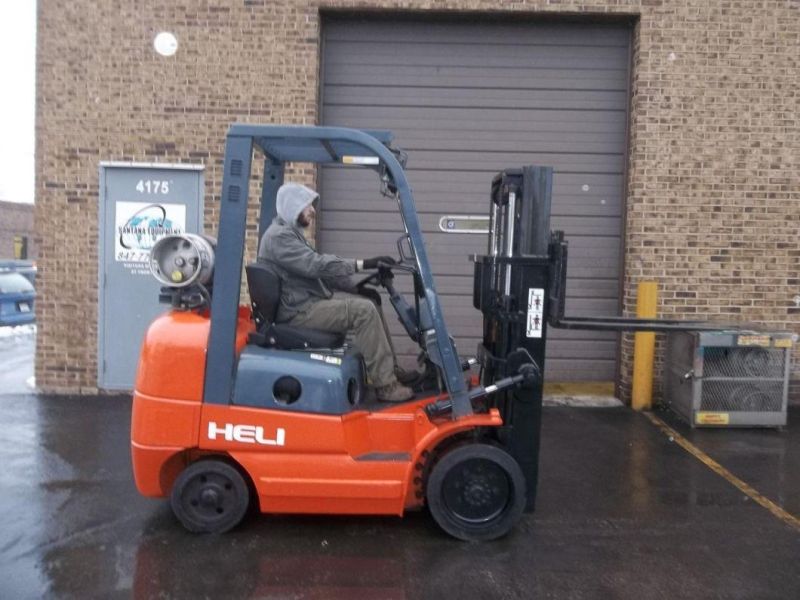

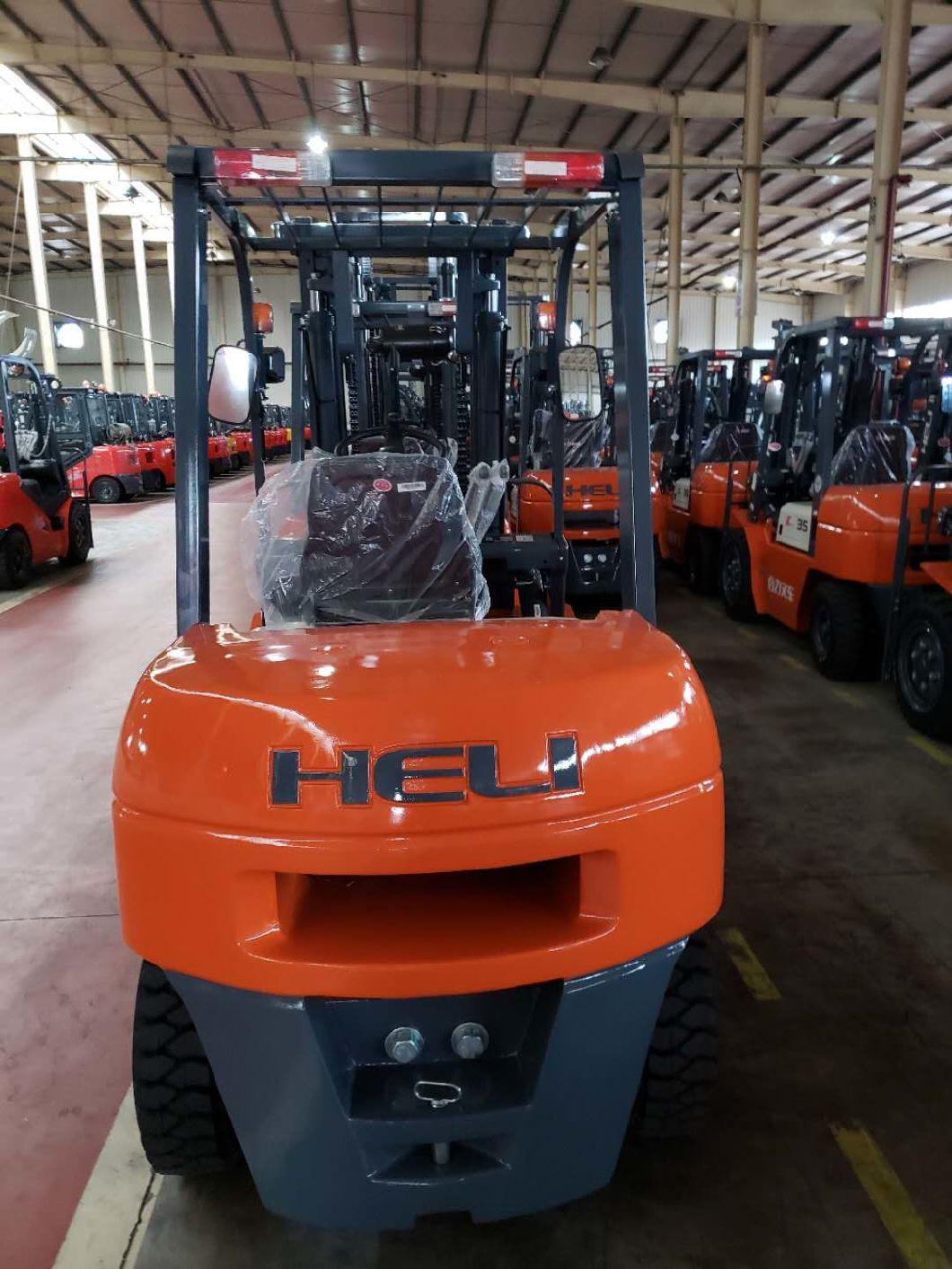

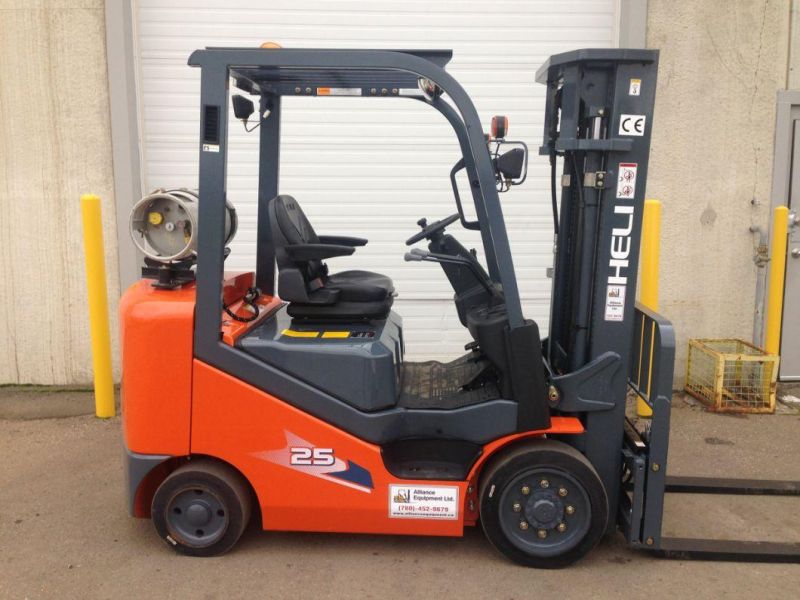

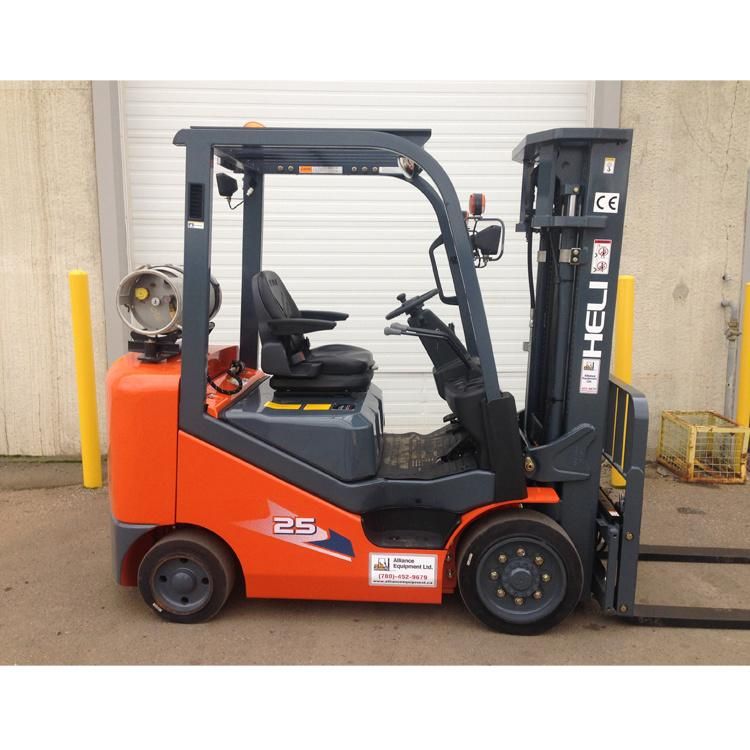

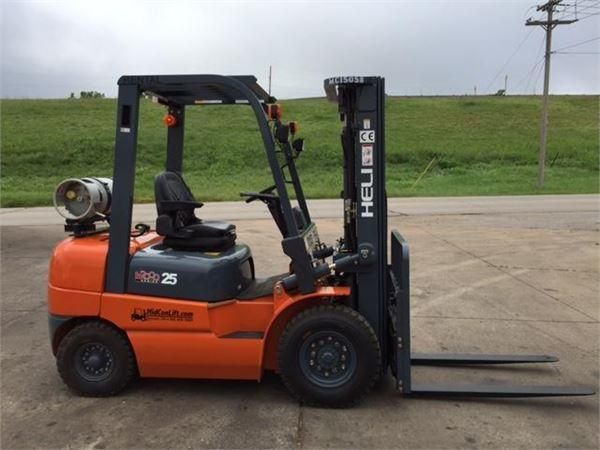

Pictures:
