• Model NO.：TFA10
• Lift height：3000~5000mm
• Condition：New
• Model Number：Tfa10
• Fork Length：1070mm
• Total Weight：1850kg
• Max. Lifting Height：2500mm
• Fork Width：100mm
• Min. Lifting Height：80mm
• Overall Dimensions：2290*900*1837mm
• Mast Lowered Height：2130 mm
• Mast Extened Height：5355 mm
• Overall Length (Without Fork)：2606,3026 mm
• Overall Width：900,1190 mm
• Fork Size：1070,100,35mm
• Outside Fork Width：220-660 mm
• Inside Leg Width：817 mm
• Forward Distance：650 mm
• Transport Package：International Packing Way with Thick Plastic Film
• Specification：Rated Loading Capacity: 1000kg
• Trademark：Noelift
• Origin：China
• HS Code：84271020
• Production Capacity：500,Year

Basic Info.

Model NO. TFA10 Lift height 3000~5000mm Condition New Model Number Tfa10 Fork Length 1070mm Total Weight 1850kg Max. Lifting Height 2500mm Fork Width 100mm Min. Lifting Height 80mm Overall Dimensions 2290*900*1837mm Mast Lowered Height 2130 mm Mast Extened Height 5355 mm Overall Length (Without Fork) 2606/3026 mm Overall Width 900/1190 mm Fork Size 1070/100/35mm Outside Fork Width 220-660 mm Inside Leg Width 817 mm Forward Distance 650 mm Transport Package International Packing Way with Thick Plastic Film Specification Rated Loading Capacity: 1000kg Trademark Noelift Origin China HS Code 84271020 Production Capacity 500/Year

Product Description

Production description

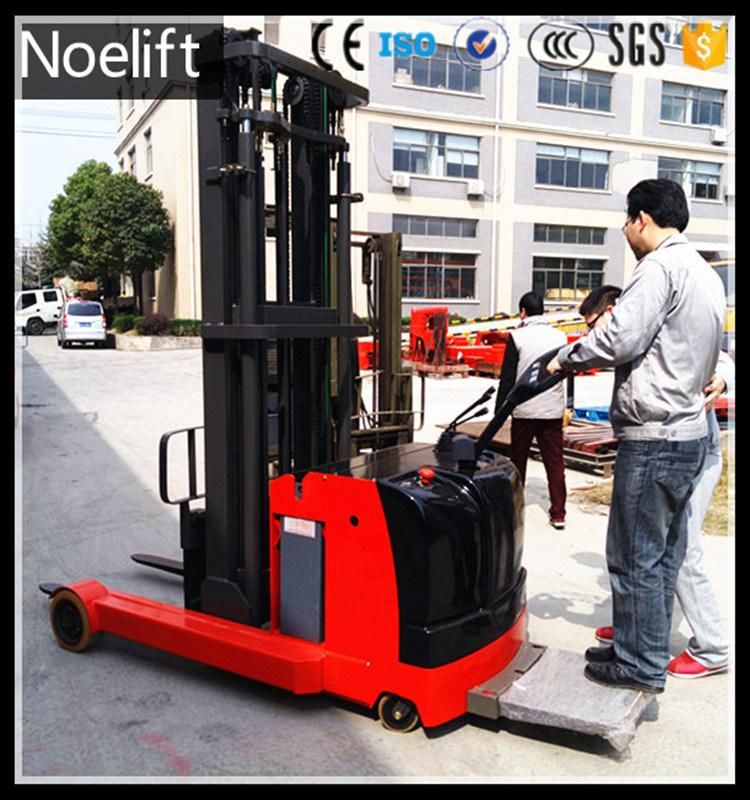

Electric pallet reach forklift stacker

Main Features

24V Electric reach stacker TFA Series rated Load Capacity: 1000-2000kg, lift height: 3000mm; Max. lifting height is 5500mm

1.Speed Limited for high position,to aviod the possibility of products' overturning when high speed in high position;
2.Curve safe control,the forklift will reduce the speed automatic when turning, to aviod the ejection of operator and products from the vehicle by the high speed;
3.Regenerative braking function to reduce the operation cost;
4.Safe cutoff valve,to protect the operator and goods in well condition;
5.Shock Absorption of Pedal,to ensure the comfortable of working and reduce the fatigue.




Certifications


Our service

NOELIFT service cover the whole life of the machine you purchase.When you first inquire our machine,we provide the full data and information to make sure this is the best choice for you.When the machine deliver to you,we will have professional maintenance advice and service manual to help you keep the machine under very good operation condition.Even if the machine have problem,we have a full time service system to make sure no deplay happen and minimize the downtime and maximize the machine efficiency.
