Royal Diesel Forklift Capacity 2500kgs 2.5t with Mitsubishi S4s Engine

ROYAL FORKLIFT (SUZHOU) CO., LTD.
  • Cab Location：Adjustable
  • Type：Ordinary Combustion Forklift
  • Power：Diesel Engine
  • Load Capacity：2.5t
  • Fuel：Diesel
  • Load center：500mm

Base Info

  • Model NO.：C25E
  • Lift height：3000-6500mm
  • Condition：New
  • Engine Manufacturer：Isuzu,Mitsubishi,Xinchai,Yanmar,Nissan
  • Fuel Tank Capacity：50L
  • Transmission Type：Powershift
  • Option Tyre：Double Pneumatic,Solid Tyre,No Marking Solid Tyre
  • Option Attachment：Side Shifter,Fork Positioner,Drum Clamps
  • Option：Cabin, Air Condition
  • Transport Package：Standard Export Packing
  • Trademark：Royal
  • Origin：China
  • HS Code：84272090
  • Production Capacity：1000PCS,Year

Description

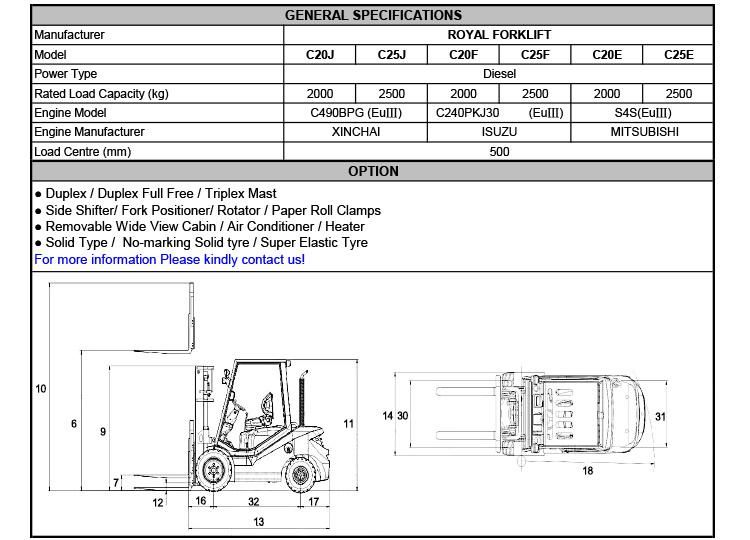

Manufacturer RY MODEL C25EC25JC25FGeneral Power Type DIESELengine MITSUBISHI  EuIIIXINCHAI EuIIIISUZURated Load Capacitykg2500Load Centremm500Characteristic & DimensionRated Lift Heightmm3000Free Lift Heightmm140Mast Tilt Angle (F/R, α°/β°)Deg6º/12ºMast Lowered Heightmm2045Mast Extended Height (With Backrest)mm4145Overhead Guard Heightmm2180Ground Clearance (Bottom of Mast)mm130Length to Face of Fork (Without Fork)mm2625Overall Widthmm1150Fork Size (L×W×T)mm1070×125×40Fork Overhang (Wheel Center to Fork Face)mm473Rear Overhangmm508Turning Radius (Outside)mm2315Min.Right Angle Stacking Aisle Width
(Add Load Length and Clearance)mm4010PerformanceTravel Speed (No Load)km/h20Travel Speed (Full Load)km/h19Lifting Speed (Full Load)mm/s510Lowering Speed  (Full Load)mm/s450Max.Drawbar Pull (Full Load)KN17/13.517/14.517/13.7Max.Gradeability (Full Load)%20Service Brake (Operation/Control) Foot/PowershiftParking Brake (Operation/Control) Hand/MechanicalChassisTyre (Front x 2) 7.00-12-12PRTyre (Rear x 2) 6.00-9-10PRFront Treadmm1000Rear Treadmm980Wheelbasemm1650WeightTotal Weightkg3450Front Axle Weight Distribution (Full Load)kg4856Rear Axle Weight Distribution (Full Load)kg594Front Axle Weight Distribution (No Load)kg1507Rear Axle Weight Distribution (No Load)kg1943
Royal Diesel Forklift Capacity 2500kgs 2.5t with Mitsubishi S4s Engine
Royal Diesel Forklift Capacity 2500kgs 2.5t with Mitsubishi S4s Engine
Royal Diesel Forklift Capacity 2500kgs 2.5t with Mitsubishi S4s Engine
Royal Diesel Forklift Capacity 2500kgs 2.5t with Mitsubishi S4s EngineRoyal Diesel Forklift Capacity 2500kgs 2.5t with Mitsubishi S4s Engine
