• Model NO.：FB30
• Fuel：Electric
• Load center：500mm
• Lift height：3000mm
• Condition：New
• Fork Size：1070*125*45mm
• Wheelbase：1600mm

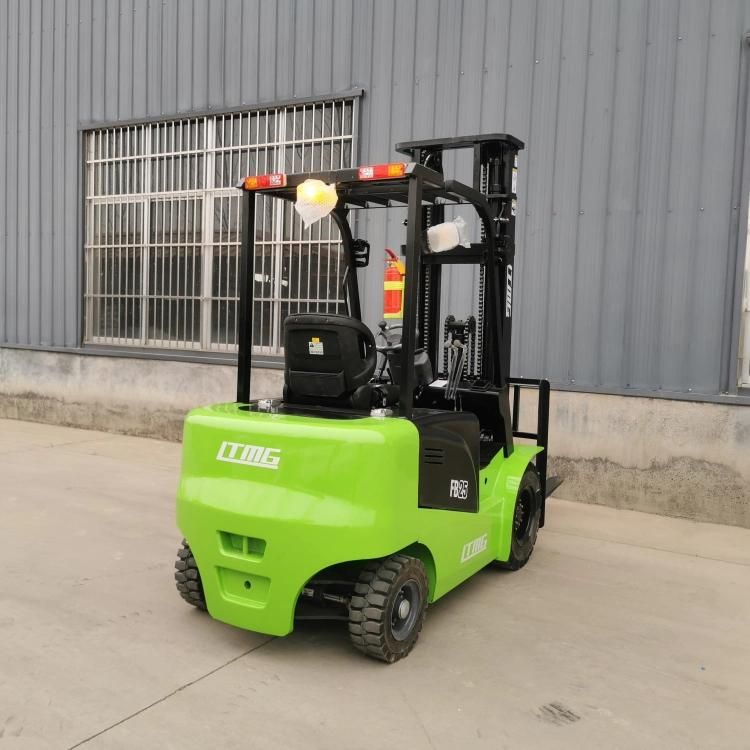

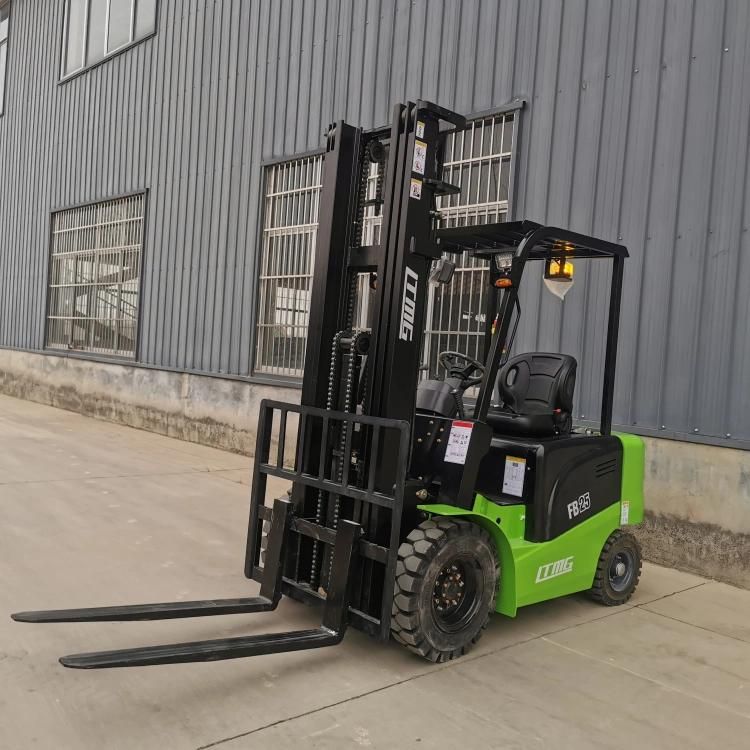

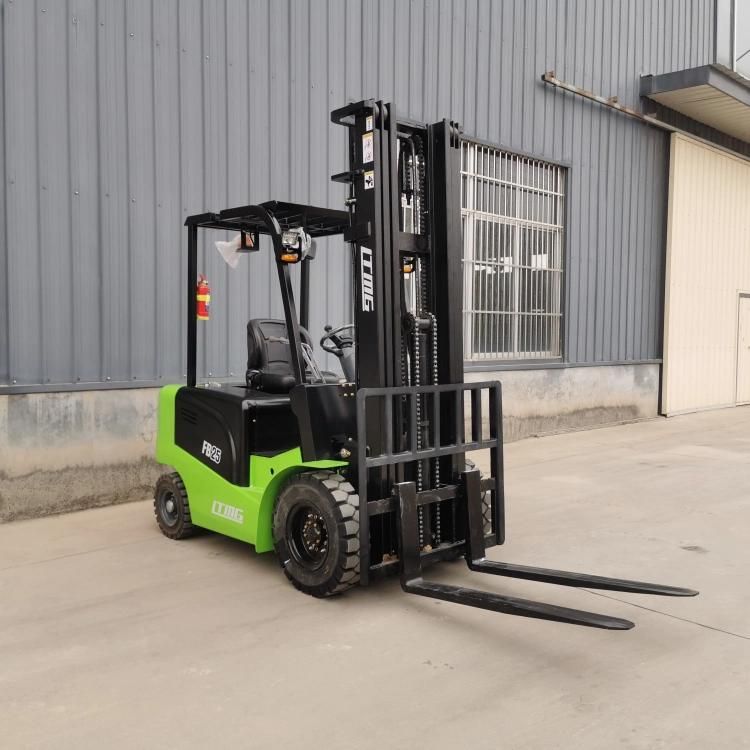

• Item：3 Ton Counterbalanced Electric Forklift
• Color：Customized
• Max. Lifting Height：3000mm
• Power Source：Battery
• Tire：Pneumatic (Solid Tire Is Optional)
• Attachment：Side Shifter, Fork Positioner, etc
• Item Type：Electric Forklift
• Transport Package：Nude Packing, Container
• Specification：2510*1225*2190mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：700sets,Year

Basic Info.

Model NO. FB30 Fuel Electric Load center 500mm Lift height 3000mm Condition New Fork Size 1070*125*45mm Wheelbase 1600mm Item 3 Ton Counterbalanced Electric Forklift Color Customized Max. Lifting Height 3000mm Power Source Battery Tire Pneumatic (Solid Tire Is Optional) Attachment Side Shifter, Fork Positioner, etc Item Type Electric Forklift Transport Package Nude Packing, Container Specification 2510*1225*2190mm Trademark LTMG Origin China HS Code 8427109000 Production Capacity 700sets/Year

Product Description

Detailed specification of electric forklift 2.5 ton:


	FB10	FB15	FB18	FB20	FB25	FB30
Rated Capacity	1000kg	1500kg	1800kg	2000kg	2500kg	3000kg
Load Centre	500mm	500mm	500mm	500mm	500mm	500mm
Lift Height	3000mm	3000mm	3000mm	3000mm	3000mm	3000mm
Fork Size (L×W×T)	920x100x35mm	920×120×35(mm)	920x100x40mm	1070×120×40	1070×120×40	1070×125×45
Length to fork face of fork (Without fork)	1950mm	2035mm	2035mm	2360mm	2360mm	2610mm
Overall Width	1000mm	1150mm	1150mm	1160mm	1160mm	1230mm
Overhead Guard Height	1875mm	1995mm	1995mm	2240mm	2240mm	2250mm
Turning Radius (outside)	1800mm	1997mm	1997mm	2075mm	2075mm	2350mm
Wheelbase	1200mm	1360mm	1360mm	1510mm	1510mm	1700mm
Driven Motor	4KW	5.5KW	5.5KW	11KW	11KW	15KW
Lift  Motor	5KW	6KW	6KW	8.6KW	8.6KW	12KW
Battery Standard	48/320V/Ah	48/400V/Ah	48/400V/Ah	48/560V/Ah	48/630V/Ah	80/500V/Ah
Controller Manufacturer	CURTIS	CURTIS AC	CURTIS	CURTIS AC	CURTIS AC	CURTIS AC

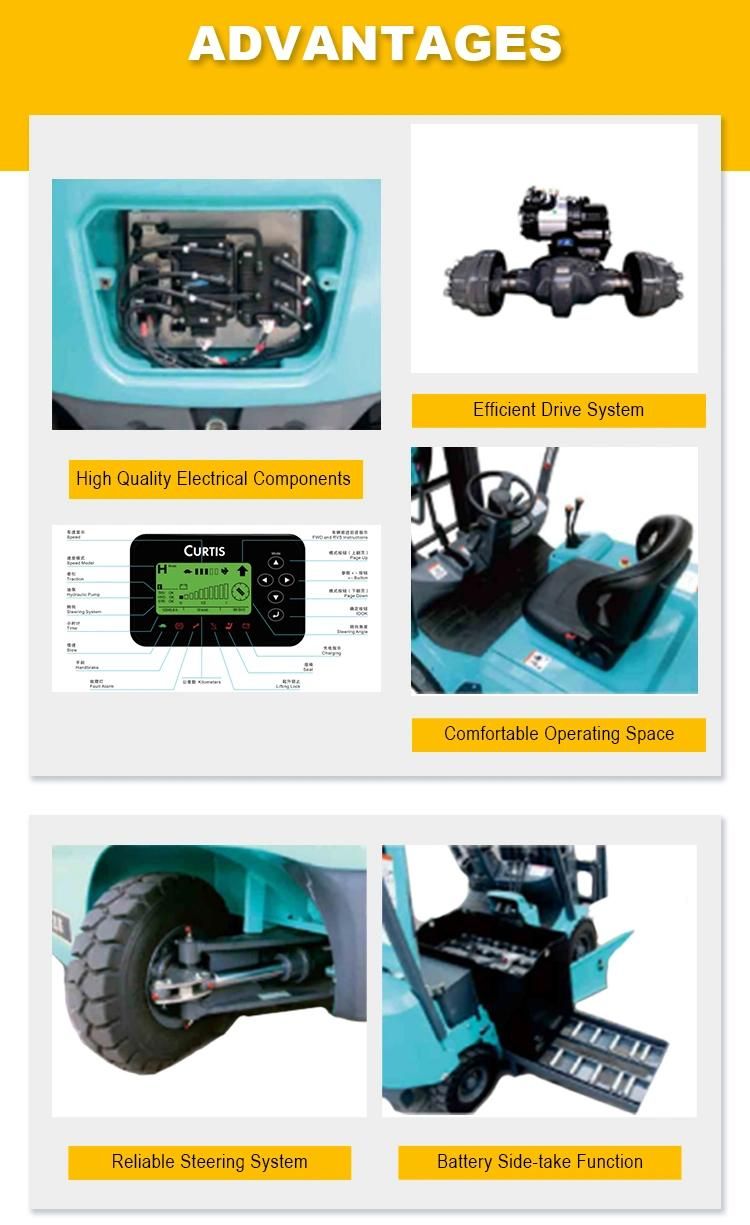

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable:Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.



FAQ

1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is from 7 days to 90 days.
