• Model NO.：SRSC45H1
• Fuel：Diesel
• Load center：>500mm
• Lift height：15100mm
• Condition：New
• Aisle Width with 20′ Container：11300mm
• Aisle Width with 40′ Container：13600
• Engine：Tad1151
• Rated Power：265,2100kw,Rpm
• Max Torque：1780,1260nm,Rpm

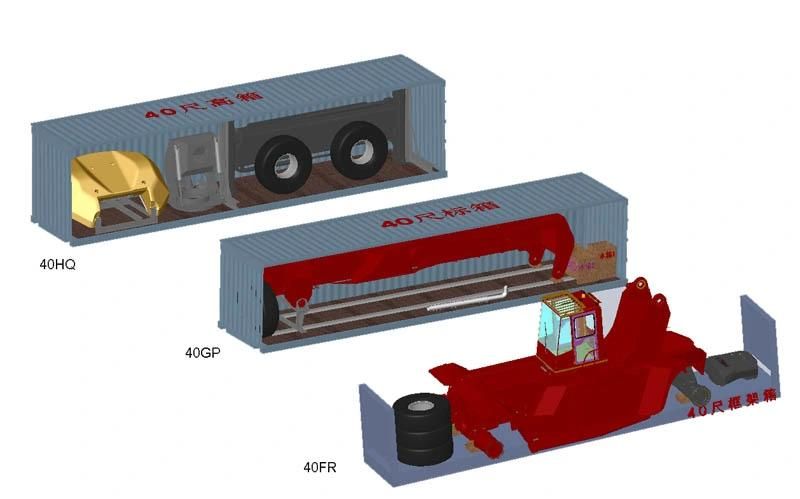

• Transport Package：Nude
• Specification：11260*6042*4770mm
• Trademark：CCC ISO9001
• Origin：China
• HS Code：84295100
• Production Capacity：100unit,Month

ItemUnitParameters
Lifting performanceMax. lifting capacitykg45000Stacking capacity--5-5-4Max. hoisting speed (without/with load)mm/s350/200Max. lowering speed (without/with load)mm/s330/260Max. lifting heightmm15100

Traveling performanceMax. travel speed (without/with load)km/h27/23Drive mode--4×2, Front axle driveMax. grade-ability%30%Min. turning radiusm8.1Steering mode--Rear axle steeringWeightCurb masskg70995
DimensionOutline dimension (L×W×H)mm11295×6052×4489Wheel basemm6000Track (front wheel/rear wheel)mm3024/2750Min. ground clearancemm365Approach angle/Departure angle°17.5/26.5


Power

EngineModel--CumminsQSMPower/rotation speedkW/r/min250/2100
Emission standard
--Off-road U.S.EPA Tier3, EU Stage IIIATransmissionModel--Z-F 5WG261Gear--FWD 5, REV 3Drive axleModel--Kessler D102PL241

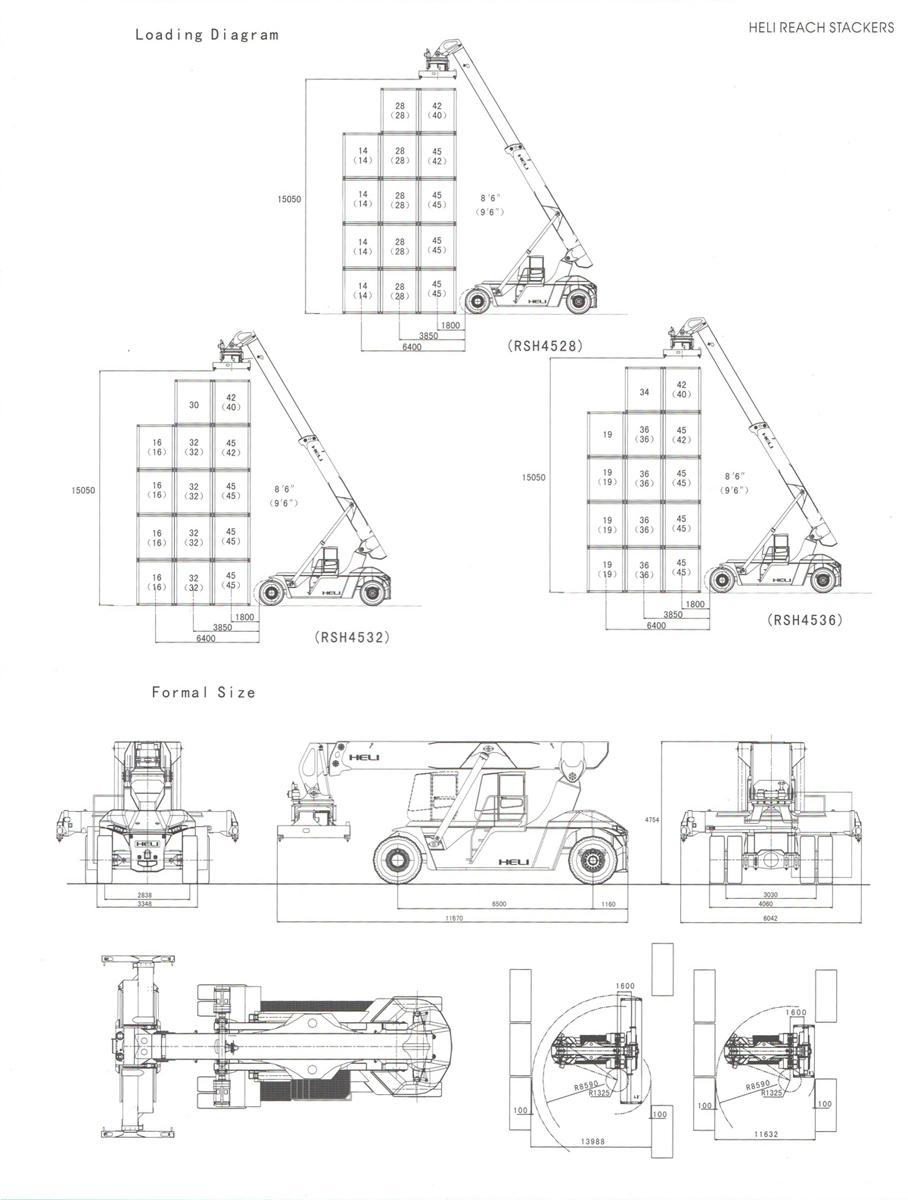

II. Detailed Images

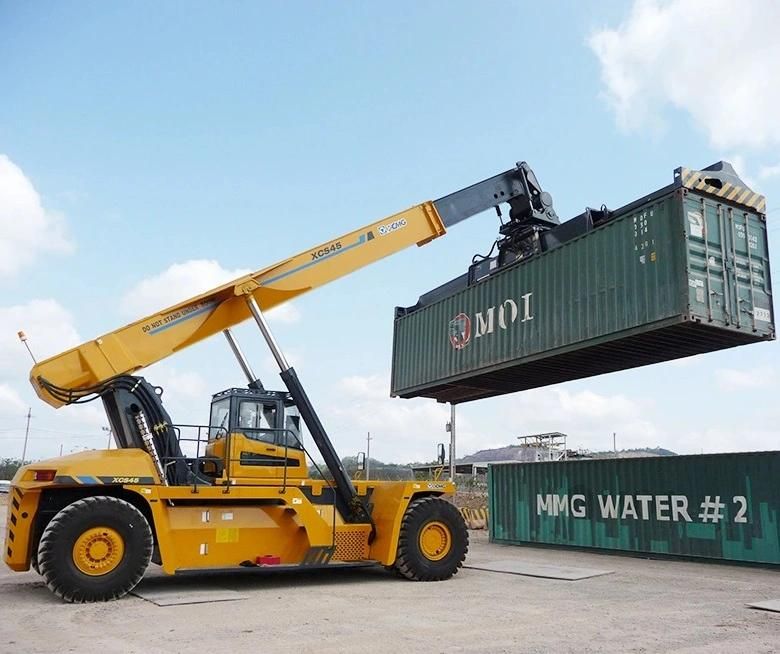

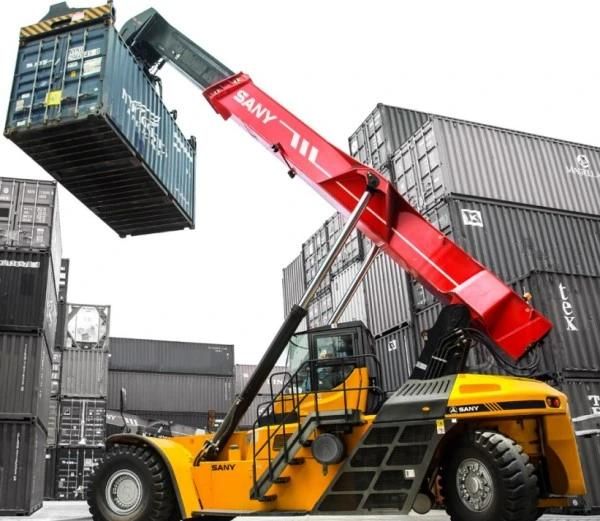

III. Other Models
