• Model NO.：SH35C
• Condition：New
• Load Capacity (T)：3.5t
• Power Type：Battery
• Lifting Height：3000mm
• Free Lift：75mm
• Fork Width：125mm
• Fork Thickness：50mm
• Fork Length：1070(1220)
• Transport Package：Container, FCL,LCL
• Specification：CE
• Trademark：sinoheng
• Origin：Shandong, China
• Production Capacity：300PCS,Month

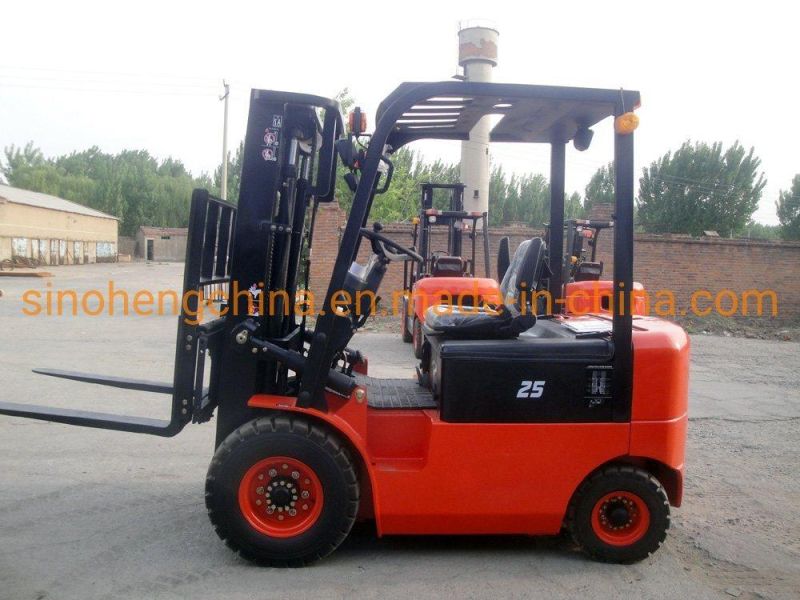

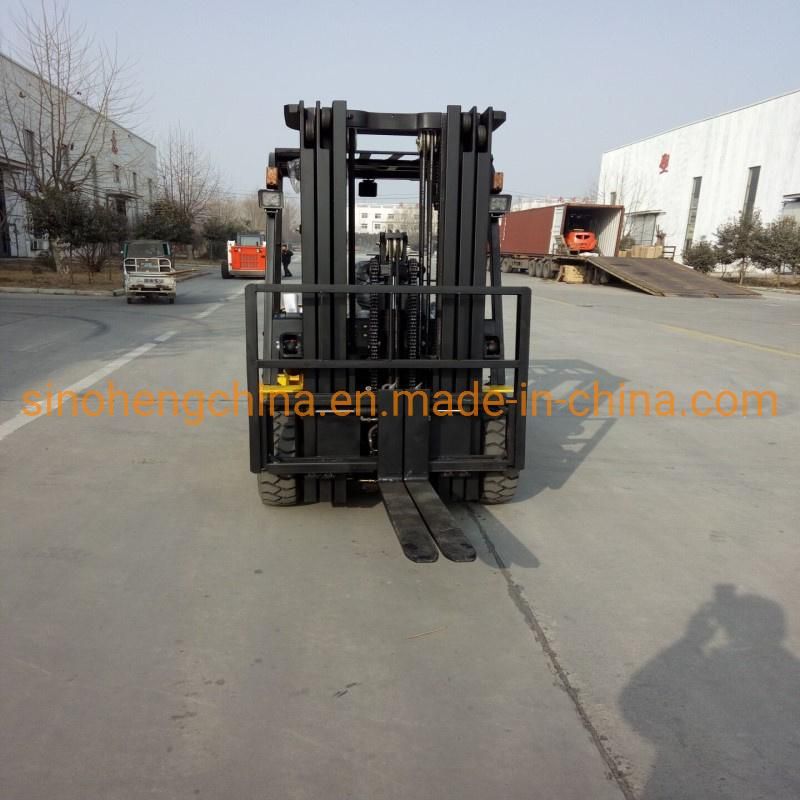

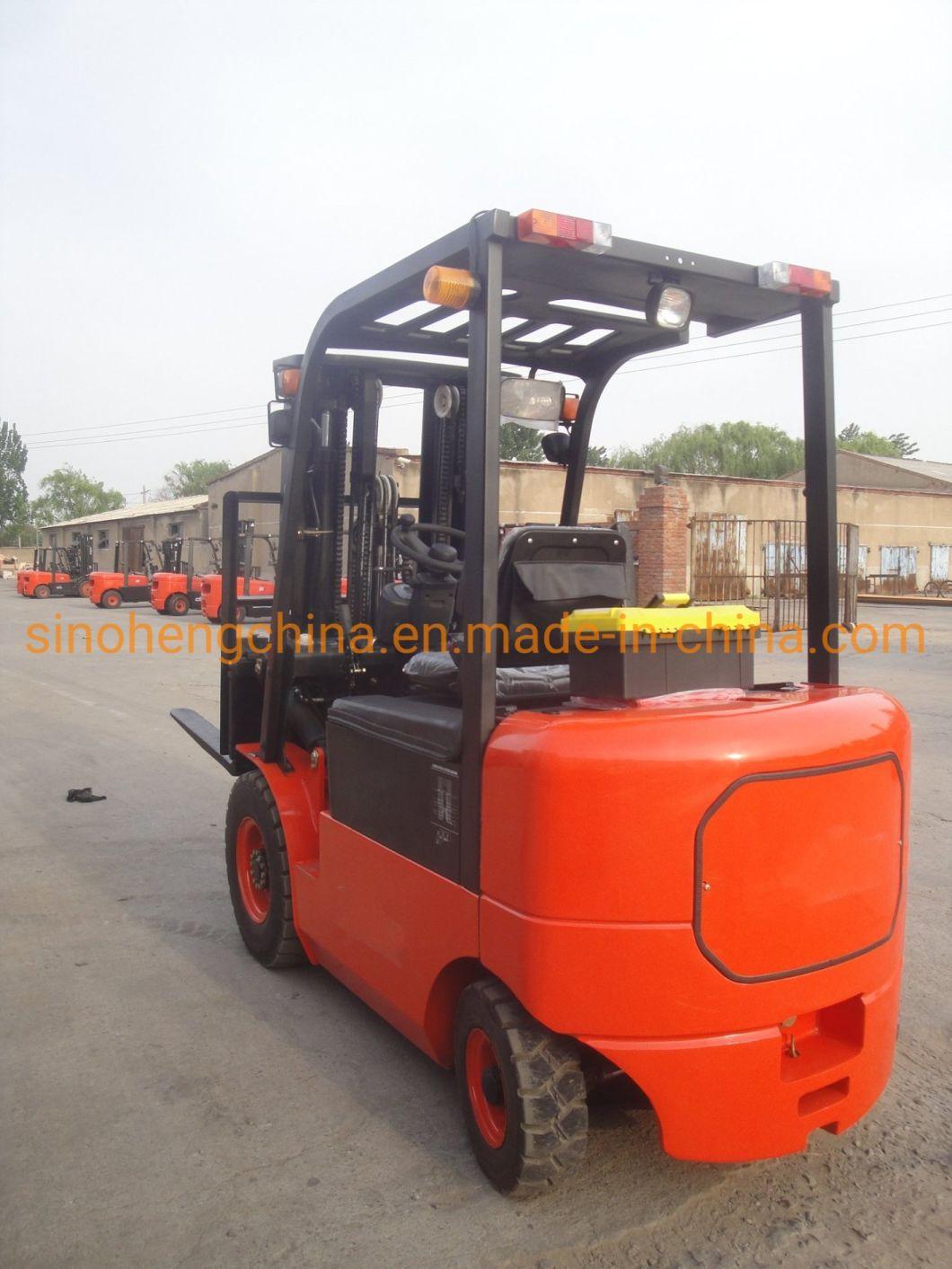

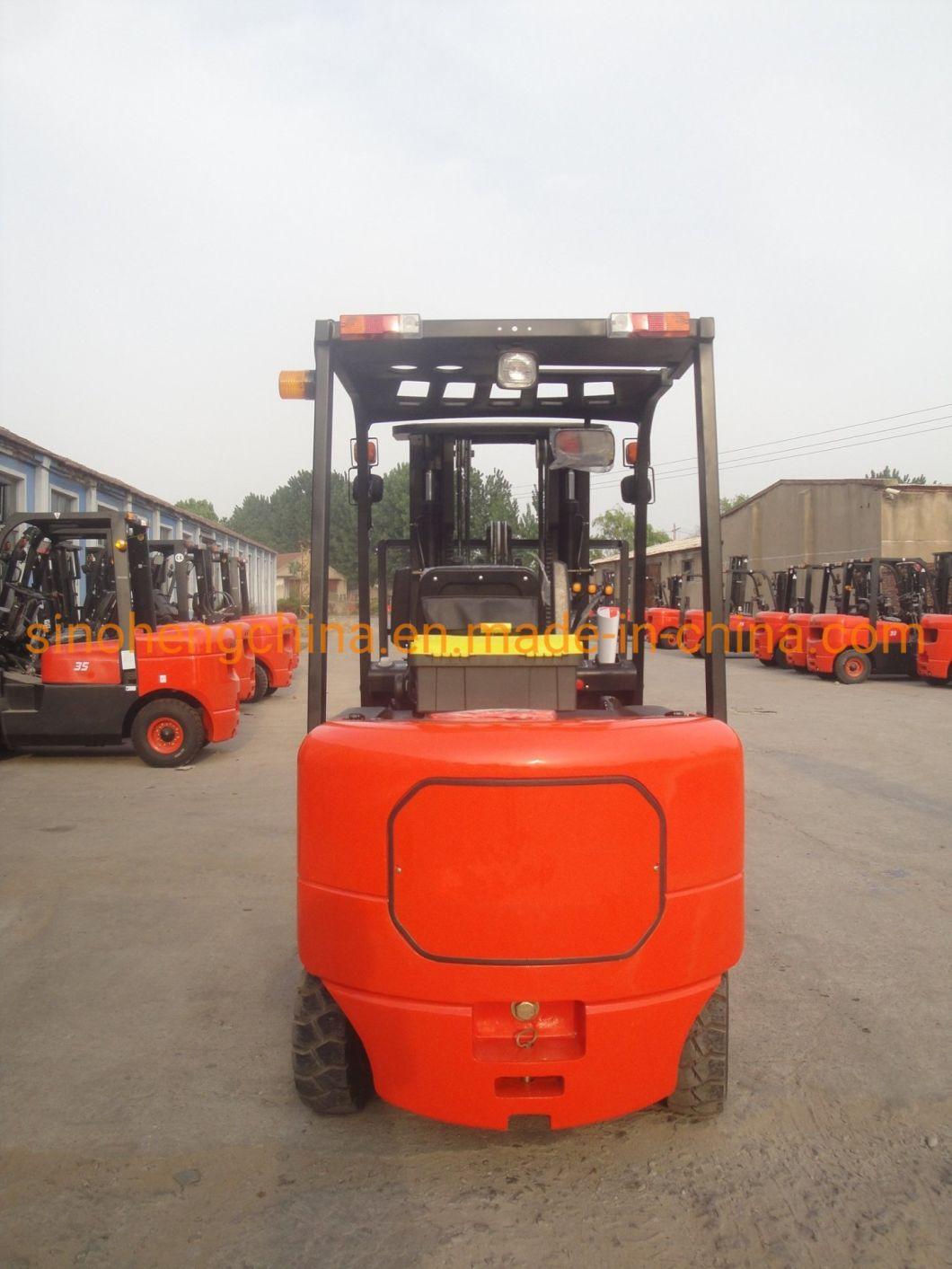

Product Name3.5Ton DC Counterbalance Electric Forklift TruckModelSH35CLoad capacity (kg)3500Load center (mm)500Power typeBatteryMax. lifting speeds ( with load )  mm/s285Max. driving speeds ( with/without load )  km/h13.5/15Max. towing ( with/without load )  kn13Gradeability (with/without load )  %15Lifting height (mm)3000Free lift (mm)75Tilting angles ( forward-backward )  (  .)6/12Min. turning radius (mm)2400Min. right angle aisel width ( mm )3900Min. under-clearance (mm)                    140
DimensionOverall length (including fork)mm3745Overall width ( mm )1240Overall height (mast lowered )mm2200Overall height (mast extend )mm4260Overall height to overhead guard (mm)2200Fork width (mm)125Fork thickness (mm)50Fork length (mm)1070(1220)Fork overhang (mm)495Wheel base (mm)1700TreadFront tread (mm)1000Rear tread (mm)980TyreFront tyre28 x 9 - 15Rear tyre18 x 7 -8Total weight (kg)5160MotorTraction motorXQ-10-1CLifting motorXQD-13-3SBatteryBattery type40-DA-500Battery voltage /Capacity  V/Ah80/500
