2.5 Ton Electric Forklift Truck with Germany Hawker Battery
ROYAL FORKLIFT (SUZHOU) CO., LTD.- Cab Location:Adjustable
- Type:Electric Forklift
- Power:AC Motor
- Load Capacity:1T - 5T
- Fuel:Electric
- Load center:500mm
Base Info
- Model NO.:E25
- Lift height:3000~5000mm
- Condition:New
- Fork Size:1070*125*40mm
- Drive Motor:11kw
- Pump Motor:11kw
- Standard Battery:48V,560ah
- Controller Type:AC
- Controller Manufacturer:Zapi
- Transport Package:Standard Export Packing
- Trademark:Royal
- Origin:China
- HS Code:3301240129
- Production Capacity:30000PCS,Year
Description

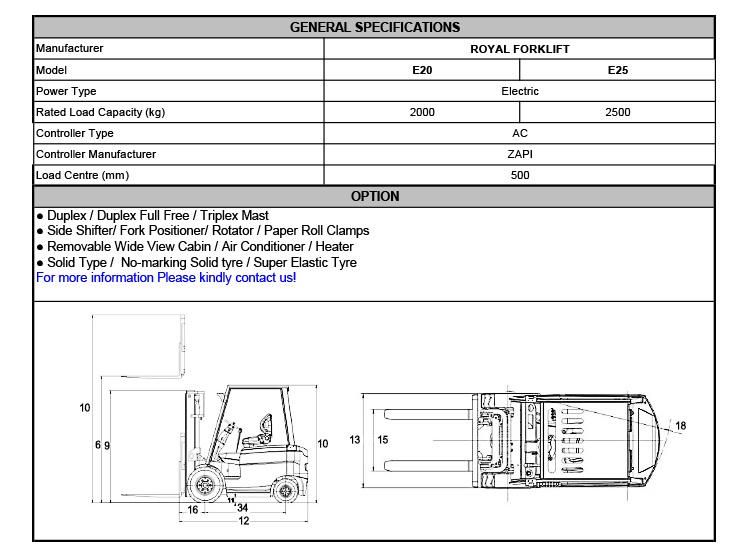

General Power Type ELECTRIC Rated Load Capacity kg 2000 2500 Load Centre mm 500 Characteristic & Dimension Rated Lift Height mm 3000 Free Lift Height mm 140 Mast Tilt Angle (F/R, α°/β°) Deg 6º/12º Mast Lowered Height mm 2045 Overhead Guard Height mm 2150 Ground Clearance (Bottom of Mast) mm 120 Length to Face of Fork (Without Fork) mm 2388 Overall Width mm 1150 Fork Size (L×W×T) mm 1070×125×40 Fork Overhang (Wheel Center to Fork Face) mm 478 Rear Overhang mm 410 Turning Radius (Outside) mm 2080 Min.Right Angle Stacking Aisle Width
(Add Load Length and Clearance) mm 4145 Performance Travel Speed (No Load) km/h 12 Travel Speed (Full Load) km/h 13 Lifting Speed (Full Load) mm/s 290 Lowering Speed (Full Load) mm/s 400 Max.Drawbar Pull (Full Load) KN 15 Max.Gradeability (Full Load) % 15 Service Brake (Operation/Control) Foot/Powershift Parking Brake (Operation/Control) Hand/Mechanical Chassis Tyre (Front x 2) 7.00-12-12PR Tyre (Rear x 2) 18x7-8-14PR Front Tread mm 970 Rear Tread mm 950 Wheelbase mm 1500 Weight Total Weight kg 4060 4260 Front Axle Weight Distribution (Full Load) kg 5180 5823 Rear Axle Weight Distribution (Full Load) kg 880 937 Front Axle Weight Distribution (No Load) kg 1675 1665 Rear Axle Weight Distribution (No Load) kg 2385 2595 Option air cleaner double air filter/air cleaner seat suspention seat/ grammer seat tyre solid tyre/ no-marking solid trye/double solid tyre exhaust system vertical exhaust air condition fans/heater/air condition safe operate tools fir extinguisher attachment sideshifter/fork positioners/paper roll clmps/push&pulls/specialty products cabin rain top roof/only front glass/Half closed cabin/complete capin mast duplex 3.0m-6.0m duplex full free 3.0m-4.0m triplex 4.3m-6.5m
