• Model NO.：Cpcd35
• Fuel：Gasoline
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Load Capacityt：3500kg
• Min.Turning Radius：2420mm
• Fork Length：1070mm
• Engine：Xinchang C490bpg 200
• Transport Package：Nude Packing
• Specification：3760*2090*1225 mm
• Trademark：non
• Origin：China
• HS Code：84272090
• Production Capacity：1000 Per Year

Basic Info.

Model NO. Cpcd35 Fuel Gasoline Load center 500mm Lift height 3000~5000mm Condition New Load Capacityt 3500kg Min.Turning Radius 2420mm Fork Length 1070mm Engine Xinchang C490bpg 200 Transport Package Nude Packing Specification 3760*2090*1225 mm Trademark non Origin China HS Code 84272090 Production Capacity 1000 Per Year

Product Description

Rachel Gao

Maxizm Construction Machinery (Qingdao) Co., Ltd.

Add: Suite 1811, Block A, Yihe International, No. 10 Hong Kong Middle Road, Qingdao, China.

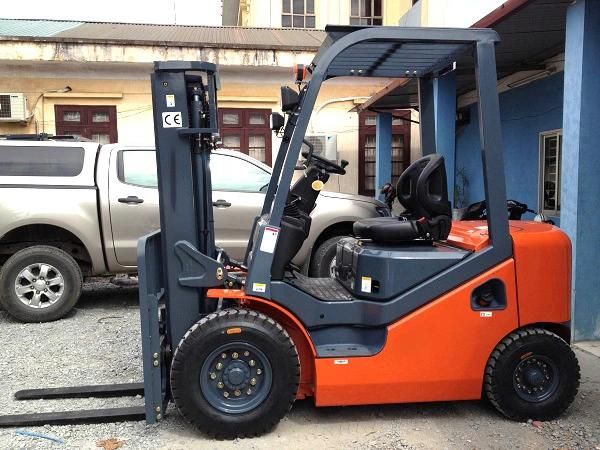

 Heli Cpcd35 3.5 Ton Forklift with side shift

Wide View Mast

• The superior mast ensures operation safety.
• Patented channel steel has first-rate quality.
• Enlarged channel surfaces make the structure firmer.
• The wide view mast is the standard configuration of the truck.

Environment-friendly design and easy maintenance

• Built-in noise isolating and sealing materials reduce vibration and noise effectively.
• The gas spring with automatic lock function ensures safety during maintenance.
• The forklift has lower vibration and noise.

Air Inlet System

• The air suction is installed on top of the overhead guard column where is away from the dust produced when traveling. The air sucked by the engine is cleaner and thus the engine service life is prolonged.



Model		CPCD35
Power type		Gasoline/LPG
Load capacity	kg	3500
Load center	mm	500
Max. lifting height	mm	3000
Overall length(without forks)	mm	2770
Overall width	mm	1285
Overall height(overhead guard)	mm	2170
Min. turning radius	mm	2420
Max. travel speed (with/without load)	Km/h	19/19
Service weight	kg	5000
