• Model NO.：ZT9286C
• Lift height：3000~5000mm
• Condition：New
• Operating Weight：5500kg
• Max.Dump Height：3500mm
• Tyre Specification：16,70-20
• Min Turning Radius (mm)：5885mm
• Wheel Base(mm)：2350mm
• Tread(mm)：1500mm
• Engine Model：Cummins 4bt3.9-C100
• Rated Power：75kw
• Transport Package：Nude
• Specification：5200*2000*2860
• Trademark：ZTMACHINE
• Origin：China
• HS Code：8427209000
• Production Capacity：30

Basic Info.

Model NO. ZT9286C Lift height 3000~5000mm Condition New Operating Weight 5500kg Max.Dump Height 3500mm Tyre Specification 16/70-20 Min Turning Radius (mm) 5885mm Wheel Base(mm) 2350mm Tread(mm) 1500mm Engine Model Cummins 4bt3.9-C100 Rated Power 75kw Transport Package Nude Specification 5200*2000*2860 Trademark ZTMACHINE Origin China HS Code 8427209000 Production Capacity 30

Product Description





Description	Specification
rated load(kg)	3000
operating weight(kg)	5500
Max.dump height(MM)	3500
Discharging Angle(°)	45
steering angle(°)	35
Min turning radius(MM)	5885
Wheel base(MM)	2350
Tread(MM)	1500
Min.ground clearance(MM)	300
Overall dimensions (l×w×h)mm	5200×2000×2860
travel speed(km/h)
Forward gear     I	0~6
II	0~24
reverse gear     I	0~6
II	0~24
Engine Model	Cummins 4BT3.9-C100
Type	In line, water cooled, four stroke, dir.inject
Rated power(kW)	75
Rated speed(rpm)	2400
Tire model	16/70-20
The system pressure(MPa)	17
The braking system	Gas-liquid caliper disc brake
The voltage(V)	24

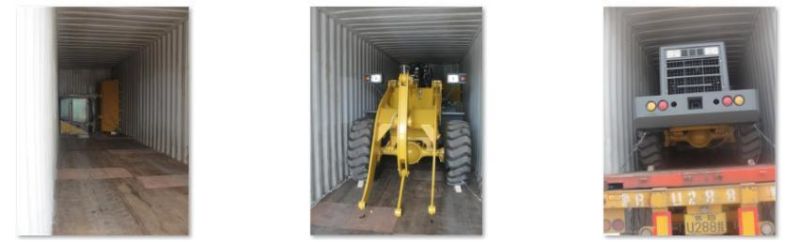

Packing & Delivery
Container 40HC 2 units can be installed
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.2. spare parts or wearing parts will be packed in wooden box or paper carton. 3. Standard shipping method is by container.
