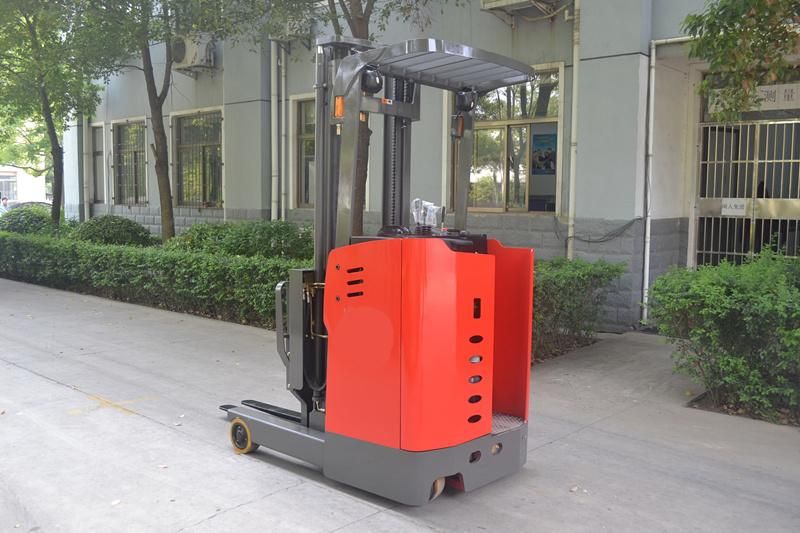

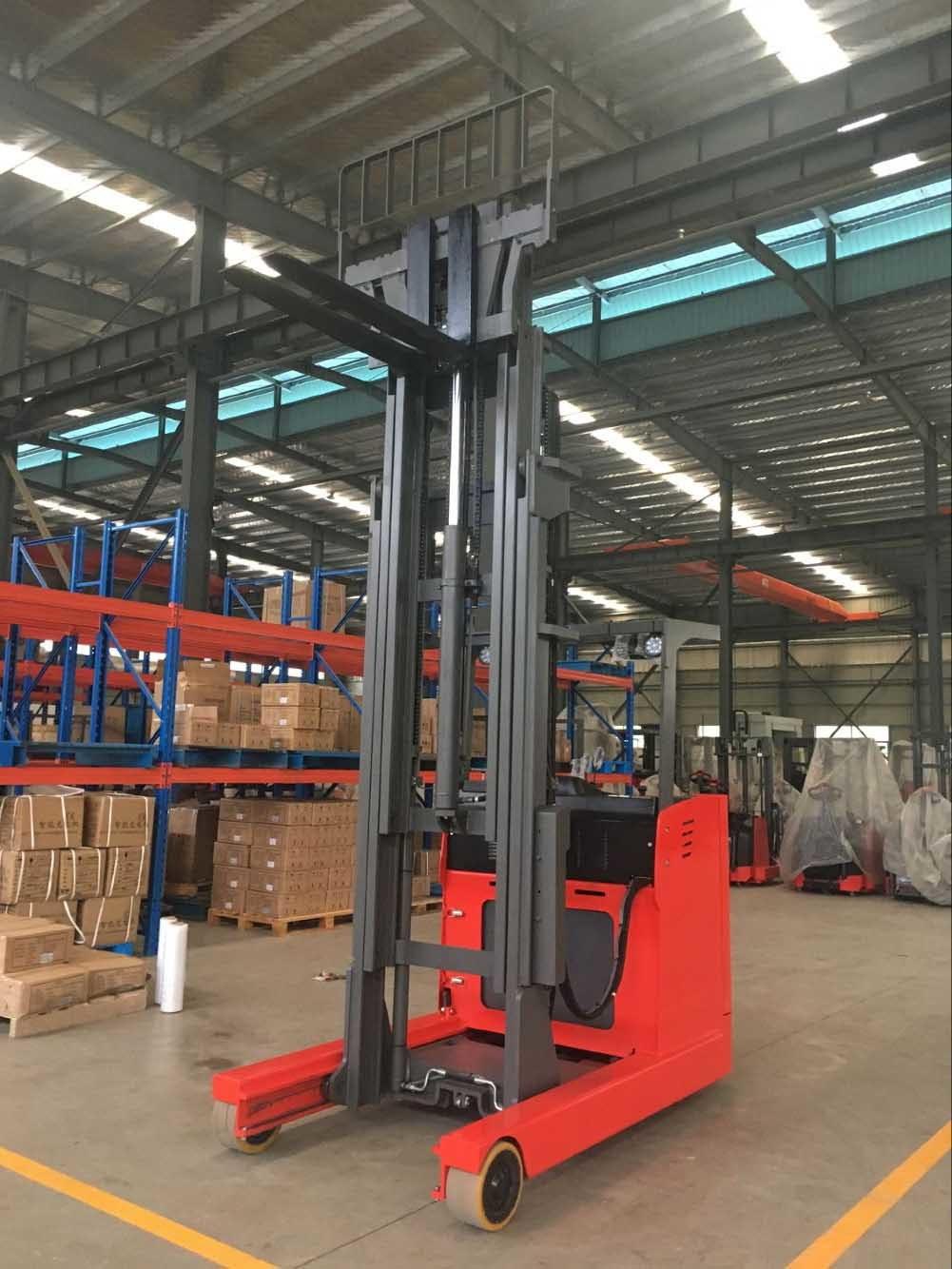

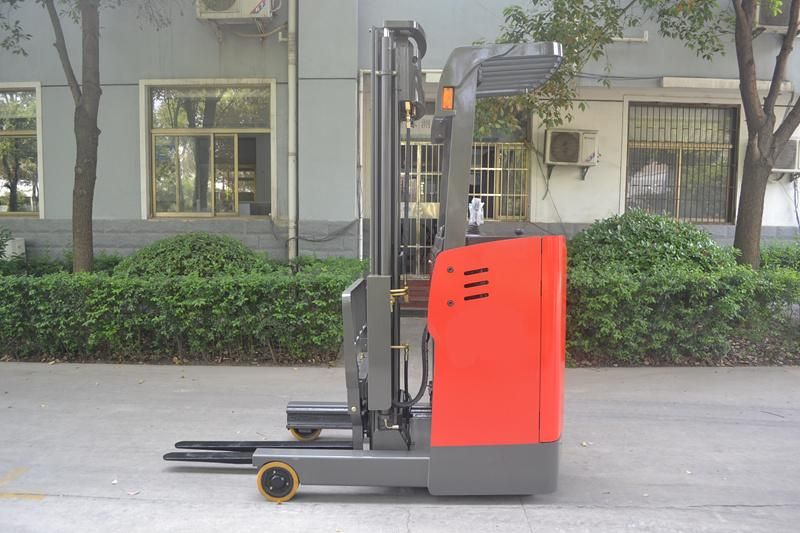

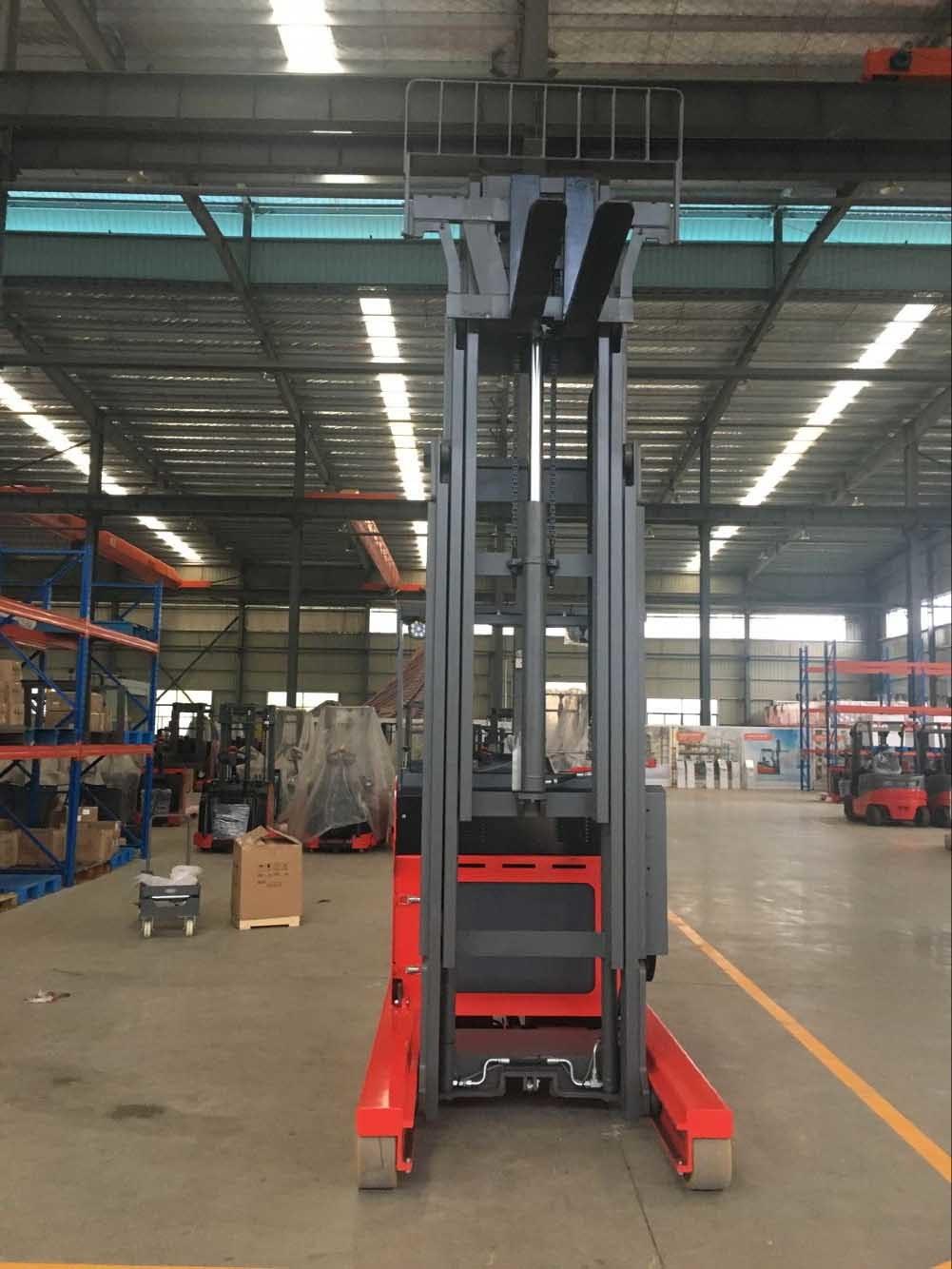

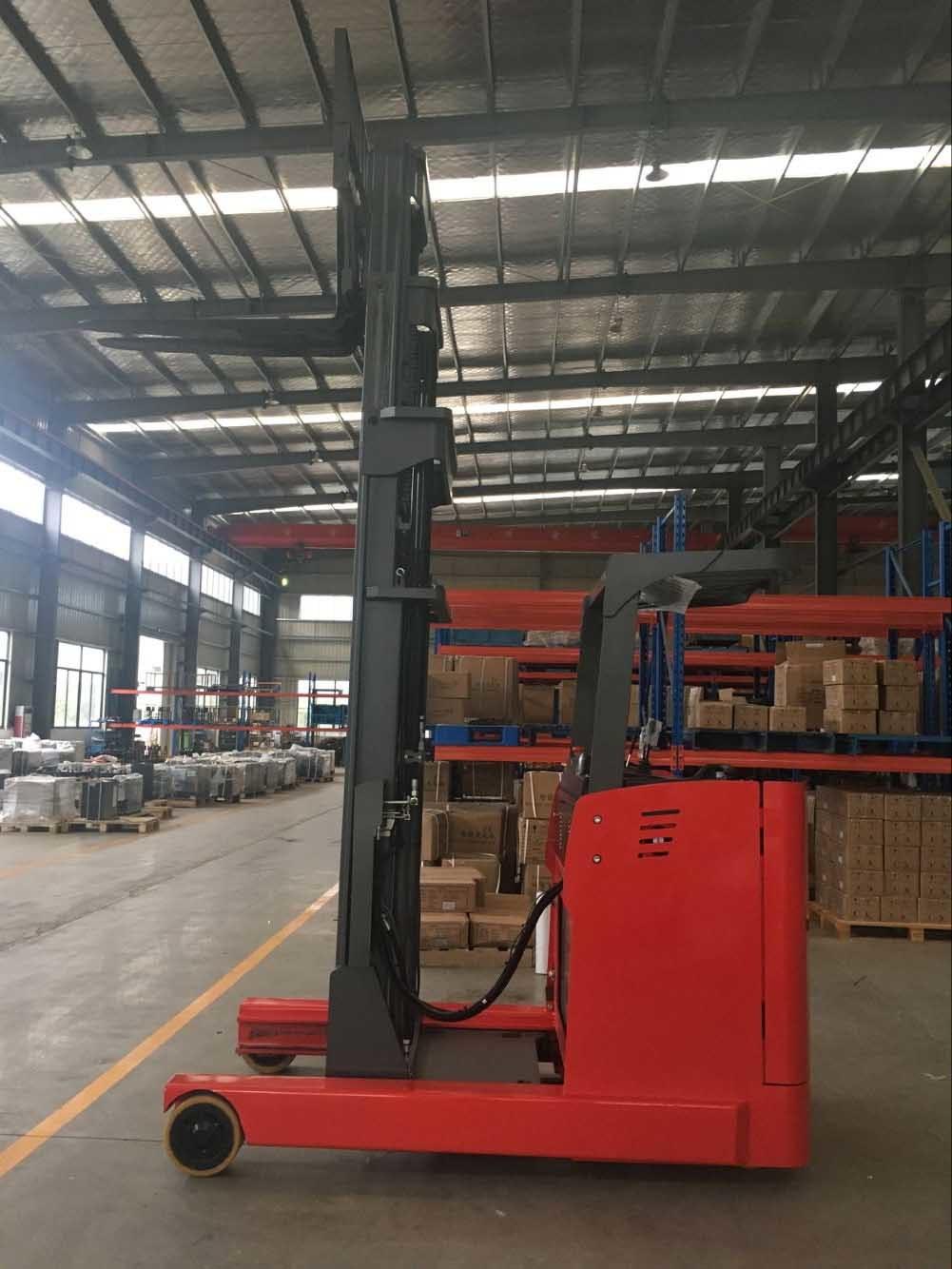

1.2t 1.5t Electric Reach Truck Narrow Aisle 4.5m Triplex Mast
Hangzhou Noelift Equipment Co., Ltd.- Cab Location：Adjustable
- Type：Stacker
- Power：AC Motor
- Load Capacity：≤1T
- Fuel：Electric
- Load center：500mm
Base Info
- Model NO.：TF20
- Lift height：>5000mm
- Condition：New
- Power Type：Electric
- Operation Type：Stand on
- Max. Lift Height：7200mm
- Min.Lift Height：3000mm
- Type of Drive Motor：AC
- Battery Voltage / Capacity：48V,400ah
- Steering Type：EPS
- Battery Change Type：Side Loading
- Service Weight：2960kg
- Pedal Height：365mm
- Transport Package：International Packing Standard Way with Additional
- Specification：1864*1000*2250mm
- Trademark：NOELIFT
- Origin：Zhengjiang
- HS Code：842710200
- Production Capacity：600units
Description
Polyurethane solid tireFork size(LxWxT)mm 1070x100x35 1070x122x40 1070x122x40 Overall length(with forks) mm 2240 2450 2450 Overall width mm 1098 1258 1258 Overall height mast closed mm 2100 2100 2100 Overall height fork raised(with backrest)mm 3900 3900 3900 Overhead guard height mm 2320 2320 2320 Outside turning radius mm 1615 1965 1965 Total weight( with battery) Kg 2300 2600 2600 Battery V/Ah 48/300 48/400 48/400 Charger V/A 48/40 48/50 48/50 Driving motor Kw 5.5(AC) 5.5(AC) 5.5(AC) Lifting motor Kw 6.3 7.5 7.5
DETAILS
2T ELECTRIC REACH TRUCK
3T ELECTRIC REACH TRUCK
Noelift catalog
--
1-12tons diesel forklift truck & 1-3.5tons gasoline/lpg forklift truck
1-5tons electric forklift truck, 3-6m
1-2.5tons electric reach truck,1.6-12.5m
1-2tons electric pallet stacker,1.6-5.5m
1-8tons electric pallet truck
0.3/1.0t electric order picker, 1.6-5.0m
Very narrow aisle forklift truck, 3-12.5m
Customize design model
More than 100 model for your optional.
