China Maufacturers New AC Motor 2t/2000kg/4000lb/4400lb 3 Wheel High Narrow Aisle Reach Trucks Forklift for Material Handling/Warehouse/Loading/Electric
Qingdao Zongjin Engineering Machinery Co., Ltd.- After-sales Service：Video Technical Support
- Warranty：1 Year
- Cab Location：Adjustable
- Type：Reach Forklift
- Power：AC Motor
- Load Capacity：2.0 Ton
Base Info
- Model NO.：CQD20
- Fuel：Electric
- Load center：600 mm
- Lift height：3000,5000,6200,7400 mm
- Condition：New
- Name：AC Motor 2000kg 4400lb 2t Electric Reach Trucks
- Capacity Load：2000 Kg
- Driving Wheel：Dia 406X152 mm
- Fork Wheels：Dia340*104 mm
- Height,Mast Lowered：2086,2240,2740,3190 mm
- Wheels ,Number Front Rear：1X,2
- Fork Dimensions：40,120,1070 mm
- Turning Radius：1820 mm
- Aisle Width for 800X1200 Lengthways：2980 mm
- Aisle Width for 1000X1200 Lengthways：2920 mm
- Travel Speed,Laden/Unladen：8,8.3 Km,H
- Lift Speed,Laden/Unladen：0.24,0.3 M,S
- Battery Voltage.Nominal Capacity：48,500 V,Ah
- Battery Weight：860 Kg
- Service Weight：3300,3700,3800,3900 Kg
- Transport Package：Tandard Export Package for Electric Pallet Truck
- Specification：2440 mm*1260 mm*2086 mm
- Trademark：MOVMES
- Origin：China, Ningbo
- HS Code：8427109000
- Production Capacity：500 Sets,Month
Description
Customer Feedback
Certification:
ISO9002:1995
ISO9001:2008(Quality management system)
ISO14001:2004(Environmental management system)
OHSAS18001:2007(Occupational Health and Safety management system)
We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of EN3691-5:2014 and EN3691-1:2012

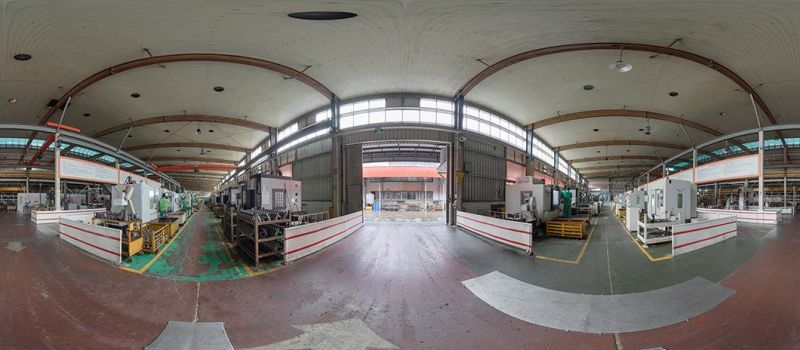

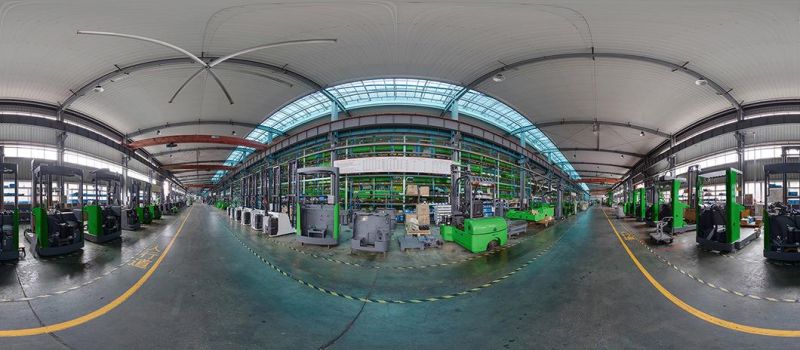

Our Factory
Tesing System
Product test before delivery:
Total five test items:
1.Strengthening test detection
2.Stability detection
3.Detection of climbing performance and current
4.Debugging and testing of braking performance
5.Testing of technical parameters

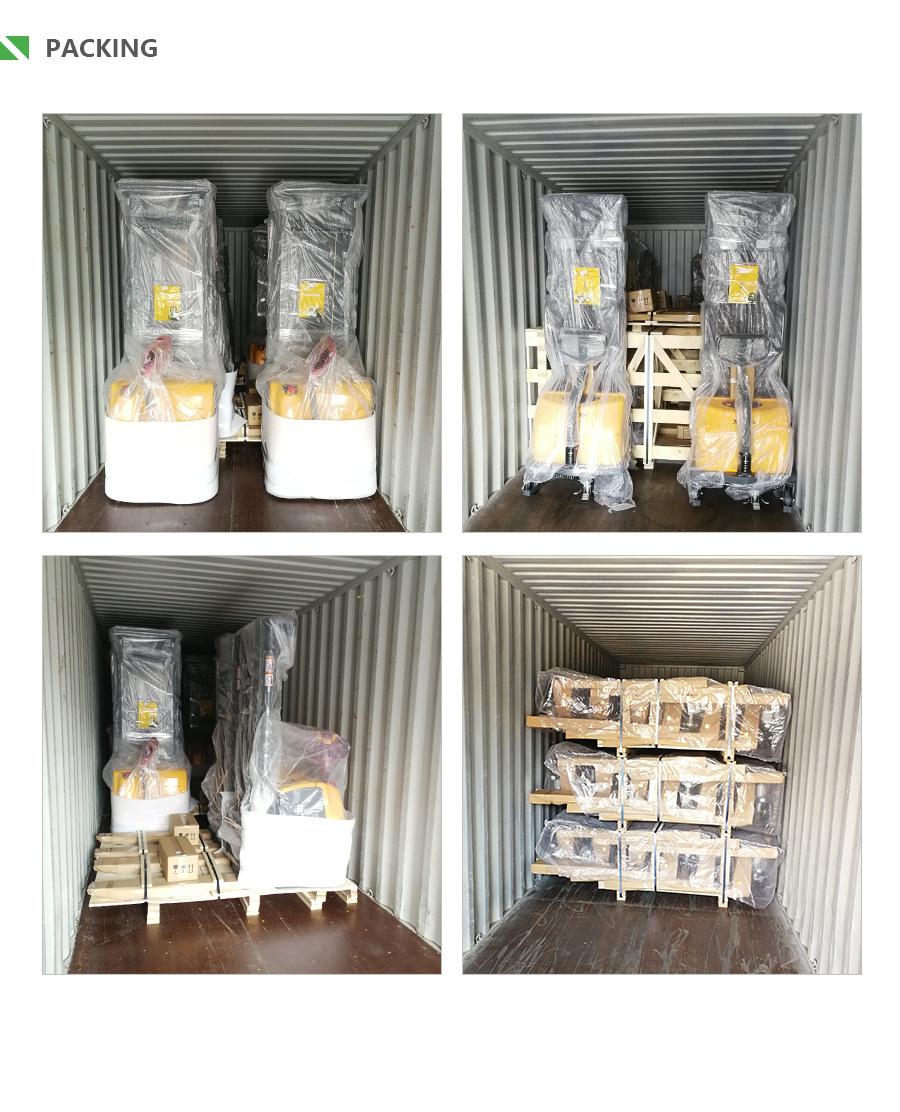

Strong Packing
MOVMES according to the delivery requirements of each customer, we carefully package each TRUCK. Before delivery, we will take photos and videos, and only after getting the customer's approval will we send them away.
Usually MOVMES producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?
A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.
Q2: What's the specification of the chargers?
A2: Our chargers voltage could be 24V /48V ,Side-way battery with roll-out system is very convenient replacement. Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.
Q3: Can MOVMES provide customized products? OEM or ODM products?
A3: Yes, Since 1985,MOVMES is always professionally in developing and producing warehouse logistic equipment ,such as manual/electric pallet trucks&slackers, reach trucks, forklifts and so on.We do OEM for Toyota/ Jungheinrich/ Clark / Hyster / Yale etc.
Q4: How long is the Warranty for MOVMES product?
A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.
