• Model NO.：FB30
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*122mm*40mm
• Weight：3440kg
• Wheelbase：1400mm
• Free Lift：160mm
• Color：Could Be Designed by Buyer
• Gradeability：12.5
• Battery：48V-450ah
• Certificate：Ce,ISO
• Brand：Ltmg
• Warranty：1 Year or 2000 Working Hours
• Tire Type：Pneumatic Tires(Solid Is Optional)
• Optional Attachment：Side Shifter,Fork Extension,Paper Roller Clamp,Et
• Transport Package：Nude Packing, Fixed in Container
• Specification：2245mm*1150mm*2145mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Month

Manufacturer  LTMGModel   FB30Load capacity   kg3000Load center     mm500Power unit   BatteryOperator type  Driver/seatTire type  pneumaticWheel(x=driving)Front/rear        2X/2Max. lifting height   mm3000Free lift  mm165Fork size   L*W*Tmm1070*125*45Tilt range Mast forward/backwarddeg6/12Overall length(without fork)  mm2510Total width  mm1225Mast height (fork lowering)  mm2075Overall height fork raised With backrestmm4250Height to head guard mm2190Turning radius(outside) mm2140Front overhang ( face of fork to front axle) mm480Min. right angle stacking aislenot add load length&clearancemm2625Speed Max Travellingfull loadkm/h13.5Max Travellingno load km/h15Liftingfull loadmm/s240Liftingno load mm/s450Gradeability full load %12.5Truck weight(with standard battery) kg4660Weight  distribution  Fullloadfront/rearkg6770/890Noloadfront/rearkg1885/2755Tires  Number  front/rear2/2Model    front axle28*9-15-12PRrear axle18*7-8-14PRWheelbase  mm1600Tread Front/rear  mm1000/950Ground clearanceAt lowest point(mast)  mm140Frame  mm120BrakeServicebrake  Hydraulic-foot pedal                                 Parking brake Mechanical-hand lever                               Battery  Voltage/capacity  V/AH/5hr72/480Weight with box(standard) kg 1220Electric motor AC Driving motor kw16.6DC Hydraulic driving motor  kw10 AC Hydraulic driving motor (as option)kw13.4Control type  Driving AC , lifting DC
Driving AC , lifting AC (as option ) Operating pressure    kg/cm²175

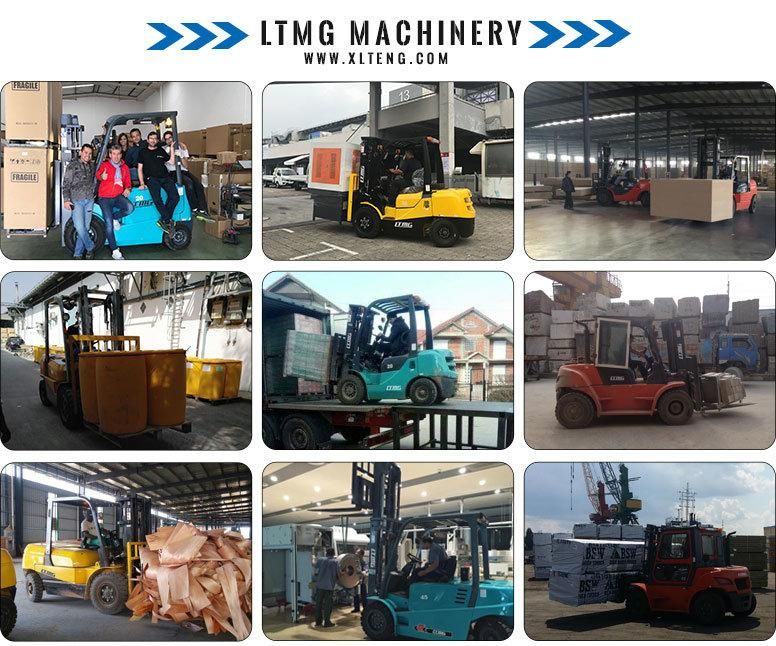

Machine application



Our certifications

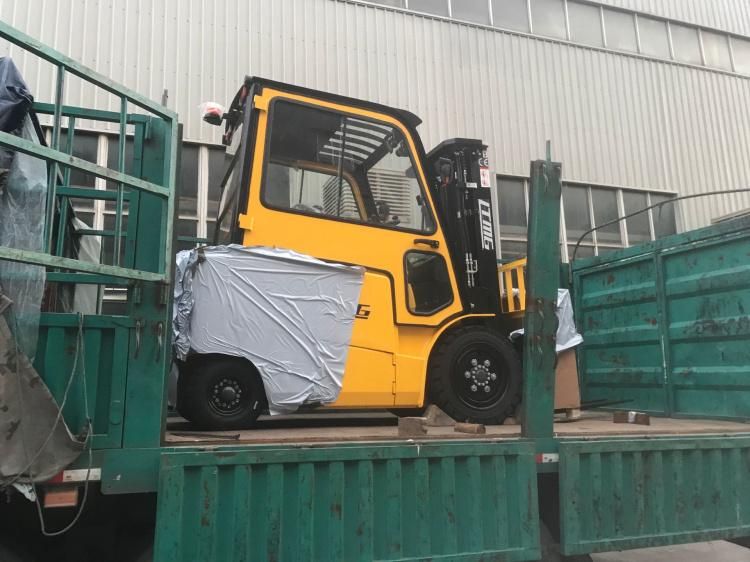

Packing and Shipping



Our customers



Our Factory

After sales service


LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.
