• Model NO.：FD30,FD35,FD38z,FD50,FD60,FD70
• Fuel：Diesel
• Load center：>500mm
• Lift height：3000~5000mm
• Condition：New
• Engine Power：39kw
• OEM：Gas,LPG Engine Available
• Service Weight：4350kg
• Modle：Fd30,Fd35,Fd38z,Fd50,Fd60,Fd70
• Transport Package：Comply with Export Packaging Requirements
• Specification：3895*1230*2170mm
• Trademark：ZOOMLION
• Origin：China
• HS Code：84272090
• Production Capacity：100000,Year

Overview Product DescriptionSpecificationsUnitFD30ZFD35ZFD38ZCharacteristicsPower-dieseldieseldieselRated Capacitykg300035003800Center of loadJ(mm)500500500Lifting heighth1(mm)300030003000Free lifting heighth3(mm)14514590Forks L×W×HL5×W×T(mm)1070×125×451070×125×451070×150×50Tilt Forward/Backwardº6/126/126/12Min.turning radiusR1(mm)260026002650Min.ground clearance(Mast)m(mm)120120135Overhead guard heighth4(mm)217021702170Height from seat to overhead guardL3(mm)480480501Front overhangL4(mm)545545595PerfMax.traveling speed(loaded)km/h202020Max.lifting speed(loaded/empty)mm/s470/520470/520470/520Drawbar pull/GradeabilitykN/%18/2018/2018/20DimensionsOverall length (without fork)L1(mm)389538953966Overall widthW1(mm)123012301230Mast lowered height h2(mm)206520952170Mast extended heightmm426042654263ChassisTireFront-28×9-15-12PR28×9-15-12PR250-15-16PRRear-6.50-10-10PR6.50-10-10PR6.50-10-10PRWheelbaseL2(mm)180018001800Tread widthFront/RearS/P(mm)1000/9701000/9701000/970Curb weightNone-loadkg425044504800PowertrainBatteryVoltage/CapacityV/Ah12/9012/9012/90EngineModel-QC490GPQC490GPQC495GRated powerkw/r.p.m39/265039/265042/2650Rated torqueN·m/r.p.m157/1980157/1980174/1980Cylinder amount-444Bore×Stroke mm90×10590×10595×105DisplacementL2.672.672.98Fuel tankL707070Transmission-1/1 automatic transmissionWorking pressureMPa17.517.517.5Specificationsunit  FD50CharacteristicsPower dieseldieseldieselRated Capacitykg500060007000Center of loadmm600600600Lifting heightmm300030003000Free lifting heightmm203208218Forks L×W×Hmm1220×150×551220×150×601220×150×70Tilt Forward/Backward.6/126/126/12Min.turning radiusmm325033703370Min.ground clearance(Mast)mm200200200Overhead guard heightmm246024602460Height from seat to overhead guardmm105010501050Front overhangmm610615625PerfMax.traveling speed(loaded)km/h262626Max.lifting speed(loaded/empty)mm/s370/450370/450370/450Drawbar pull/GradeabilitykN/%51.4/2051.4/2051.4/20DimensionsOverall length (without fork)mm343134313466Overall widthmm223522352235Mast lowered height mm250025002500Mast extended heightmm441744174417ChassisTireFront 8.25-15-14PR8.25-15-14PR8.25-15-14PRRear 8.25-15-14PR8.25-15-14PR8.25-15-14PRWheelbasemm225022502250Tread widthFront/Rearmm1470/17001470/17001470/1700Curb weightNone-loadkg798086409340PowertrainBatteryVoltage/CapacityV/Ah(12/90)x2(12/90)x2(12/90)x2EngineModel CY6102BG6CY6102BG6CY6102BG6Rated powerkw/r.p.m81/250081/250081/2500Rated torqueNm/r.p.m353/1700353/1700353/1700Cylinder amount 666Bore×Stroke mm102×118102×118102×118Displacement 5.7855.7855.785Fuel tankL140140140Transmission 1/1 automatic transmissionWorking pressureMPa202020Detailed Photos

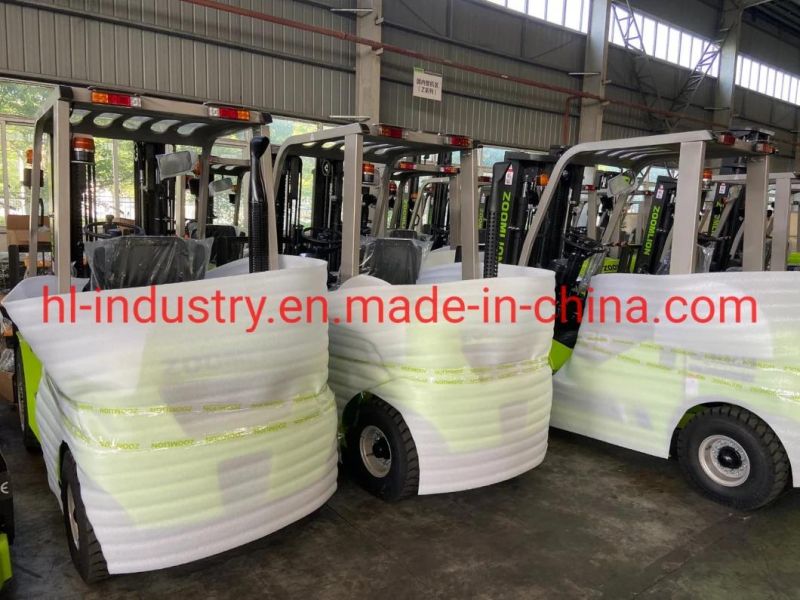

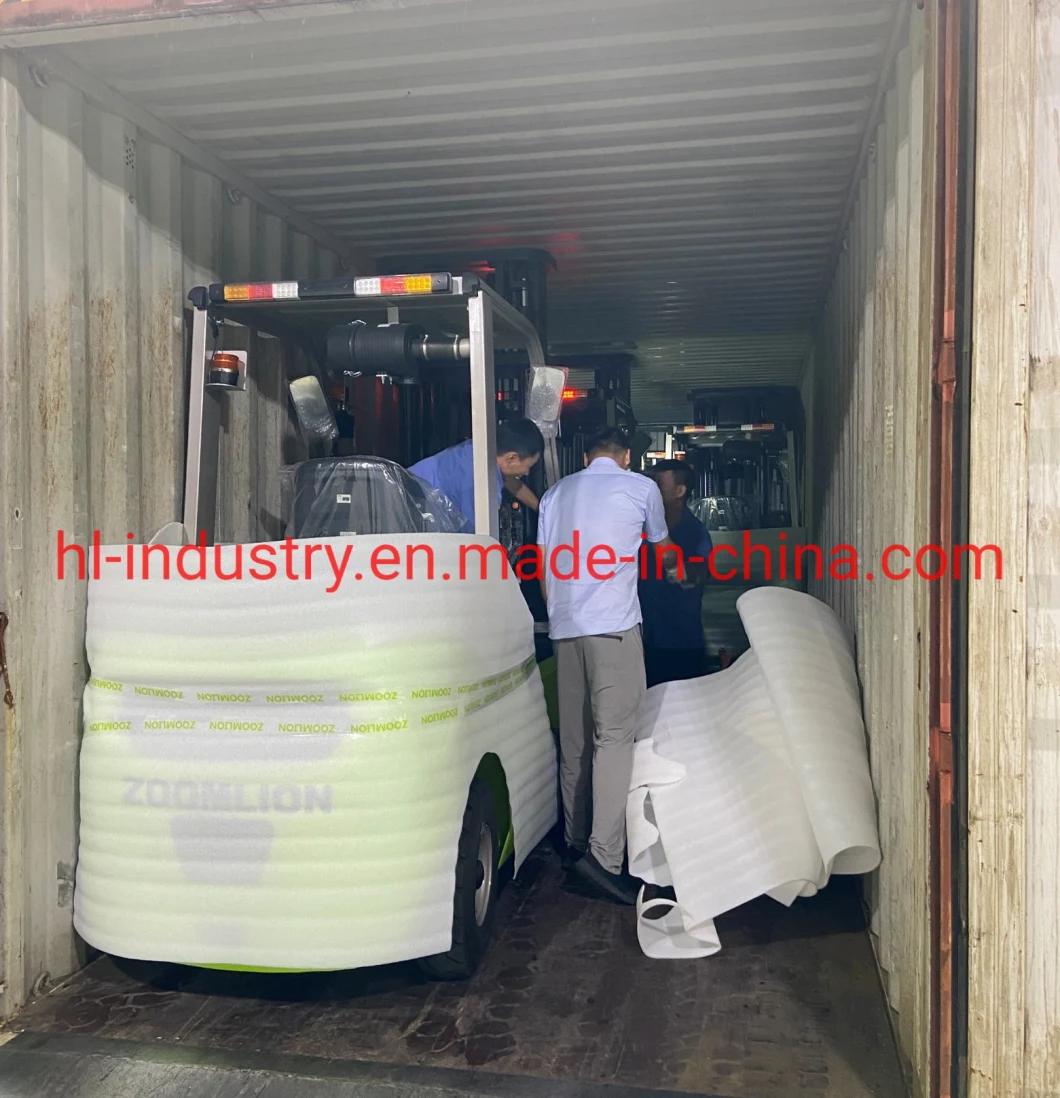

Packaging & Shipping



Company Profile



OUR SERVICE
1)Professional fast response mechanical engineers and electrical engineers provide suitable solution method for you all around the world.
2)Engineers available to reach machinery overseas job site at any time required.
3) Technical Support of installation/training supplied to help customers to earn most profits with our machinery.
4) All variety of spare parts available to support the customer 24h*7days for the daily maintenance/repair purpose etc.

OUR PRICE
We work as the leading VIP dealers of various famous Chinese construction machinery manufacturers and are constantly treated with best price policy which is only provided to special internal high level permission.From numerous comparison and feedback from clients.Our price is always more competitive and much favorable than the customer buy directly from manufacturers.

FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 7-20 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
