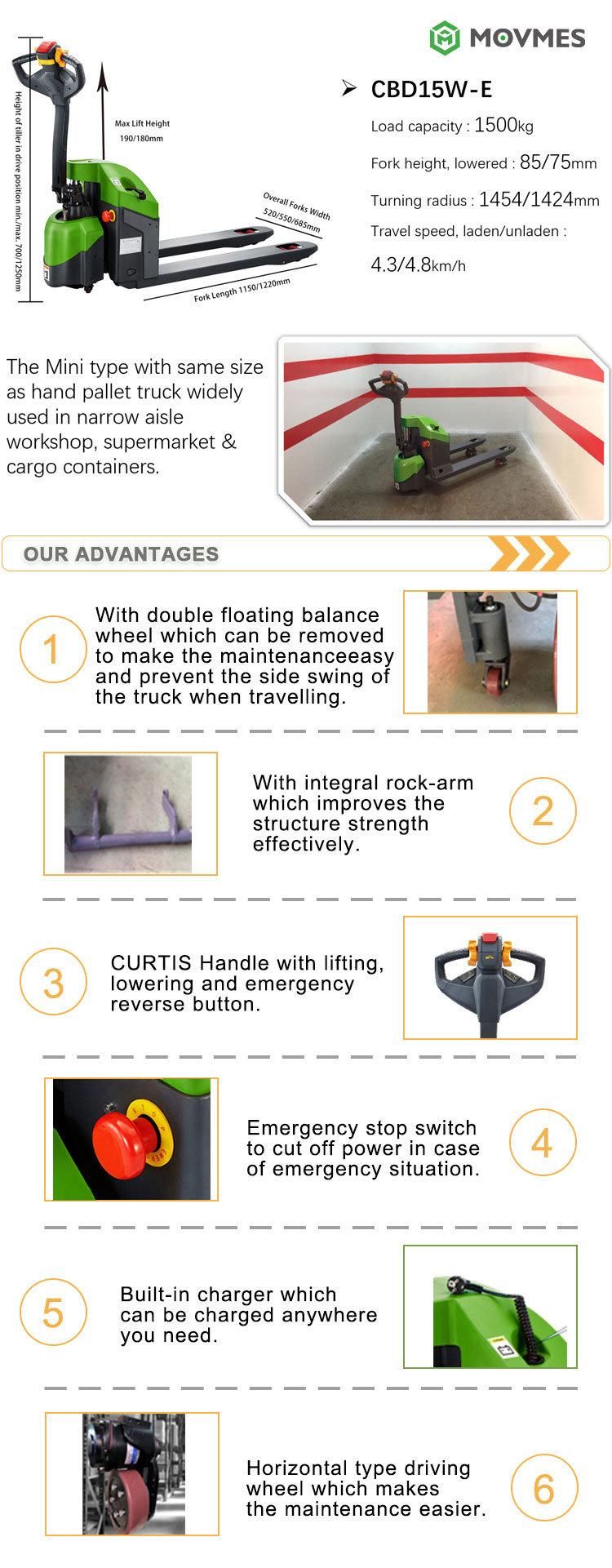

• Model NO.：CBD15W-E
• Fuel：Electric
• Load center：500mm
• Lift height：190mm
• Condition：New
• Name：1.5 Ton Electric Pallet Truck
• Center Distance：600 mm
• Fork Height,Lowered：85 mm
• Tyre Size,Front：Dia 195X70mm
• Tyre Size,Rear：Dia 80X93 mm
• Max.Height of Mast,Extended：190,180mm
• Overall Length：1654,1724mm
• Length to Face of Forks：504 mm
• Fork Dimension：53,160,1150(1220) mm
• Overall Width of Fork：685,562 mm
• Turning Radius：1454,1424mm
• Travel Speed,Laden/Unladen：4.3,4.8km,H
• Battery Voltage/Rated Capacity：24V65ah
• Battery Weight：36kg
• Service Weight(with Battery)：205 Kg
• Transport Package：Two Sets Pack in One Package
• Specification：1800x570x750mm
• Trademark：MOVMES
• Origin：China, Ningbo
• HS Code：8427109000
• Production Capacity：500 Sets,Month

Main Configuration1.) CURTIS Controller2.) 24V DC Power--brushless motor3.) RUYI Tiller4.) 24V 65AH GEL Battery5.) 24V6A Charger included
CBD15W-Lix
1.5ton electric pallet truck
QEXPAND controller,24V205Ah LI-ION battery 482.0ton electric pallet truck can be used in rough terrain construction site
DC CURTIS controller,48V30Ah maintenance-free battery 2.0/2.5/3.0 ton stand-on electric pallet truck
ZAPI/CURTIS controller ,AC power ,24V210Ah lead-acid battery .
CE Certification

ISO9002:1995

ISO9001:2008(Quality management system)

ISO14001:2004(Environmental management system)

OHSAS18001:2007(Occupational Health and Safety management system)

We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of ISO3691-1  EN1175-1    EN16307-1

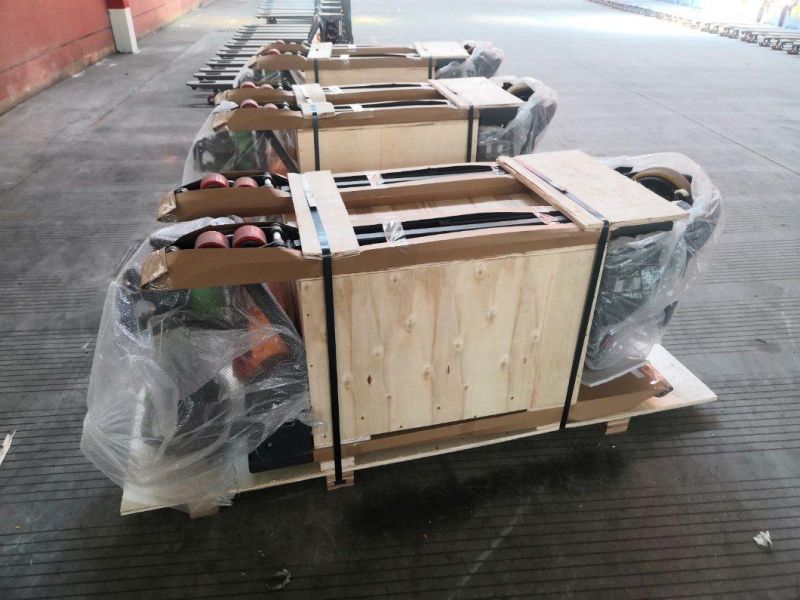

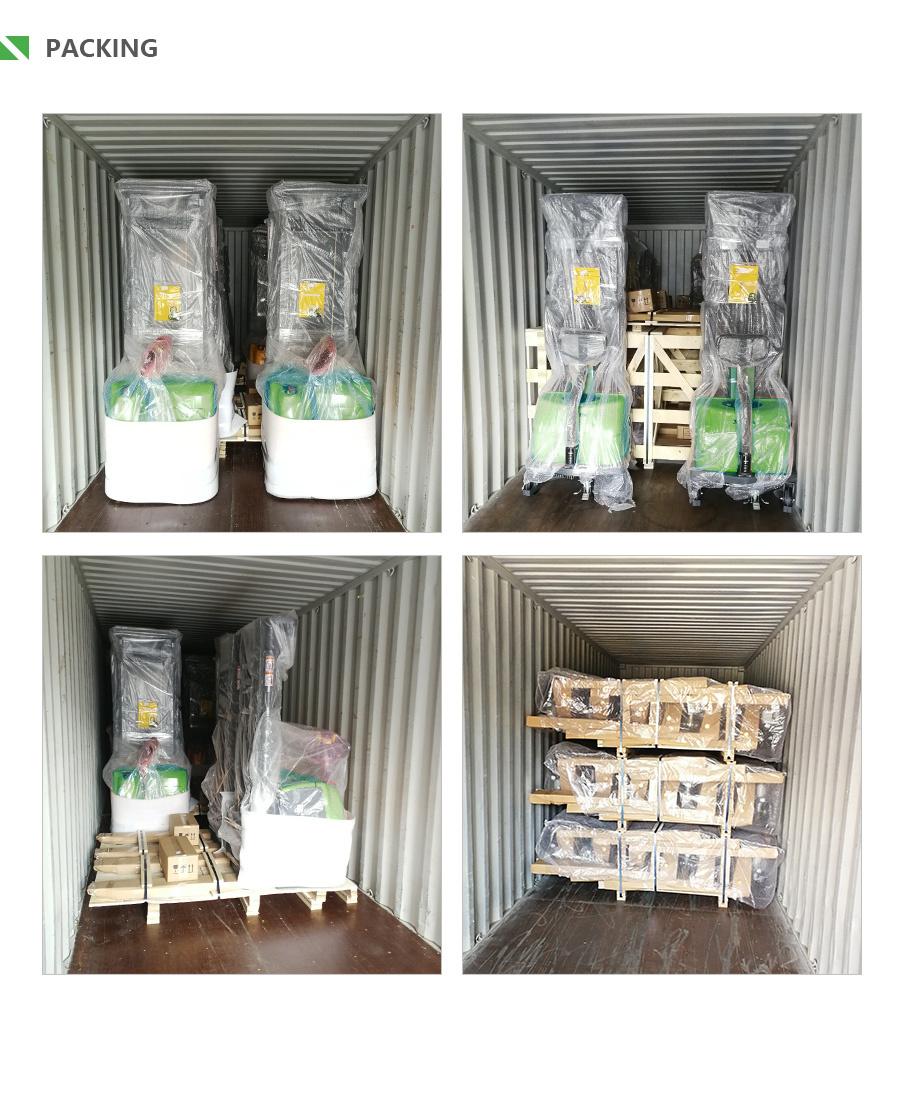

Packing and Delivery
MOVMES according to the delivery requirements of each customer, we carefully package each TRUCK. Before delivery, we will take photos and videos, and only after getting the customer's approval will we send them away.

Usually MOVMES producing time is 30-45 days after we receive the advanced 30% payment.

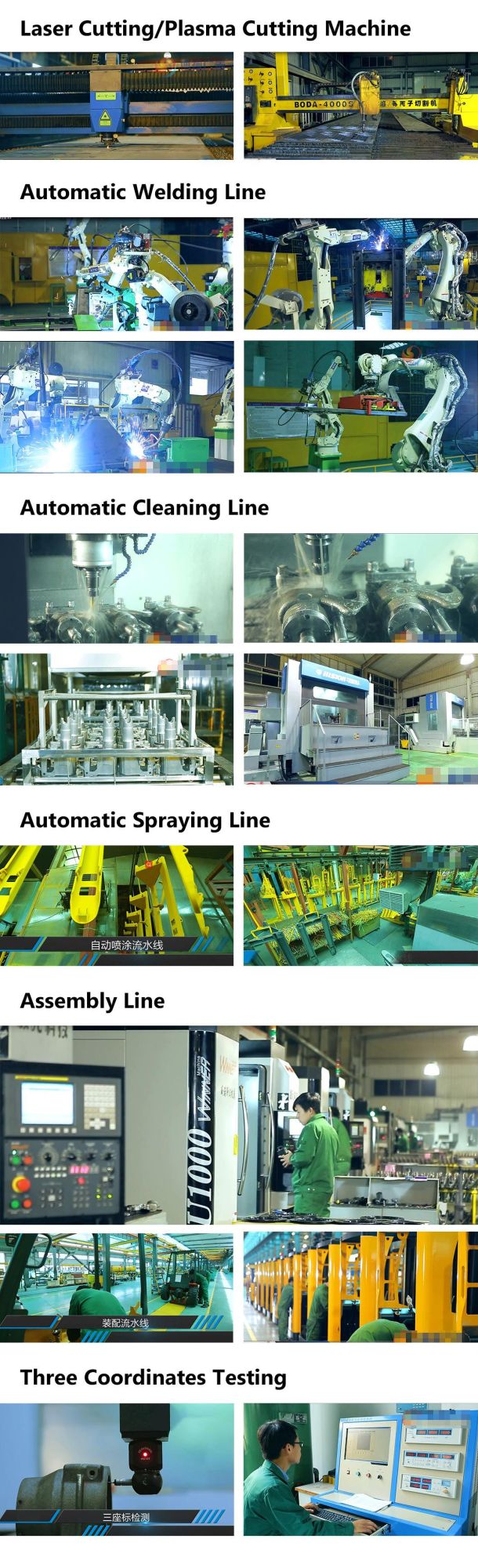

Factory strength
36 year's experience8 international approvals150,000m² factory area1,200 employees188 professional mechanical technicians77 senior engineers500 types warehouse equipment157 countries and regions exported to
FAQ

Q1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?

A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.



Q2: What's the specification of the chargers of CBD15W-E?

A2: Our chargers 24V20Ah LI-ION battery. Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.



Q3: Can MOVMES provide customized products? OEM or ODM products?

A3: Yes, Since 1985,Our factory is always professionally in developing and producing warehouse logistic equipment ,such as hand/electric pallet trucks,manual /electric slackers, reach trucks, forklifts and so on.We do OEM for Toyota/ Jungheinrich/ Clark / Hyster / Yale etc.



Q4: How long is the Warranty for MOVMES product?

A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.


                                  Recruit MOVMES Agent all over the world
Under the current international environment, the electric industry will definitely develop vigorously. As a the new brand in the warehousing and logistics industry, MOVMES has the strength factory and high-end products as the main support power. Now we are looking for agents all over the world to expand our brand In the market, please give us a chance to cooperate, you will get the same quality products as the world's famous brands.
