• Model NO.：LTR25
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070*120*40mm
• Wheelbase：1835mm
• Engine：Yanmar
• Color：Customized
• Weight：4800kg
• Rated Load：2.5ton
• Max.Gradeability：20%
• Overall Width：1604mm
• Overall Length：3060mm
• Transport Package：Container
• Specification：3060*1604*2200mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000units,Year

Rated weight2500kgCenter of load500mmOperating weight3200kgMax. lift height3000mmMin. ground clearance230mmWheel base1820mmTread1400mmOverall dimensions (l×w×h)mm4790×1000×2426Engine modelSD490GRated power33kwTransmission systemHydraulic-mechanical typeHighest speed16km/hDriving axleFront-rear engineering axleTurning angle35°Tyre8.25-16Steering systemLoad sensing, prior steering

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

After sales service

Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

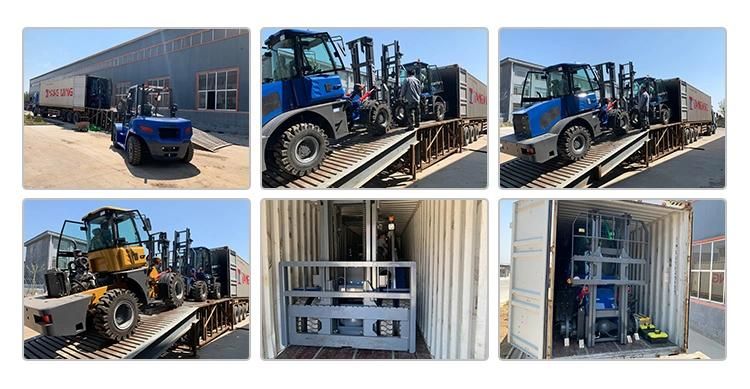

Packing&Shipping

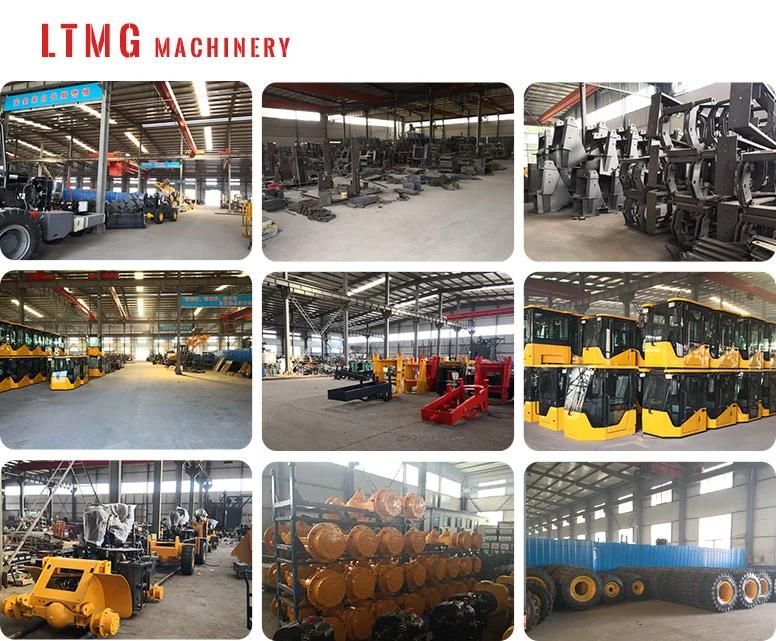

Factory Overview
