Mini Forklifts Diesel 2.5 Ton Side Shift Lonking Fd25 (T)

Maxizm Construction Machinery (Qingdao) Co., Ltd.
  • Cab Location：Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T
  • Fuel：Diesel
  • Load center：500mm

Base Info

  • Model NO.：FD25(T)
  • Lift height：3000~5000mm
  • Condition：New
  • Powertype：Diesel
  • Ratedcapacity(Kg)：2500
  • Jloadcentre(mm)：500
  • H1stdmaxliftingheight(mm)：3000
  • H3freeliftingheight(mm)：150
  • L5*W*Tstdforksize(mm)：1070*120*40
  • Masttiltangle(Deg)：6,12
  • L3frontoverhang(mm)：460
  • Transport Package：Nude Packing or by Container
  • Specification：1070*120*40mm
  • Trademark：LONKING
  • Origin：China
  • HS Code：842790000
  • Production Capacity：10000 Units,Month

Description

MODELFD25(T)PowertypeDieselRatedcapacity(Kg)2500JLoadcentre(mm)500h1STDMaxliftingheight(mm)3000h3Freeliftingheight(mm)150L5*W*TSTDForksize(mm)1070×120×40Masttiltangle(deg)6/12L3Frontoverhang(mm)460L4Rearoverhang(mm)470R1Min.turningradius(mm)2300Min.width for pallets 1,000×1,200 crossways (L×W)(mm)3970Speed(load/unload) Max.travelingspeed(km/h)20Max,liftingspeed(mm/s)(load/unload)530/550Max.gradient(%)20STD Dead weight(kg)3750S/PTread(frnt/rear)(mm)970/980L2Axledistance(mm)1650Min.groundclearance m2Mast(mm)110m1Frame(mm)150Optinal EngineEngine ModelC490BPG-225QC490GP-159C02-624YN4A055-31CRRated Power(kw/rpm)40/250039/250036.8/250036.8/2600Max.Torque(Nm/rpm)156/1800157/2000157/1800180/1800Number of Cylinders4444Displacement (L)2.672.672.672.67

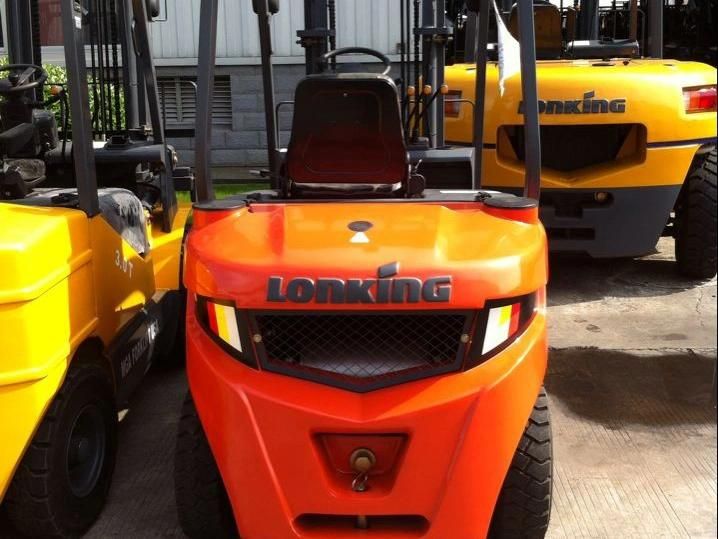

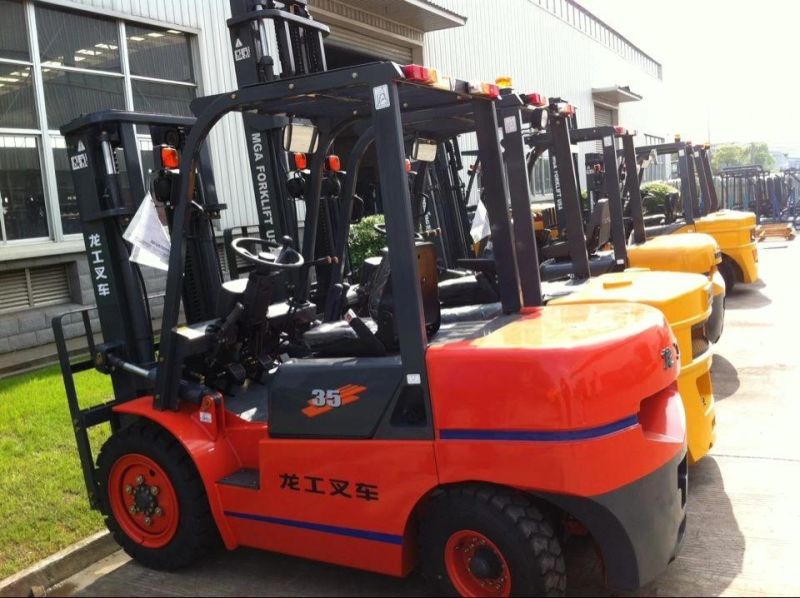

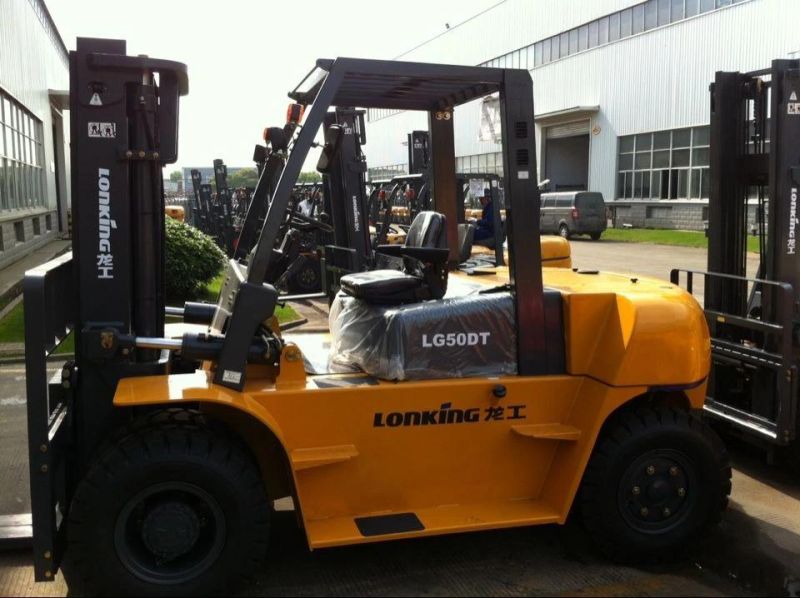

Product Show

Mini Forklifts Diesel 2.5 Ton Side Shift Lonking Fd25 (T)
Mini Forklifts Diesel 2.5 Ton Side Shift Lonking Fd25 (T)
Mini Forklifts Diesel 2.5 Ton Side Shift Lonking Fd25 (T)
Mini Forklifts Diesel 2.5 Ton Side Shift Lonking Fd25 (T)
