• Model NO.：FD35
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*125mm*50mm
• Weight：4780kg
• Engine：Mitsubishi
• Wheelbase：1700mm
• Color：Decided by Buyer
• Service Brake：Hydraulic
• Rated Power：35.4kw,2250rpm
• Max. Lifting Height：3000mm
• Transport Package：Container
• Specification：2760mm*1285mm*2140mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

Manufacturer                         LTMGModel                               Power shift T/M         FD35TManual shift T/M         FD35CLoad capacity                       kg3500Load center  mm500Power unit   Diesel  Operator type   Driver/seatTire type  Pneumatic Wheel Front/rear 2/2Max. lifting height                mm3000Free lift                                mm150Fork size                 L*W*Tmm1070*125*50Tilt range                       Mast forward/backward        deg6/12Overall length(without fork)     mm2760Total width  mm1285Mast height (fork lowering)   mm2075Overall height fork raised     With backrest                       mm4250Height to head guard             mm2140Turning radius(outside)          mm2495Front face of fork to front axle mm485Min. right angle stacking aisle
without load length&clearance  mm2975Speed Max Travelling         full/no loadkm/h18/19.5Lifting                        full/no load      mm/s450/500 Lowering                   full/no load      mm/s450/420Max.drawbar pull         Power shift T/M       full/no load                                      kg2200/1000Manual shift T/M     full/no load                                      kg2200/1000Gradeability at 1.6km/h       Power shift T/M       full/no load                                      %18/20Manual shift T/M     full/no load                                      %18/20Truck weight kg4780Weight  distribution      Full  load
front/rear    kg7380/900No  load
front/rear     kg1820/2960Tires                          Numberfront/rear2/2Modelfront axle 28x9-15-12PRrear axle6.50-10-10PRWheelbase  mm1700Tread                                           Front/rearmm1060/970Ground clearance              At lowest point(mast)                mm120Framemm135Brake                                           Service  brake Hydraulic-foot pedal                                        Parking brake Mechanical-hand lever                                 Battery                                         Voltage/capacityV/AH12/80Engine                                         Model Mitsubishi S4SRated powerkw/rpm35.4/2250Rated torqueN.m/rpm170/1700Number of cylinders 4PlacementL3.059Fuel tank capacityL70Transmission                             Speed forward/backward        Power shift T/M            Manual shift T/M             1-1 power shift T/M                2-2 manual shift T/MOperating pressure                    Hydraulic system pressure       kg/cm²180
Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.


After sales service
LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

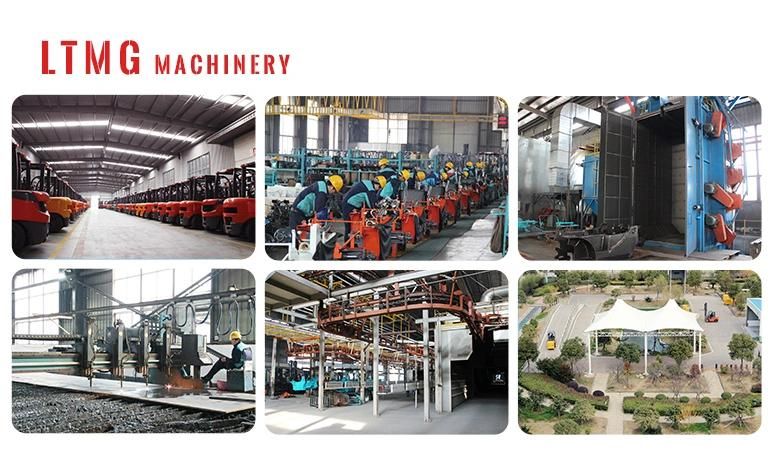

Our factory

Shipping & package
