China Maufacturers New Full 1.5 T/Ton Lifting Capacity 3m Lifting Height Walkie/Battery Reach Pallet Stacker for Warehouse/Automatic/Electric
Qingdao Zongjin Engineering Machinery Co., Ltd.- After-sales Service：Video Technical Support
- Warranty：1 Year
- Cab Location：Not Adjustable
- Type：Powered Pallet Truck
- Power：AC Motor
- Load Capacity：1.5 Ton
Base Info
- Model NO.：CDDR15-III
- Fuel：Electric
- Load center：600 mm
- Lift height：2500,3000,3500,4500 mm
- Condition：New
- Name：Electric Walkie Stacker,Forklift Truck
- Height,Lowered：90 mm
- Driving Wheel：Dia 250X70 mm
- Loading Wheels：Dia80*84 mm
- Additional Wheels：Dia 150X60 mm
- Wheels ,Number Front Rear：1X+1,4
- Fork Dimensions：60,180,1070(1150)mm
- Turning Radius：1575 mm
- Aisle Width for 800X1200 Lengthways：2420 mm
- Travel Speed,Laden/Unladen：5.8,6 Km,H
- Lift Speed,Laden/Unladen：0.11,0.16 M,S
- Lowering Speed：0.14,0.19 M,S
- Battery Voltage.Nominal Capacity：24,240V,Ah
- Battery Weight：220 Kg
- Service Weight：1140,1190,1200,1290 Kg
- Transport Package：Tandard Export Package for Electric Pallet Truck
- Specification：1950 mm*820 mm*1735 mm
- Trademark：MOVMES
- Origin：China, Ningbo
- HS Code：8427109000
- Production Capacity：800 Sets,Month
Description
Certification:
ISO9002:1995
ISO9001:2008(Quality management system)
ISO14001:2004(Environmental management system)
OHSAS18001:2007(Occupational Health and Safety management system)
We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of EN3691-5:2014 and EN3691-1:2012
Tesing System
Product test before delivery:
Total five test items:
1.Strengthening test detection
2.Stability detection
3.Detection of climbing performance and current
4.Debugging and testing of braking performance
5.Testing of technical parameters

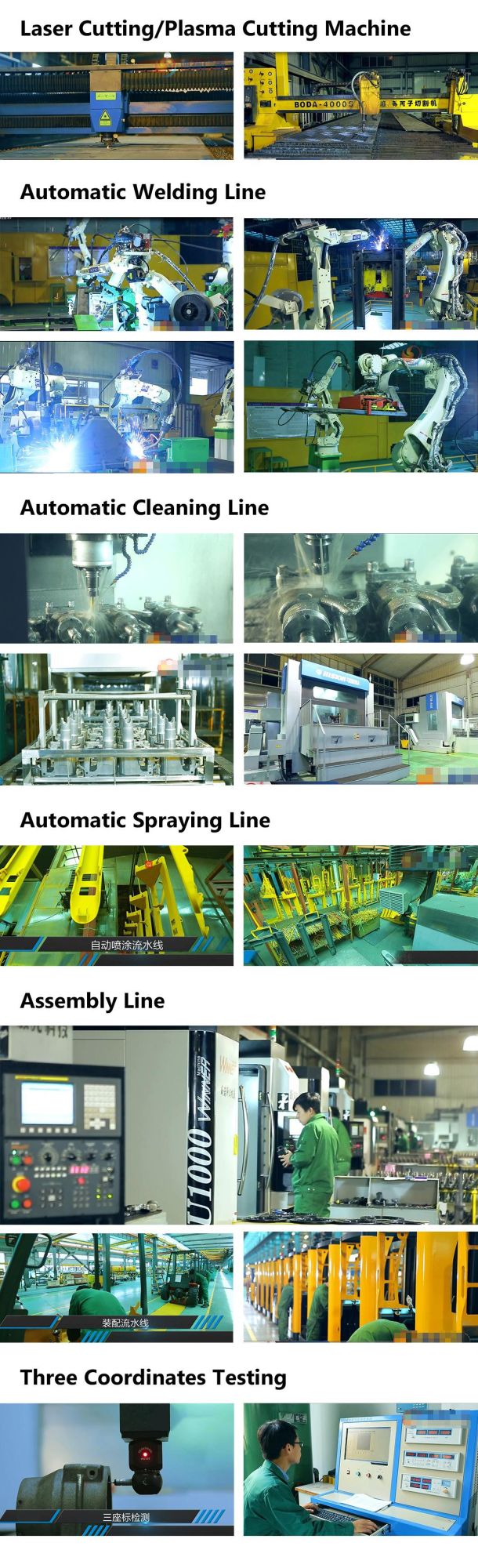

Factory strength
FAQ:Q1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?
A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.
Q2: What's the specification of the chargers?
A2: Our chargers voltage could be 24V /48V ,Side-way battery with roll-out system is very convenient replacement. Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.
Q3: Can MOVMES provide customized products? OEM or ODM products?
A3: Yes, Since 1985,MOVMES is always professionally in developing and producing warehouse logistic equipment ,such as manual/electric pallet trucks&slackers, reach trucks, forklifts and so on.We do OEM for Toyota/ Jungheinrich/ Clark / Hyster / Yale etc.
Q4: How long is the Warranty for MOVMES product?
A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.
