AC Motor Battery 1.5 Ton Pallet Truck Stacker Electric Forklift

Xiamen LTMG Machinery Co., Ltd.
  • After-sales Service：Service Points Overseas, Free Accessories
  • Warranty：1 Year
  • Cab Location：Not Adjustable
  • Type：Stacker
  • Power：AC Motor
  • Load Capacity：1.5 Ton

Base Info

  • Model NO.：ERB15D
  • Fuel：Battery
  • Load center：600mm
  • Lift height：3000mm
  • Condition：New
  • Wheelbase：1325mm
  • Weight：1280kg
  • Fork Size：1150mm180mm*60mm
  • Controller：Curtis
  • Operating Type：Stand on
  • Transport Package：Container
  • Specification：1970mm*1050mm*2100mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8428109000
  • Production Capacity：1000sets,Year

Description

Model ERB10/ERB12ERB15ERB20Power type Battery poweredBattery poweredBattery poweredDriving style PedestrianPedestrianPedestrianLoad capacity                  kg1000/120015002000Load center                      mm600600600Overall length                 mm181519501980Overall width                   mm800875900Min. overall height         mm2110180020602180233521101800206021802335211018002060Fork dimension  L×b×mmm1150×160×561150×160×561150×160×56Outside width of forks     mm540560/680560/680Ground clearance             mm293029Base distance                 mm125013801415Wheel material PUPUPUDriving wheel sizemmφ250×80φ230×80φ250×80Front wheel sizemmφ78×70φ78×70φ78×70Balance wheel sizemmφ125×75/φ100×40φ125×75φ125×75Min. steering radius               mm146016601550Min. width of aisle mm≥2150≥2500≥2500Max. lift height                      mm1600250030003300350016002500300033003500160025003000Max. overall height                mm2110307234803780398021103072348037803980217230723572Min. fork height                    mm909090Travel speed(laden/unladen)Km/h3.5/4.04.5/5.54.5/5.0Lift speed(laden/unladen)mm/s90/13093/14390/130Lowering speed(laden/unladen)mm/s95/120120/9495/120Brake type ElectromagneticElectromagneticElectromagneticPower of driving motorKw0.71.51.2Power of lift motorKw2.22.22.0Battery capacity/voltageAh/V95/246.875165/24Weight of batterykg50160160Net weight(without battery)kg545585605635645750910940950960780/940/970AC Motor Battery 1.5 Ton Pallet Truck Stacker Electric ForkliftAC Motor Battery 1.5 Ton Pallet Truck Stacker Electric Forklift

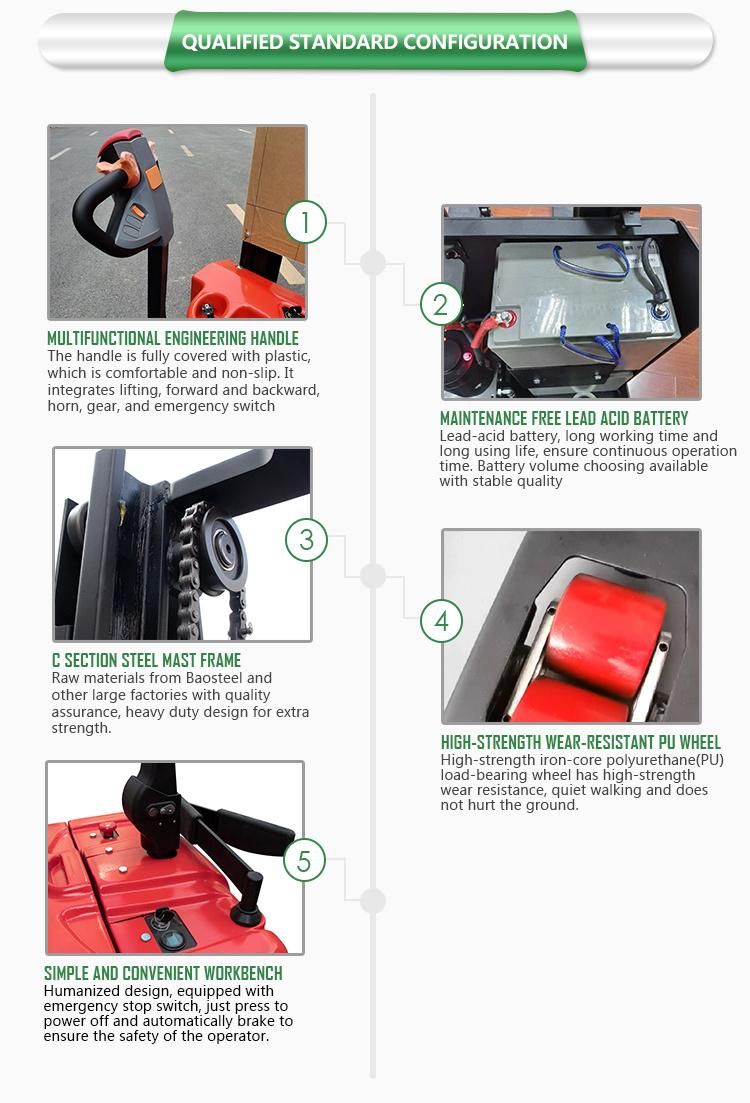

---Product Advantages

1. Capacity from 1.0t-2.0t, lift height(1t-1.5t) 1.6m-5.0m, 2ton from 1.6m-3.0m

2. Simple structure,easy to maintain and repair.

3. Long operation handle allows more light steering.

4. Horizontal driving wheel,electromagnetic brake.

5. CURTIS controller,MAHLE hydraulic motor.

6. Safety features include a horn and belly  reverse button.

7. Bias type, middle driving type, straddle leg can be optional per your request.

8. Automatic battery charger,battery voltage indicator.

9. Integral strong chassis with alloy steel insert legs.

---Main feature

1. Various capacity meet your requirement,1.0t/1.2t/1.5/2.0t.

2. Bais walkie type, operator has very good overview.

3. Middle drive type and straddle type are optional.
AC Motor Battery 1.5 Ton Pallet Truck Stacker Electric Forklift
AC Motor Battery 1.5 Ton Pallet Truck Stacker Electric Forklift
AC Motor Battery 1.5 Ton Pallet Truck Stacker Electric Forklift

AC Motor Battery 1.5 Ton Pallet Truck Stacker Electric Forklift

AC Motor Battery 1.5 Ton Pallet Truck Stacker Electric Forklift

AC Motor Battery 1.5 Ton Pallet Truck Stacker Electric Forklift
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around
the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period
quality warranty.
Detail clauses and policies please check our website and product certificate.

---FAQ
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.

4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5.What payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

6.What logistics way we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,
Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship
trucksby railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,
UPS,or Fedex.

7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from
7 days to 60 days.
