• Model NO.：FD30T
• Load center：500mm
• Lift height：>5000mm
• Condition：New
• Engine：Xinchai,Isuzu,Mitsubish
• Weight：3620kg
• Rated Capacity：2500kg
• Fork Size：1220X122X40mm
• Transmission Box Type：Automatic Transmission
• Tire Type：Pneumatic Tire
• Transmission：Hydraulic
• Optional：Attachment, Side Shifter, Sealed Cab, Mast, etc
• Mast：Duplex Mast (Triplex Mast Optional)
• Color：Customized
• Certification：CE,ISO
• Transport Package：Container
• Specification：2605x1150x2090mm(LXWXH)
• Trademark：Hifoune
• Origin：Cn
• HS Code：8427109000
• Production Capacity：4500sets,Year

ModelUNITFG25TSpecificationsPower Unit gasolineOperator Type Driver/seatTransmission Box Type Electronic hydraulic transmissonRated Capacitykg2500Load Centermm500Max. Lifting Heightmm3000Tyre Type Pneumatic TyreTyre Number(Front/Rear) 2/3Tyre Size (Front/Rear) 7.00-12-12PR/6.0-9-11PRPerformanceLifting Speed (Loaded/Unloaded)mm/s500/550Lowering Speed (Loaded/Unloaded)mm/s480/450Travelling Speed (Loaded/Unloaded)km/h17/19Max. Gradeability (Loaded)%21Max. Drawbar Pull (Loaded)n18Mast Tilting Angle (Fwd/Bwd)deg6/12Free Lifting Heightmm150Turning Radiusmm2240DimensionsOverall length (without fork)mm2605Overall Widthmm1150Overhead Guard Heightmm2090Fork Size (LxWxT)mm1220×122×40Mast Height (Fork lowered)mm2090Battery(Voltage/Capacity)V/Ah12/90Truck Weightkg3620Fuel tank capacityL70EngineBrand  NISSANModel K21Rated Powerkw/rpm31.2/2250Rated torquen-m/rpm143.7/1600Number of cylinder 4Displacement 2.06





Shipping & Packing

About us

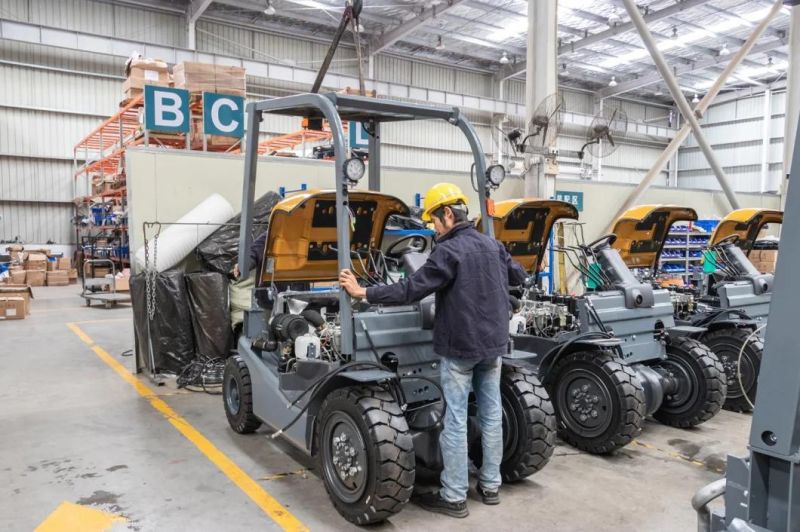

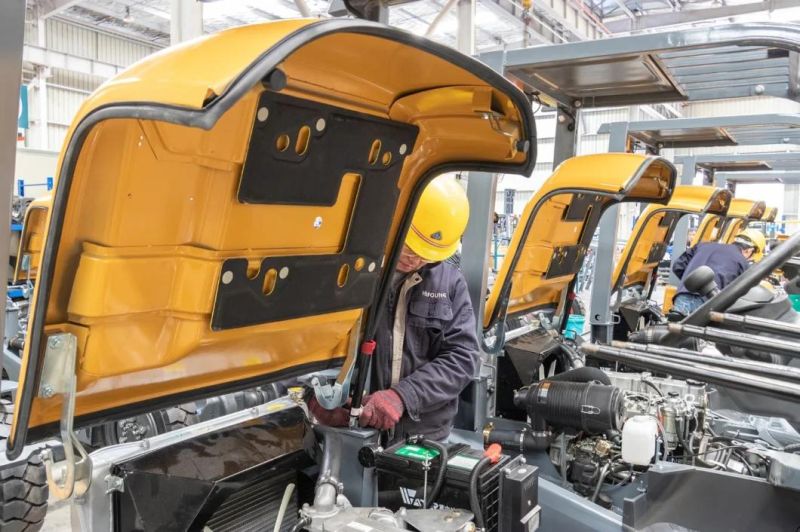

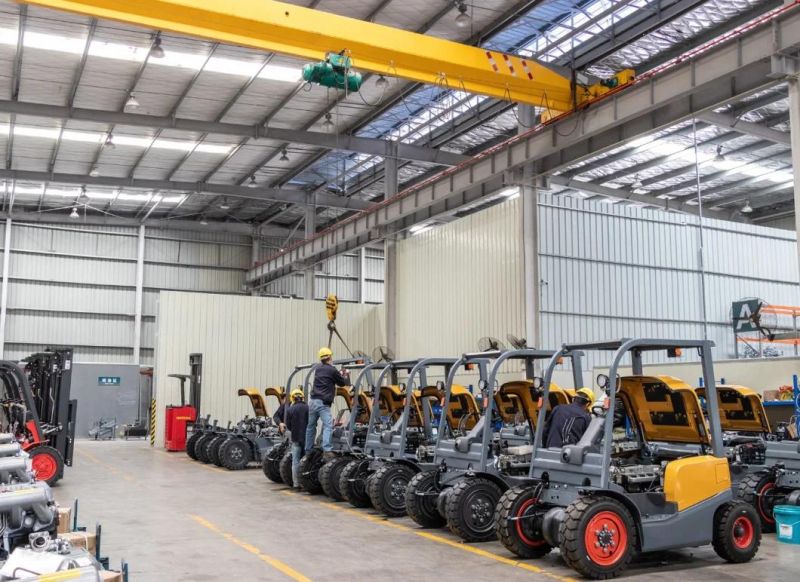

Xiamen Hifoune Machinery Co., Ltd. is located in the Xiangan industrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. Our main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipment. We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links
