• Model NO.：FD30T
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Rated Loading Capacity：35000kg
• Transport Package：Comply with Export Packaging Requirements
• Specification：1070mm*125mm*50mm
• Trademark：XCMG
• Origin：Jiangsu, China
• HS Code：84301000
• Production Capacity：1000,Year

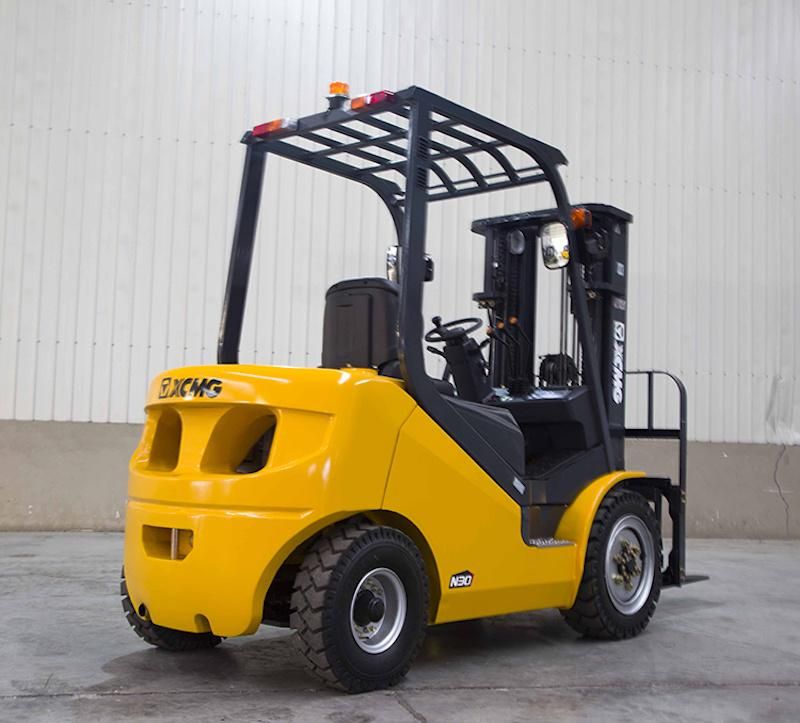

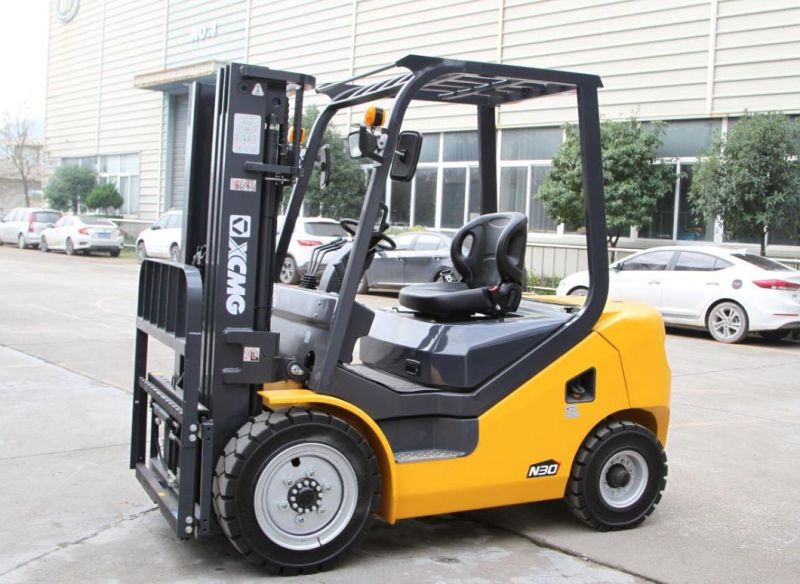

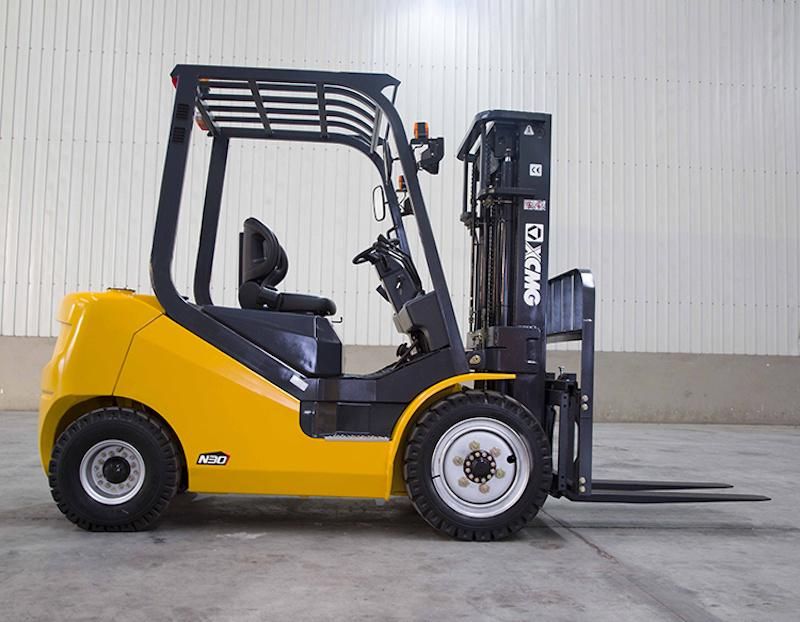

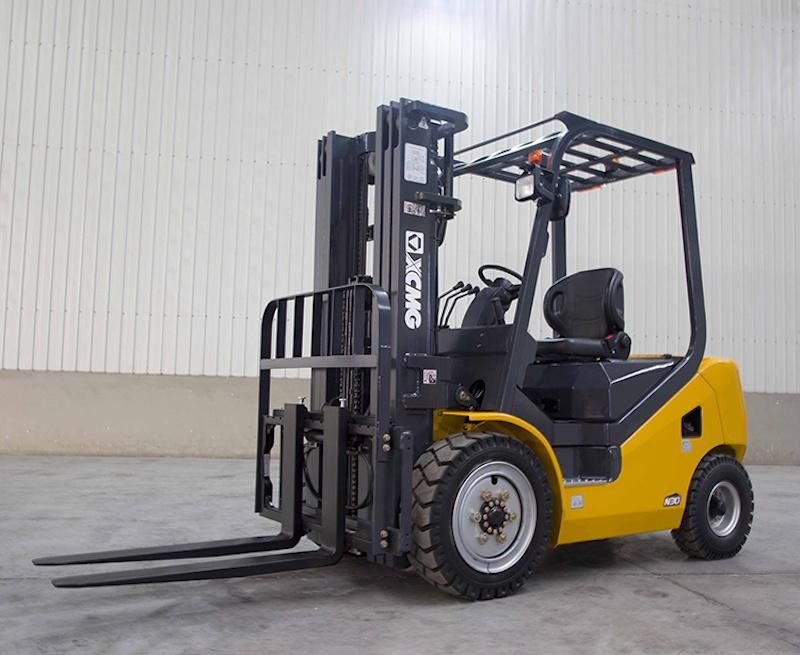

Overview Product Description

Engine:Xinchai A498/Xinchai C490/Mitsubishi S4S/YANMAR

Mast option:2 stage mast lifting height from 3000mm to 6000mm;3 stage full free mast lifting height from 3000mm to 6000mm
Tyre option:Pneumatic tyres, Sollid tyres, Double front tyres, Non-marking solid tyres

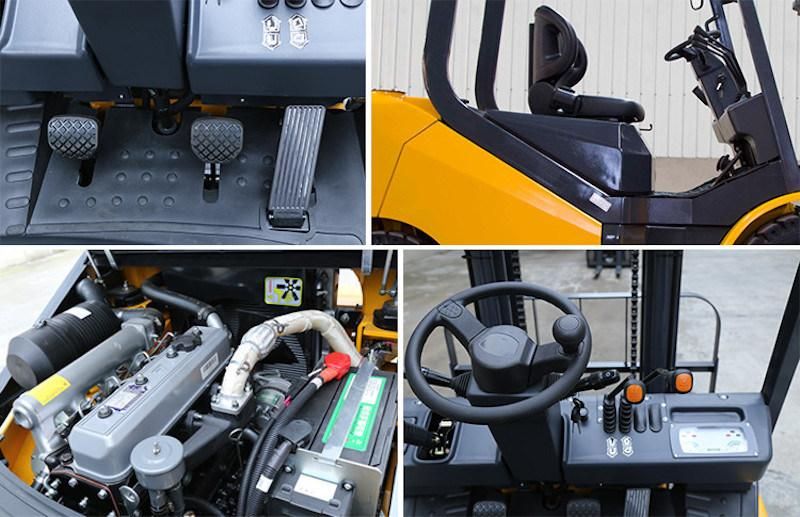

Advantages:
1, One-piece designed of suspension frame.
2, New water tank & cooling system.
3, Larger operation space.Optimized steering wheel, operating handle and pedals.
4, High-efficency hydraulic system, lower fuel comsumption.
5, Enhanced wide view mast improves the work efficency and operating safety.
 Product Parameters



Model FD30T-E   FD35T-E   FD30T-A   FD35T-AFD30T-F   FD35T-F  FD30T-JB FD35T-JB(FD30-E)(FD35-E)(FD30-A)(FD35-A)(FD30-F)(FD35-F)(FD30-JB)(FD35-JB)Power Type DieselRated Load CapacityQ(kg)30003500300035003000350030003500Load CentreC(mm)500Rated Lift HeightH3(mm)3000Free Lift HeightH2(mm)100Fork Size (L×W×T)mm1070×125×451070×125×501070×125×451070×125×501070×125×451070×125×501070×125×451070×125×50Mast Tilt Angle (F/R, α°/β°)deg6°/12°Fork Overhang (Wheel Center to Fork Face)X1(mm)484Rear OverhangX2(mm)595635595635595635595635Ground Clearance (Bottom of Mast)H7(mm)145Length to Face of Fork (Without Fork)L1(mm)27732813277328132773281327732813Overall WidthB1(mm)1225Mast Lowered HeightH1(mm)2070Mast Extended Height (With Backrest)H4(mm)4070Overhead Guard HeightH5(mm)2235Turning Radius (Outside)Wa(mm)24502480245024802450248024502480Min.Aisle width for palletsAst(mm)42054235420542354205423542054235Travel Speed (No Load)km/h19Lifting Speed (Full Load)mm/sec430400430400430400410380Lowering Speed  (Full Load)mm/sec450Max.Drawbar Pull (Full Load/No Load)KN16(15.7)18.5(14.8)18.5(14.8)Max.Gradeability (Full Load)%20Tyre (Front x 2)mm28×9-15-12PRTyre (Rear x 2)mm6.50-10-10PRFront TreadB2(mm)1000Rear TreadB3(mm)980WheelbaseY(mm)1700Total Weightkg43404840434048404340484043404840Front Axle Weight Distribution (Full Load)kg64907320649073206490732064907320Rear Axle Weight Distribution (Full Load)kg820930820930820930820930Front Axle Weight Distribution (No Load)kg17642040176420401764204017642040Rear Axle Weight Distribution (No Load)kg25462710254627102546271025462710BatteryV/Ah12/90Engine Model A498BT1-35C490BPG-237C490BPG-37 (Eu)C240PKJ30 (Eu)Engine Manufacturer XINCHAIXINCHAIXINCHAIISUZURated Output / r.p.m.kw45/250036.8/265036.8/265034.5/2500Rated Torque / r.p.m.N·m193/1600-1800156/1800156/1800139/1800No.of Cylinder 4Bore x Strokemm98X10590X10590X10586×102Displacementcc3168267026702369Fuel Tank CapacityL50Transmission Type HydraulicTransmission Stage (FWD/RVS) 1/1(2/2)Operating Pressure (For Attachments) Mpa17.5Product Show



Company Profile



FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
