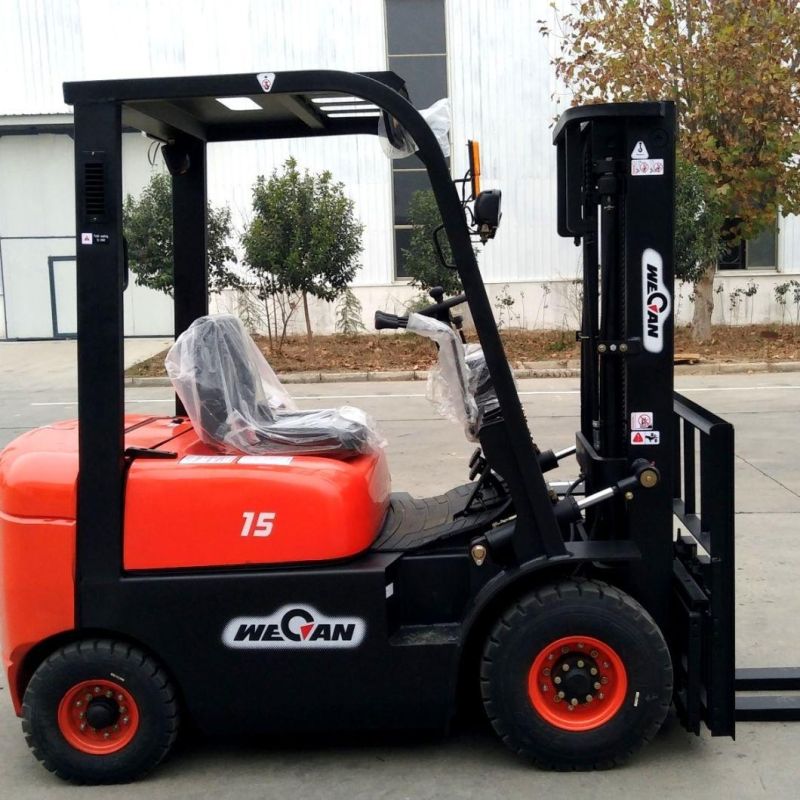

• Model NO.：CPCD15FR
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Max. Lifting Height：1995 mm
• Min. Lifting Height：4030 mm
• Fork Width：1085 mm
• Options：Container Mast
• Color：Red
• Capacity：1.5
• Keywords：Forlift
• Application：Warehouse Material Handling
• Tire：Solid
• Power Souce：Diesel Engine
• Type of Power Shift：Tor-Con
• Engine Model：485
• Wheel Base：1450 mm
• Fork Overhang：430 mm
• Transport Package：Nude
• Specification：3195*1086*1995
• Trademark：WECAN
• Origin：China
• HS Code：84295100
• Production Capacity：500pices,Year

MODELCPCD15FRLoad capacity                      1500 kgLoad center                        500 mmPower typeDieselMax. lifting speeds(with load)        500 mm/sMax. driving speeds(with/without load)14.5-15 km/hMax towering (with load)            14.4/8.4 knGrade ability(with load)              15/20%Lifting height                      3000 mmFree lift                          70 mmTilting angles(forward-backward)6°/12°Min. turning radius                2000 mmMin. Right angle aisle width          1770 mmMin. under-clearance                110 mmDimensionsOverall length(including fork)    3195 mmOverall width                  1085 mmOverall height(mast lowered)      1995 mmOverall height(mast extended)    4030 mmOverall height to overhead guard      2085 mmFork overhang                      430 mmWheel base                        1450 mmTreadFront tread                    890 mmRear tread                    920 mmTireFront tire          6.50-10-10Rear tire5.00-8-10Total weight                        2650 kgFork width                        100 mmFork thickness                      35 mmBackrest height                    1000 mmFork length                        920 mmEngineEngine model485Rated power                    30 kwRotate speed at rated power      2600 rpmMax. Torque                    131 nmRotate speed at max. Torque      1700 rpmType of power shiftTor-con

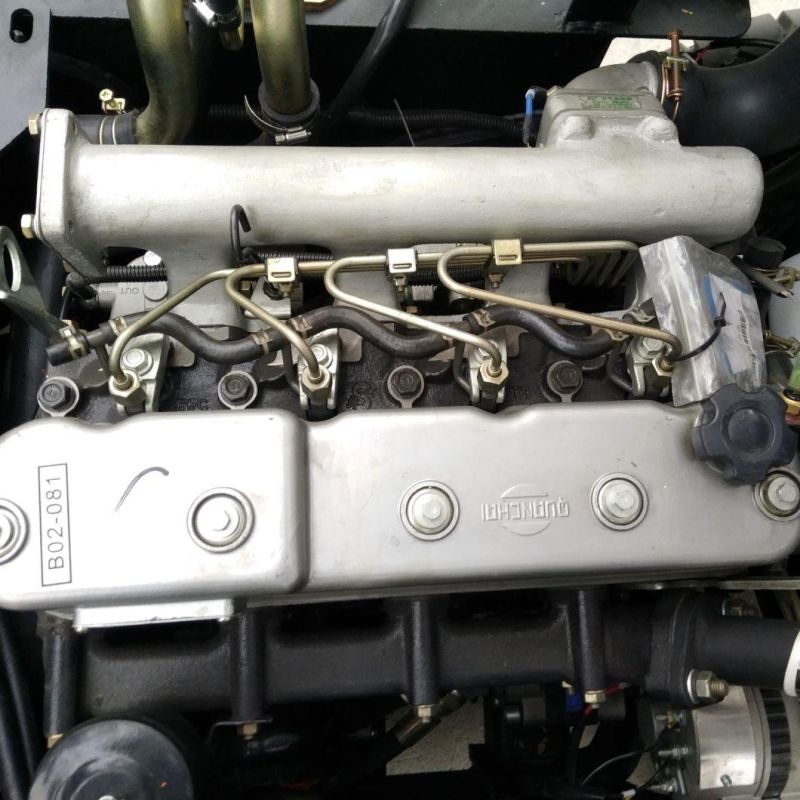

Detailed Images

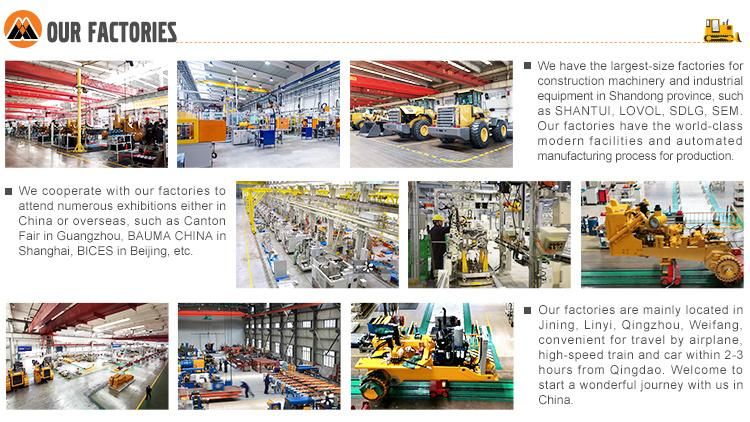

Company Profile
