• Model NO.：FG25
• Lift height：3000mm
• Condition：New
• Fork Size：1070mm*122mm*40mm
• Warranty：1 Year or 2000 Hours
• Weight：3580kg
• Tire Type：Pneumatic
• Engine：Nissan
• Color：Decided by Buyer
• Mast Height (Fork Lowering)：1995mm
• Free Lift：160mm
• Battery：12,60V,Ah
• Wheelbase：1600mm
• Transport Package：Container
• Specification：2530mm*1150mm*2120mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

Features   Manufacturer                            LTMGModel                                         FG25Load capacity                        kg2500Load center mm500Power unit   Gasoline/LPGOperator type  Driver/seat Tire type     Front/rear PnenumaticWheel Front/rear 2/2Dimension Max. lifting height                    mm3000Free lift                        mm160Fork size        L*W*Tmm1070*122*40Tilt range                               Mast forward/backward            deg6/12Overall length(without fork)     mm2530Total width    mm1150Mast height (fork lowering)   mm1995Overall height fork raised       With backrest                             mm4030Height to head guard              mm2120Turning raduis(outside)           mm2240Front face of fork to front axle mm450Min. right angle stacking aislewithout load length&clearence                    mm2690PerformanceSpeedMax Travelling                   full/no loadkm/h17/19Lifting             full/no load        mm/s550/580Lowering           full/no load                    mm/s450/550Max.drawbar pull                   Power shift T/M                 full/no load                                        kg1650/830Gradeability at 1.6km/h        Power shift T/M           full/no load                                      %22/18Weight           Truck weight  kg3580Weight   distribution            Full load             front/rear        kg5370/710No   load                 front/rear      kg1390/2190Frame          Tires                                       Numberfront/rear2/2Modelfront axle 7.00-12-12PRrear axle6.00-9-10PRWheelbase                              mm1600Tread                                                Front/rearmm970/970Ground clearence                 At lowest point(mast)                mm110Framemm115Brake                                           Service brake Hydraulic-foot pedal                                            Parking brake Mechanical-hand lever                                          Engine       Battery                                         Voltage/capacityV/AH12/60Engine                                         Model Nissan K25Rated powerPS(kw/rpm)47/2250(34.6/2250)Rated torquekg-m   max.(N.m)15.7/1600(153/1600)Number of cylinders 4PlacementL2.065Fuel tank capacityL70Transmission     Speed forward/backward          Power shift T/M                        1-1 power shift T/M   Operating pressure                   Hydraulic system pressure         kg/cm²180

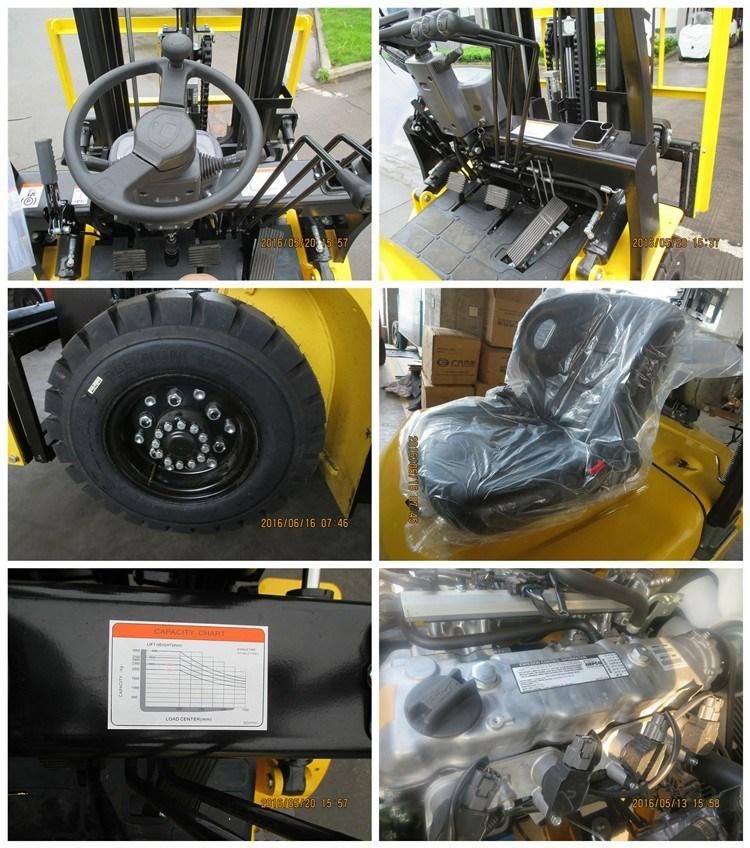

Product Features

      The standard LED lamps and warning lights make it safer,more energy efficient and create better werking condition.

1. Equipped with USA IMPCO gas system which is more reliable.
2. Thicker reinforcing plate ensures the safety and efficiency.
3. New designed overhead guard protective device prevent the sudden accidents.

Packaging and shipping

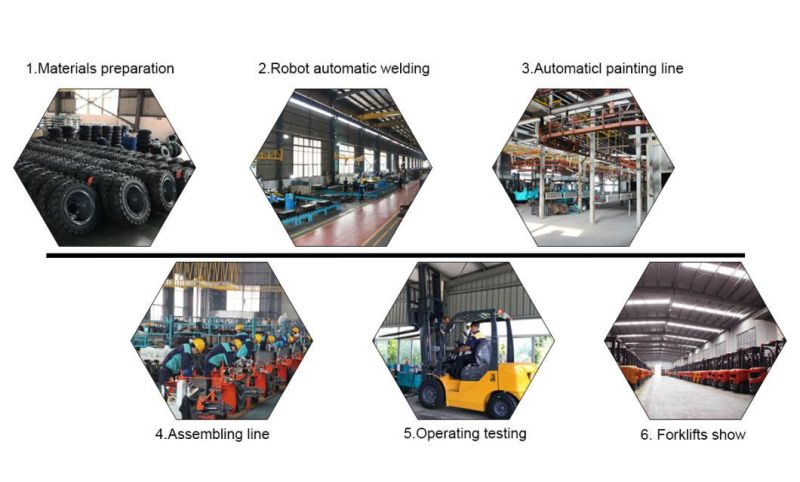

LTMG Factory


LTMG Clients

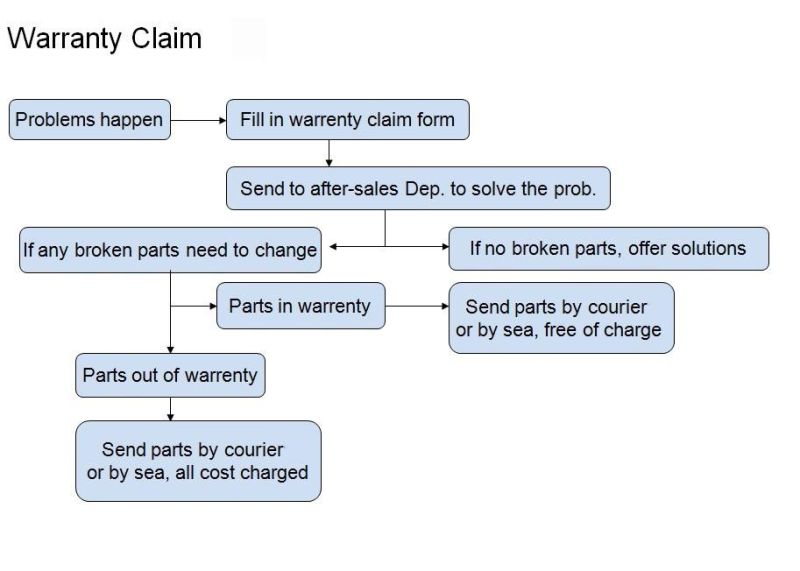

After sales service

LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours period quality warranty.
Detail clauses and policies please check our website and product certificate.
