Wecan 1.8 Tons Diesel Forklift Truck (CPCD18FR) Forklift
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Support
- Warranty：Support
- Cab Location：Not Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
Base Info
- Model NO.：CPCD18FR
- Fuel：Diesel
- Load center：500mm
- Lift height：3000~5000mm
- Condition：New
- Fork Length：920 mm
- Fork Width：100 mm
- Max. Lifting Height：4030 mm
- Min. Lifting Height：1995 mm
- Engine Model：485
- Weight：2850 Kg
- Type of Power Shift：Tor-Con
- Backrest Height：1000 mm
- Fork Thickness：35 mm
- Transport Package：Nude
- Specification：3195*1085*2085 mm
- Trademark：WECAN
- Origin：Shandong, China
- HS Code：8429510000
- Production Capacity：1000 Units,Year
Description
Dimensions
Lifting height (H1)
mm
3000
Min. under-clearance
mm
110
Min. right angle aisle width
mm
1770
Overall length (including fork) (A)
mm
3195
Overall width (B)
mm
1085
Overall height (mast lowered) (H)
mm
1995
Overall height (mast raised) (H2)
mm
4030
Overall height (overhead guard) (H3)
mm
2085
Fork length (A3)
mm
1070
Fork width (B3)
mm
122
Fork thickness (H4)
mm
40
Performance
Max. driving speed (with/without load)
km/h
14.5/15
Max. lifting speed (with load)
mm/s
500
Max. traction (with/without load)
kN
14.4/9.1
Gradeability (with/without load)
%
15/20
Tilting angles (forward/backward) (α/β)
°
6/12
Total weight
kg
2850
Engine
Engine model
China Engine
Power
kw
30
Rated speed
rpm
2600
Displacement
L
2.07
No. of cylinder
4
Wheel
Front overhang (A1)
mm
430
Wheel base (A2)
mm
1450
Front tread (B1)
mm
890
Rear tread (B2)
mm
920
Front tire
mm
6.50-10-10
Rear tire
mm
5.00-8-10

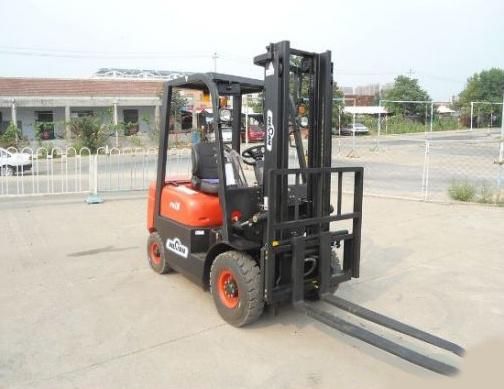

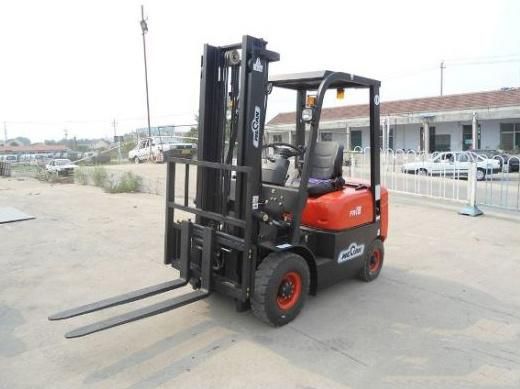

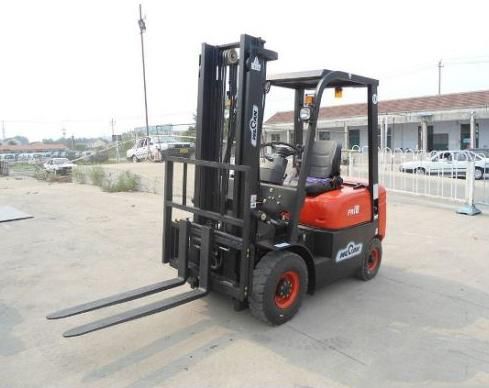

Pictures
