Forklift Diesel Fd35 3500kg Japan Engine Forklifts Price
Jinan Shine International Trade Co., Ltd.- Cab Location：Adjustable
- Type：Ordinary Combustion Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：FD35
- Lift height：3000~5000mm
- Condition：New
- Hydraulic Pumps：Shimadzu Made in Japan
- Multitandem Valves：Shimadzu Made in Japan
- Engine：Optional Yanmar Nissan Engine
- Transmission：Automatic
- Mast：3m to 7m Reach
- Lamp：LED Lights
- Overhead Guard：Waterproof
- Attachment：VIP Solution
- Tires：Pneumatic or Solid
- Color：Customize for You
- Transport Package：Nude Packaging
- Specification：2825*1230*2170 mm
- Trademark：SNSC
- Origin：China(Mainland)
- HS Code：8427109000
- Production Capacity：12000 Units,Year
Description
SNSC FD35 FORKLIFT SPECIFICATIONSSpecifications Unit FD35 1 Characteristics Power diesel 2 Rated Capacity kg 3500 3 Center of load mm 500 4 Lifting height mm 3000 5 Free lifting height mm 145 6 Forks L×W×H mm 1070×125×45 7 Tilt Forward/Backward . 6/12 8 Min.turning radius mm 2600 9 Min.ground clearance(Mast) mm 120 10 Overhead guard height mm 2170 11 Height from seat to overhead guard mm 480 12 Front overhang mm 545 13 Perf Max.traveling speed(loaded) km/h 20 14 Max.lifting speed(loaded/empty) mm/s 470/520 15 Drawbar pull/Gradeability kN/% 18/20 16 Dimensions Overall length (without fork) mm 3895 17 Overall width mm 1230 18 Mast lowered height mm 2095 19 Mast extended height mm 4265 20 Chassis Tire Front 28×9-15-12PR 21 Rear 6.50-10-10PR 22 Wheelbase mm 1800 23 Tread width Front/Rear mm 1000/970 24 Curb weight None-load kg 4450 25 Powertrain Battery Voltage/Capacity V/Ah 12/90 26 Engine Model QC490GP 27 Rated power kw/r.p.m 39/2650 28 Rated torque Nm/r.p.m 157/1980 29 Cylinder amount 4 30 Bore×Stroke mm 90×105 31 Displacement 2.67 32 Fuel tank L 70 33 Transmission 1/1 automatic transmission 34 Working pressure MPa 17.5

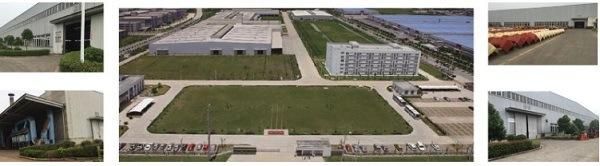

Our Factory Strength
We, SNSC fork lifter factory, are top 3 fork lifter montacargas manufactures and top 20 in the world. with 130,000 square meters production area, over 500 employees,30,000 units forklifter diesel truck production capacity per year,5000 sets export volume.
We are big fork lifter manufacture not small maker. We are responsible for our customers and forklifters.
''QUALITY LEADING THE FUTURE" is our belief for ever.
We'd like to offer our best quality forklift to our customers from all over the world
Shipment Solution of SNSC brand FD35 3.5tons DIESLE MOTOR powered FORKLIFT TRUCK:
Our 3.5ton DIESEL forklift can be delivered by container or ro-ro shipment.
One 20'GP containr can hold 2 units 3.5tons diesel forklifts;
one 40'GP container can hold 4 units 3.5ton diesel engine forklift trucks.
Our professional service for SNSC forklifts to our customers
WARRANTY TIME:
The warranty period for SNSC Forklift is 12 months or 2000 working hours begins from the forklift arrival date of oversea port, depends on which come first.
SPARE PARTS SERVICE:
We have free wearing parts to present you with the forklift.
Warranty period of Spare parts is 6 months, begins from 30 days after shipment.
We are dedicated to provide our clients with spare parts with the highest quality, exact fitness and appropriate function.We have a big original spare parts library that can meet the client's need for all kinds of parts. We guarantee fast deliveries and service, wherever you are.
MAINTENANCE SERVICE
Our products are all well-designed and strictly tested. If any maintenance problem you can not handle, we can also offer training and maintenance services in our factory field or at your site.
Your requirements will be handled promptly and appropriately.

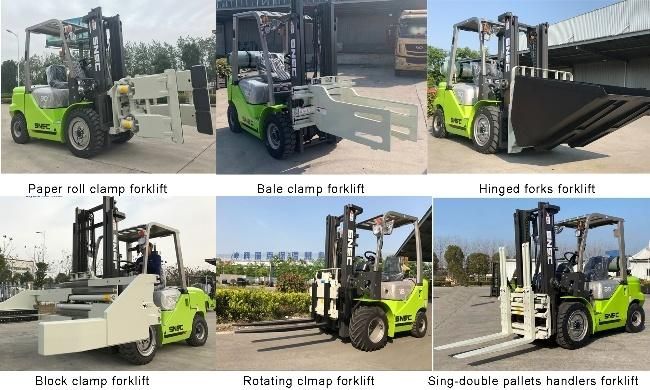

Related SNSC forklift products:
Our SNSC forklifts have different forklift series that can meet our customer's different needs.
1. Counter Balanced Diesel powered forklift truck range from 1.5 to 10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70)
2. Battery powered electric forklift truck range from 1.5 to 3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift trucks range from 1.5 to 3.5 ton;
(FL15, FL18, FL20, FL25, FL30, FL35)
4. warehouse equipments, like electric pallet truck, electric reach truck, electric stacker & electric trailer, scissor lift, double deep electric reach truck, racks.
If you have interests in our 3.5ton diesel forklift, welcome you to contact Mariah Tang
