Chinese 2.0 Ton 2.5 Ton Diesel Forklift with EPA Engine
XIAMEN LTMG CO., LTD.- Cab Location:Adjustable
- Type:Diesel Forklift
- Power:Diesel Engine
- Load Capacity:1T - 5T
- Fuel:Diesel
- Load center:500mm
Base Info
- Model NO.:FD20,25
- Lift height:3000mm
- Condition:New
- Ground Clearance:110mm
- Front Overhang:465mm
- Overall Width:1150mm
- Mast Extended Height(with Backrest):4070mm
- Turning Radius:2310mm
- Transport Package:Nude Packing
- Specification:2000KG,2500KG
- Trademark:LTMG
- Origin:China
- HS Code:8427209000
- Production Capacity:1000,Year
Description

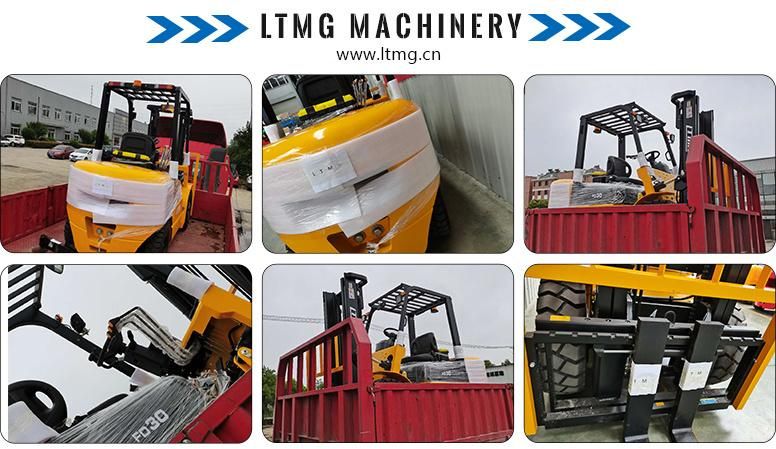

FD20FD25 Performance Power Unit Diesel Diesel Operator Type Driver/seat Driver/seat Rated Capacity kg 2000 2500 Load Center mm 500 500 Max. Lifting Height mm 3000 3000 Mast Tilting Angle (Fwd/Bwd) deg 6/12 6/12 Free Lift Height mm 140 140 Turning Radius mm 2150 2210 Lifting Speed (Loaded/Unloaded) mm/s 560/580 550/580 Lowering Speed (Loaded/Unloaded) mm/s 480/450 490/450 Travelling Speed (Loaded/Unloaded) km/h 20/21 20/21 Max. Gradeability (Loaded) % 21 21 Max. Drawbar Pull (Loaded) n 14 14 Dimensions Overall length (without fork) mm 2570 2590 Overall Width mm 1160 1160 Overhead Guard Height mm 2125 2125 Fork Size (LxWxT) mm 1070x120x40 1070x120x40 Mast Height (Fork lowered) mm 2075 2075 Truck Weight kg 3440 3765 Tyre Size (Front/Rear) 7.00-12-12PR/6.5-9-10PR 7.00-12-12PR/6.5-9-10PR Engine Brand ISUZU XINCHAI ISUZU XINCHAI Model C240 C490 C240 C490 Rated Power kw/rpm 35.4/2500 40/2650 35.4/2500 40/2650 Rated torque n-m/rpm 137.7/1800 160/1600 137.7/1800 160/1600 Number of cylinder 4 4 4 4 Displacement 2.36 2.67 2.36 2.67 Packing&shipping
LTMG Factory
Communication with customers LTMG sales service
LTMG always treat after-sale service as important as sale.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty. Detail clauses and policies please check our website and product certificate.
LTMG Factory
Communication with customers LTMG sales service
LTMG always treat after-sale service as important as sale.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty. Detail clauses and policies please check our website and product certificate.
