• Model NO.：NEW-ES
• Lift height：3000~5000mm
• Condition：New
• Power Souce：AC Motor
• Max. Lifting Height：4000mm
• Min. Lifting Height：1600mm
• Fork Length：1150mm
• Fork Width：160mm
• Model：Es10,Es15
• Power Type：Electric
• Total Weight：610kg
• Rated Capacity：1500kg
• Lift Motor：DC
• Drive Motor：DC
• Controller：Pg
• Turning Radius：1378mm
• Wheelbase：1208mm
• Overall Width：800mm
• Transport Package：International Packing Way with Thick Plastic Film
• Specification：Max. Lifting Height: 4000mm
• Trademark：Noelift
• Origin：China
• HS Code：84271020
• Production Capacity：1000,Year

Manufacturer  NOELIFT Model  ES12M WITH DOUBLE LIFT Load capacity kg 1200load center mm500wheelbase mm1208service weight kg 460-590Tyre type PUTyre size , drive wheel  Ф210*70tyre size , load wheel  Ф80*60Tyre size , balance wheels (x=drive wheel Ф115*55Height mast lowered mm 2150/2185Lift height mm 1600/4000overall lengthmm 1716 / 1623 Overall width mm 800 / 1270fork dimension mm  1150*160 *50AST ,1000*1200 pallet crossways mm 2225Torning radius  1378Controller  PG/CURTIR Parking brake  electrimagneticBattery Voltage / capacity V/ah24/80    24/100

Main Features

1: Smart body, with attractive appearance. High-strength frame designed for tough pallet handling tasks.
2: Lower consumption, Lower service cost, while higher performance.
3: 24V/65AH(80AH optional) maintenance free battery contributes to strong power and easier operation.
4: Compact structure and reasonable layouts provides steadiness and durability during operation.

Details:

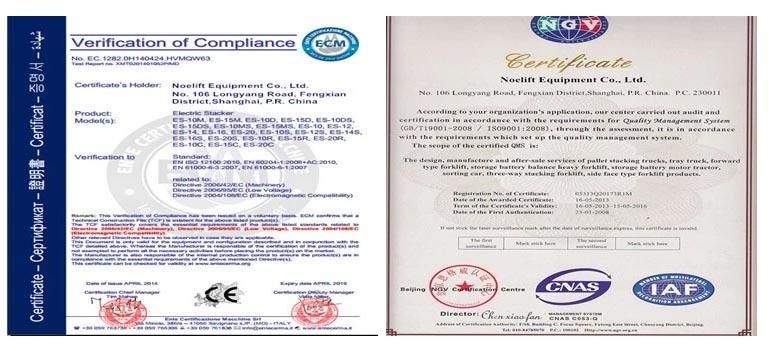

Certifications

Our Service

NOELIFT service cover the whole life of the machine you purchase.When you first inquire our machine,we provide the full data and information to make sure this is the best choice for you.When the machine deliver to you,we will have professional maintenance advice and service manual to help you keep the machine under very good operation condition.Even if the machine have problem,we have a full time service system to make sure no deplay happen and minimize the downtime and maximize the machine efficiency.
