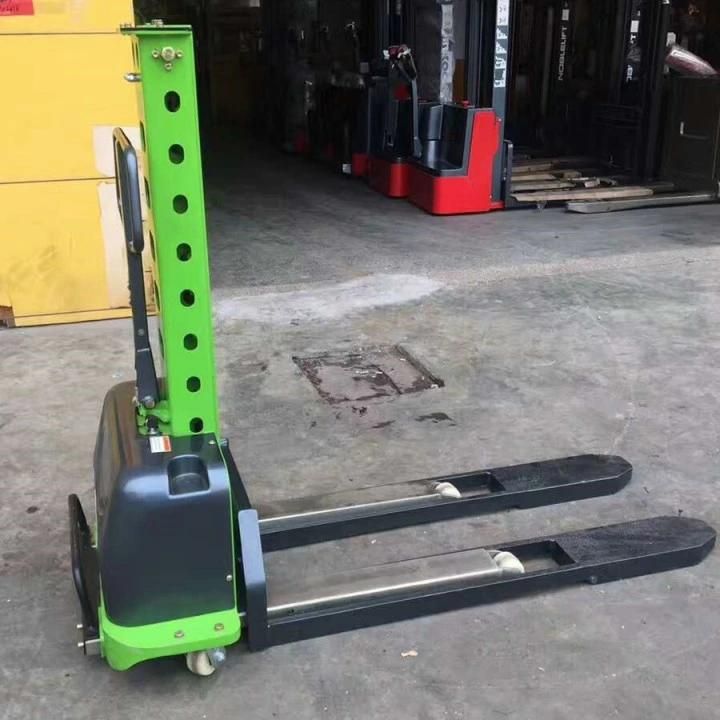

Simple Operated Self Loading Semi Electric Stacker 500kg with 1200mm Lifting Height

Hangzhou Noelift Equipment Co., Ltd.
  • After-sales Service:Yes
  • Warranty:1 Year
  • Cab Location:Without
  • Type:Stacker
  • Power:DC
  • Load Capacity:500kg

Base Info

  • Model NO.:CDD05Z
  • Fuel:Semi Electric
  • Load center:500mm
  • Lift height:800-1300mm
  • Condition:New
  • Battery:12V,45ah
  • Charger:Included
  • Tire:PU
  • Fork Length:1150mm
  • Transport Package:Export Packing
  • Specification:Overall Dimensions: 2720*1225*2080mm
  • Trademark:Noelift
  • Origin:China
  • HS Code:84271020
  • Production Capacity:1000 Units,Month

Description

1Manufacturer Noelift2Model CDD05Z3Operation Manual Driving, Electrical Lifting4Capacitykg5005Weightkg1932002196Lift Heightmm800100013007Height in Lowered Positionmm1200140016008Overall lengthmm16009Overall widthmm78610Fork Lengthmm125011Fork Widthmm54012Material of Wheels Polyurethane13Steering wheel size 100x4514Loading wheel size 70x6015Motor Power Liftingkw0.716BatteryV/Ah12/4517Charger  Included18Brake Type Mechanical19Lifting speedmm/s8020Descend speedmm/s9021Turning radiusmm110012001200
PACKING DETAILS
Simple Operated Self Loading Semi Electric Stacker 500kg with 1200mm Lifting Height

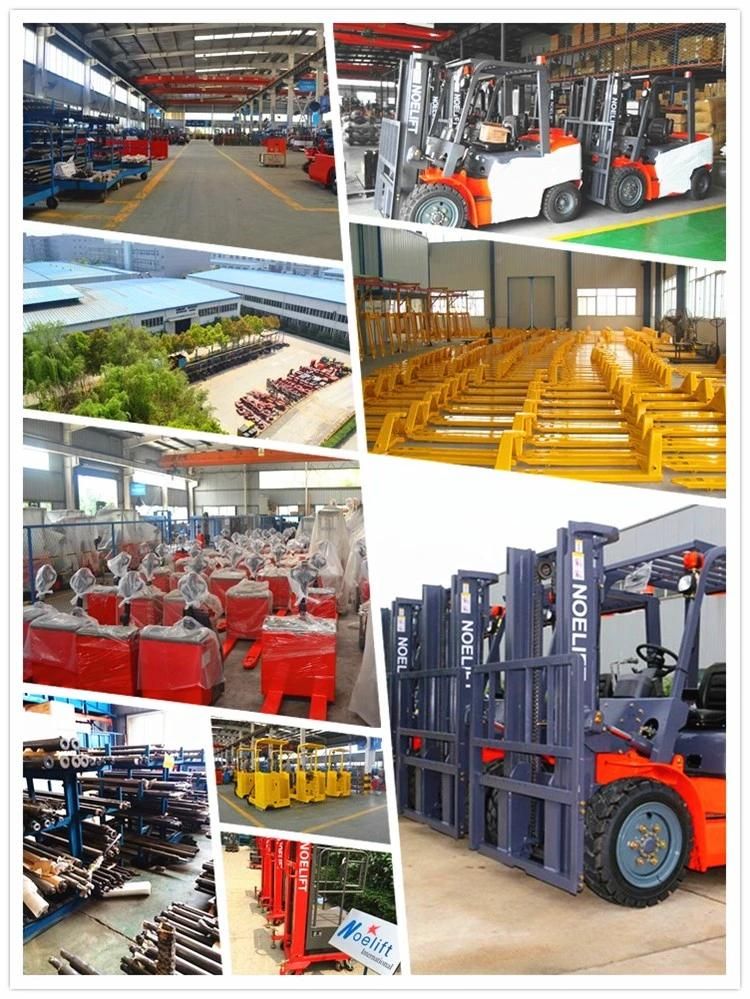

FACTORY

NOELIFT EQUIPMENT CO.,LTD, as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1 to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompassess close to 100 different models.

 We have invested two industrial base in Hefei city and Luan city of anhui province and zhejiang province with covering an area of 97,000 square meters and more than 410 employees and 190 millions U.S.Dollars of total assets.  we have annual production output capacity 4,980 units forklifts and 7,580 units warehouse equipments. The company have advance producing equipment with automatic painting line, vehicle assembly line, CNC flame plasma cutting machine, drilling machines,  system intergrated coating equipment, as well as international advanced performance testing of production line, which all are fully guanranteed our products quality and ensure the business growth.
